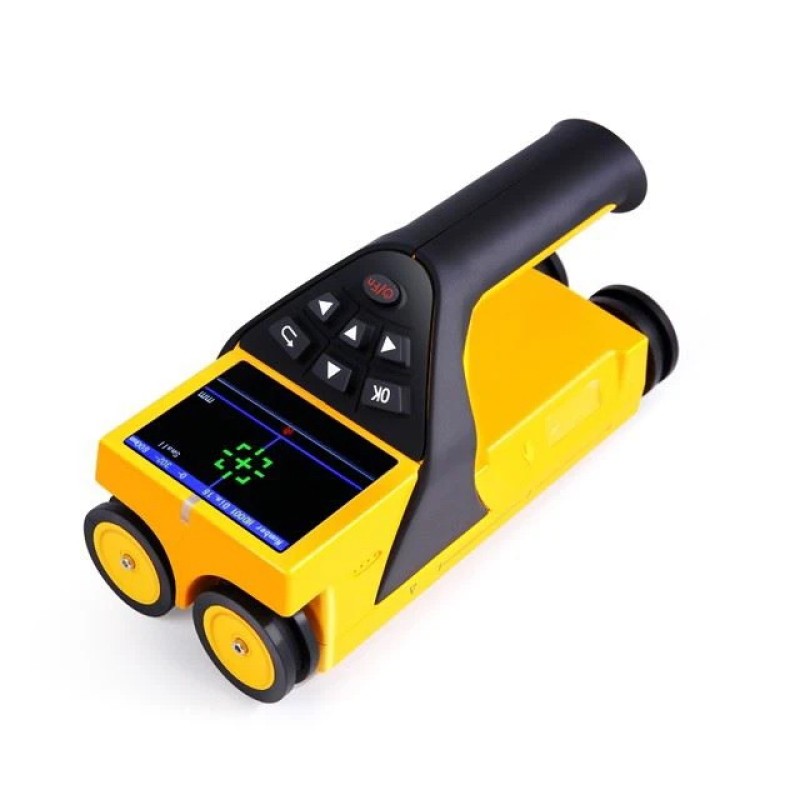

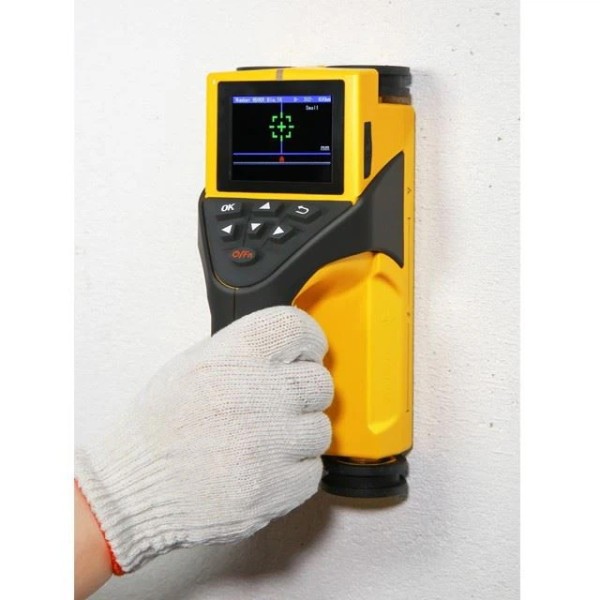

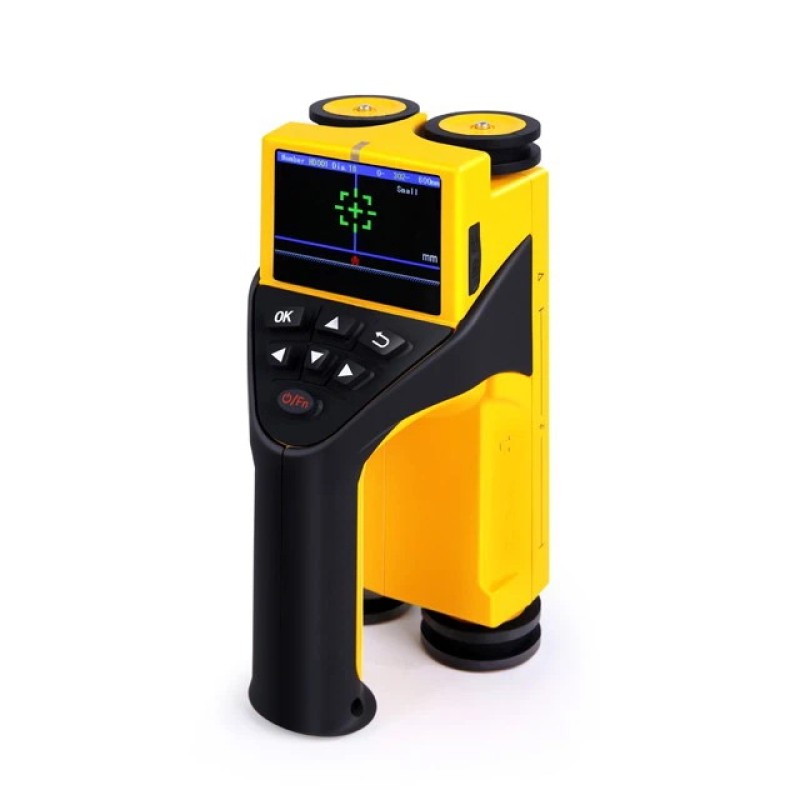

Covermeter, Integrated Rebar Detector

Application:

ZD310 Integrated Rebar detectors are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing, and the diameter of the rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed; the integrated structure of the host and the sensor coil makes it convenient and quick when carrying and field operation; It is characterized by coil structure design, faster speed, higher accuracy, stronger resolution.

Main Functions:

• Accurately measure the thickness of the protective layer of rebar;
• Locate the position, trend, and distribution of steel bars;
• Measure the protective layer of the steel bar and estimate the.

Main Features:

• 2.8-inch high-resolution color LCD screen (320 x 240 pixels), whether indoor or outdoors, any situation can be clearly visible detection data;
• Multi-coil structure design, faster, higher precision, stronger resolution;
• Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.
• With a built-in high-capacity lithium battery, the power consumption is low, in the case of the battery is full the standby time is about 16 hours;
• Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar measuring point data;
• The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;
• Select configuration Standard test block which can be configured with special and unique design;
• Using the host and sensor coil integrated design, compact size, lightweight, easy to carry;
• Adjacent steel bar intermediate position real-time judgment, indicating light promptly, can avoid around the steel bar, easy drilling coring;
• The instrument bag is shockproof, has a protective lining inside, and is equipped with a waterproof cover for easy carrying;;
• Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing and generating the complete report on a PC.
