Sieve, Test sieves - Woven Wire Mesh

  • Product Code: Test_Sieves _Woven_Wire-Mesh

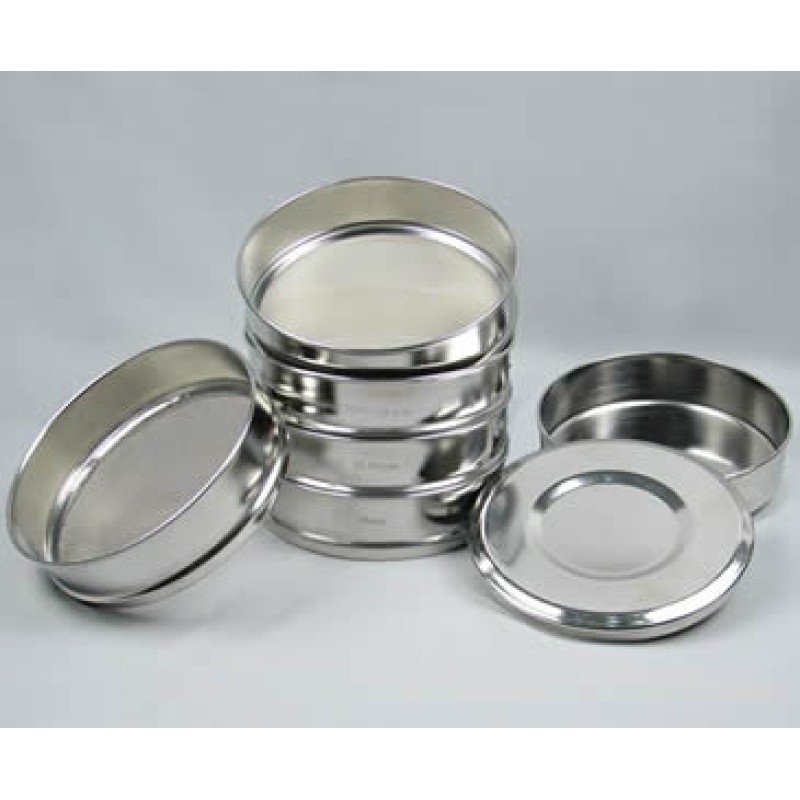

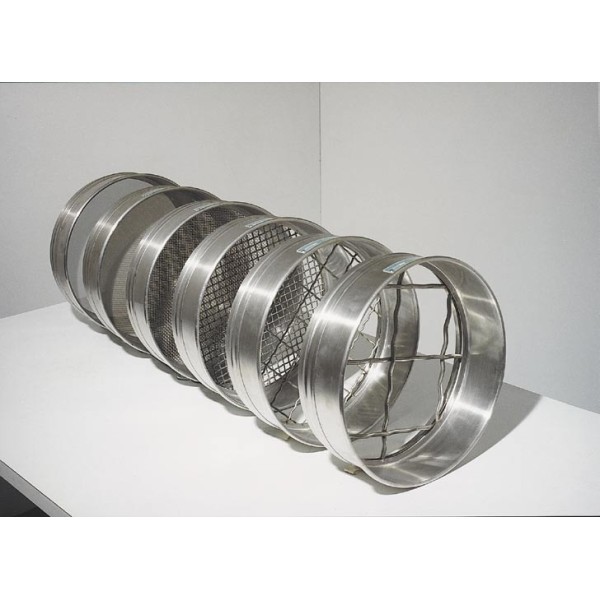

Sieve, Test sieves - Woven Wire Mesh
Sieve, Test sieves - Woven Wire Mesh Sieve, Test sieves - Woven Wire Mesh

AG035 - AG038 Test sieves

Stainless steel is woven wire Ø 200-300-400-400 mm

STANDARDS: EN 933-1, EN 933-2, EN 12697-1, EN 12697-39, ISO 3310-1, ASTM E11, BS 410, DIN 4187-1, NF X11-504

Product Categories AGGREGATES (177) ROCK MECHANICS (33) ASPHALT/BITUMINOUS MIXTURE (110) BITUMEN (64) CONCRETE (161) CEMENT - MORTAR (104) CERAMIC (35) SOIL (140) SOIL MECHANICS (50) METALS (33) PLASTICS (32) RUBBER (18) TEXTILE - FABRIC - YARN (28) NON-WOVEN FABRIC (2) CARBOARD - PAPER & PACKING (38) FILM (6) PAINT AND COATING (2) INSULATOR (24) FURNITURE (6) MINING (54) FOOD (30) TABLET PRESS (2) HEALTHCARE (313) DEFENSE WARFARE (3) GENERAL EQUIPMENT (654)
Aperture  ASTM Frame Dia Frame Dia Frame Dia Frame Dia
Size No. 200 mm Ø 300 mm Ø 400 mm Ø 450 mm Ø
mikron
5   AG035-01 AG036-01 AG037-01 AG038-01
10   AG035-02 AG036-02 AG037-02 AG038-02
16   AG035-03 AG036-03 AG037-03 AG038-03
20 635 AG035-04 AG036-04 AG037-04 AG038-04
25 500 AG035-05 AG036-05 AG037-05 AG038-05
32 450 AG035-06 AG036-06 AG037-06 AG038-06
36   AG035-07 AG036-07 AG037-07 AG038-07
38 400 AG035-08 AG036-08 AG037-08 AG038-08
40   AG035-09 AG036-09 AG037-09 AG038-09
45 325 AG035-10 AG036-10 AG037-10 AG038-10
50   AG035-11 AG036-11 AG037-11 AG038-11
53 270 AG035-12 AG036-12 AG037-12 AG038-12
56   AG035-13 AG036-13 AG037-13 AG038-13
63 230 AG035-14 AG036-14 AG037-14 AG038-14
71   AG035-15 AG036-15 AG037-15 AG038-15
75 200 AG035-16 AG036-16 AG037-16 AG038-16
80   AG035-17 AG036-17 AG037-17 AG038-17
90 170 AG035-18 AG036-18 AG037-18 AG038-18
100   AG035-19 AG036-19 AG037-19 AG038-19
106 140 AG035-20 AG036-20 AG037-20 AG038-20
112   AG035-21 AG036-21 AG037-21 AG038-21
125 120 AG035-22 AG036-22 AG037-22 AG038-22
140   AG035-23 AG036-23 AG037-23 AG038-23
150 100 AG035-24 AG036-24 AG037-24 AG038-24
160   AG035-25 AG036-25 AG037-25 AG038-25
180 80 AG035-26 AG036-26 AG037-26 AG038-26
200   AG035-27 AG036-27 AG037-27 AG038-27
212 70 AG035-28 AG036-28 AG037-28 AG038-28
224   AG035-29 AG036-29 AG037-29 AG038-29
250 60 AG035-30 AG036-30 AG037-30 AG038-30
280   AG035-31 AG036-31 AG037-31 AG038-31
300 50 AG035-32 AG036-32 AG037-32 AG038-32
315   AG035-33 AG036-33 AG037-33 AG038-33
355 45 AG035-34 AG036-34 AG037-34 AG038-34
400   AG035-35 AG036-35 AG037-35 AG038-35
425 40 AG035-36 AG036-36 AG037-36 AG038-36
450   AG035-37 AG036-37 AG037-37 AG038-37
