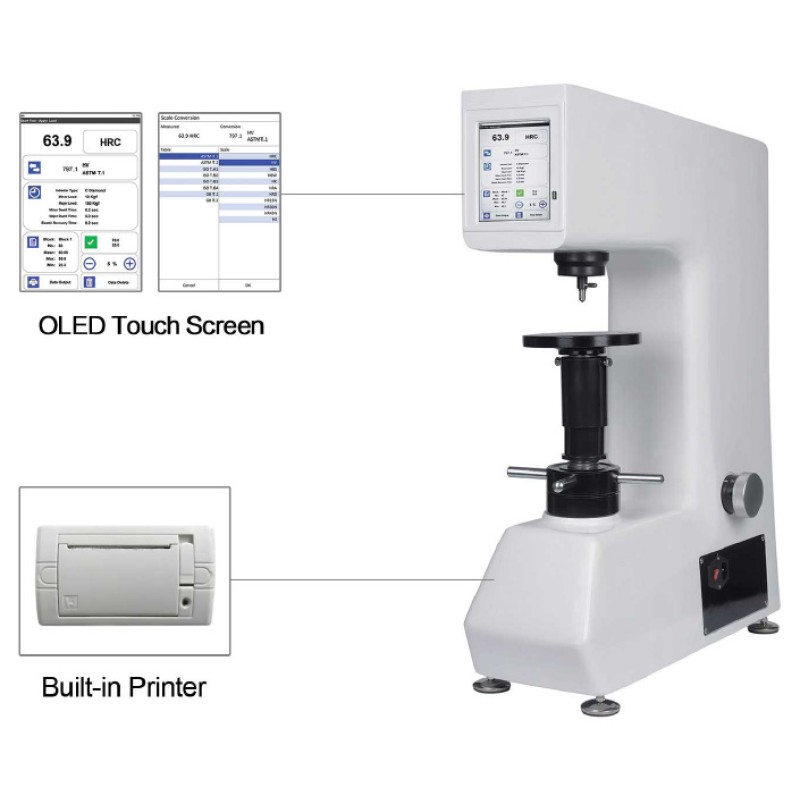

Touch Screen Rockwell Hardness Tester

  • Product Code: LH RS-150 (Touch Screen)
Touch Screen Rockwell Hardness Tester
Touch Screen Rockwell Hardness Tester Touch Screen Rockwell Hardness Tester Touch Screen Rockwell Hardness Tester Touch Screen Rockwell Hardness Tester Touch Screen Rockwell Hardness Tester Touch Screen Rockwell Hardness Tester

Main Features

• Traditional weight system

• Digital, multi-function OLED Touch Screen

• Electric load. Automatic loading & unloading

• 12 Rockwell Scales, Conversion to Vickers, Brinell

• Meets or exceeds GB/T230.2, ISO 6508-2 ASTM E18 standards

• Optional Accessories for Plastic Rockwell test

• PC connectivity & Built-in printer for data output



Application Fields

• Industrial production, Inspection of product quality on processing technology.

• Test the hardness of ferrous and nonferrous metals, such as Hardened steel, tempered steel, annealed steel, carbide materials, Aluminum alloy, copper, hearing steel, etc

Technical Specifications
Hardness measuring range HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL50-115 HRM:50-115 HRR:50-115
Preliminary Testing force 10kgf (98.07N)
Testing force 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Resolution 0.1 HR
Duration time 0-60s
Data output Built-in Printer, RS232
Max Height of Specimen 170mm
Distance of Indenter to outer vvall 165mm
Power supply AC220V+5%, 50-60HZ
Overall Dimension (mm) 520*240*700mm
Net weight About 80Kg

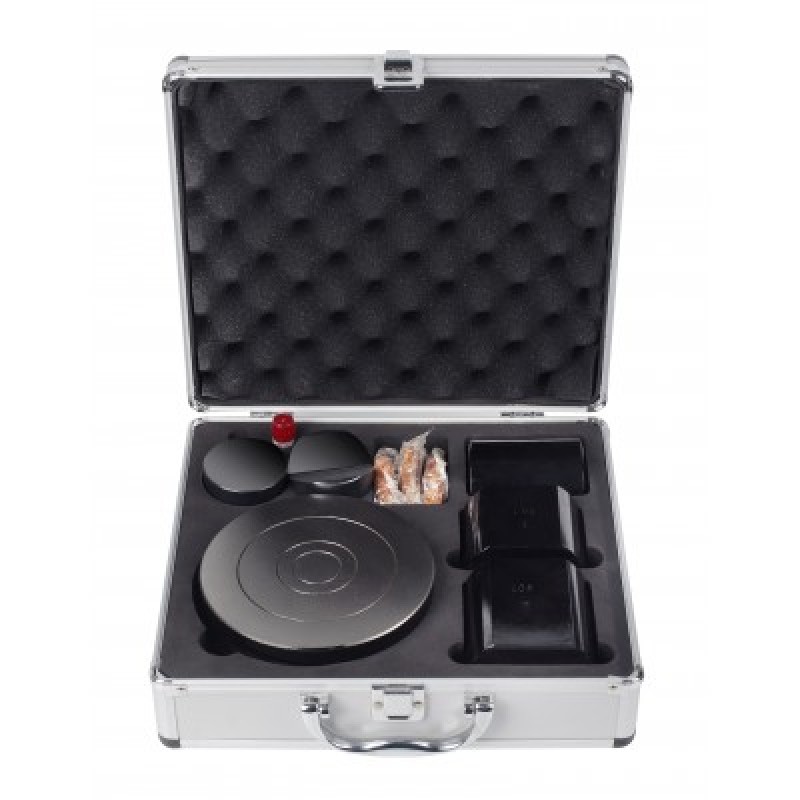

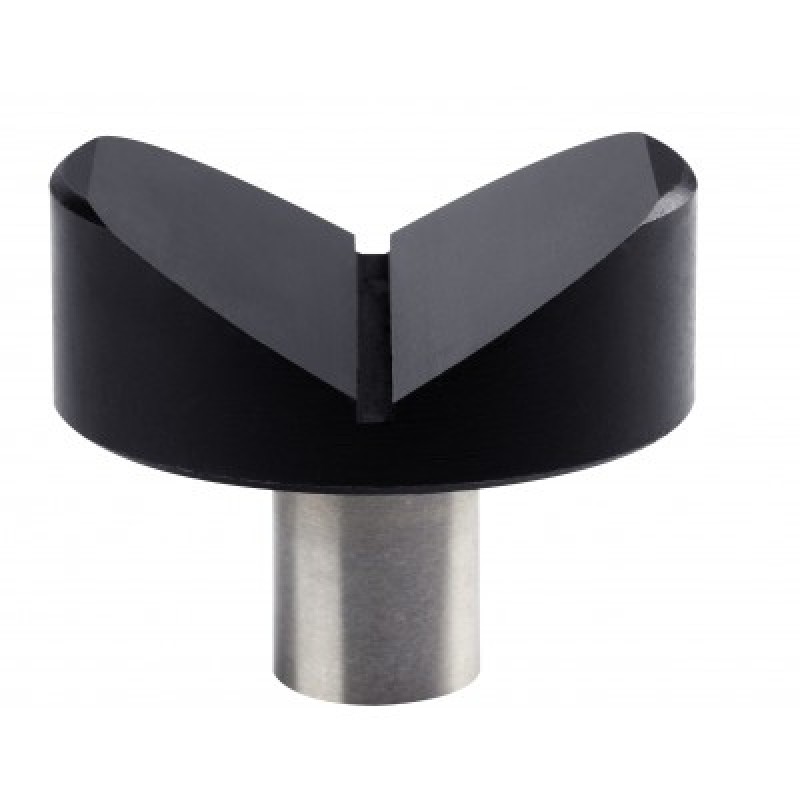

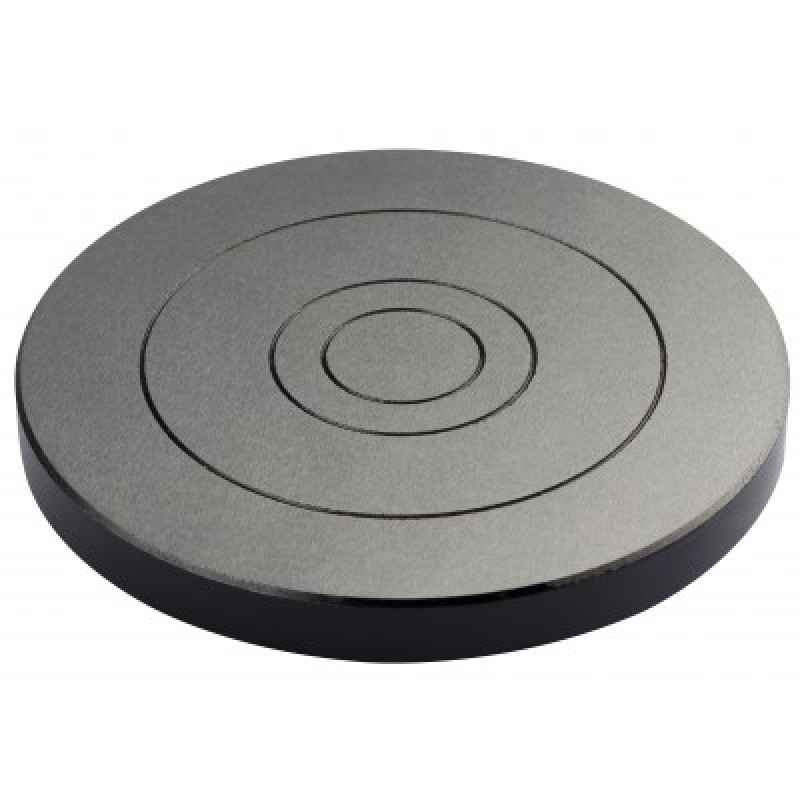

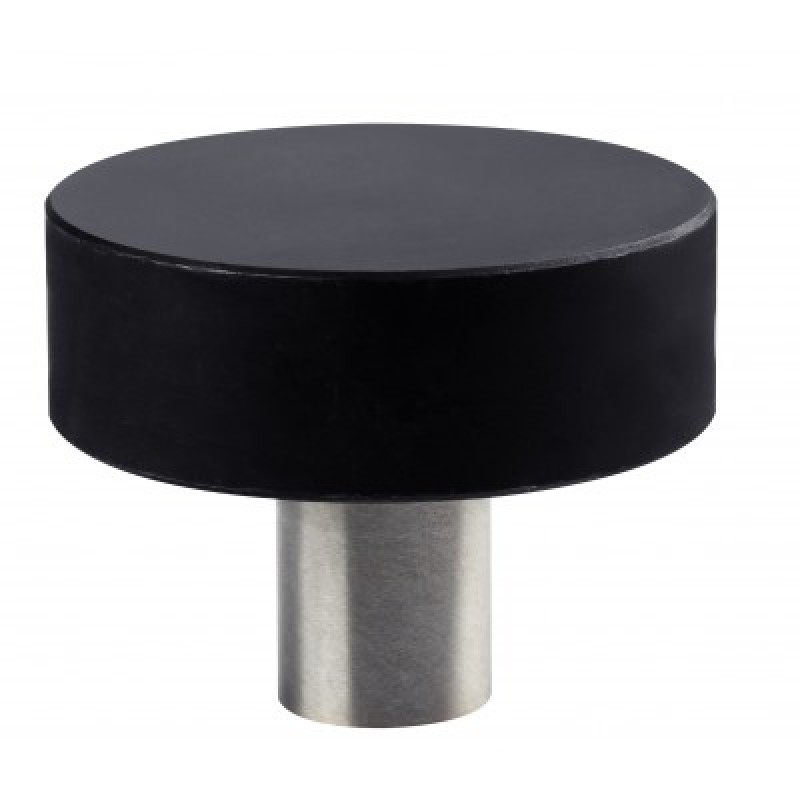

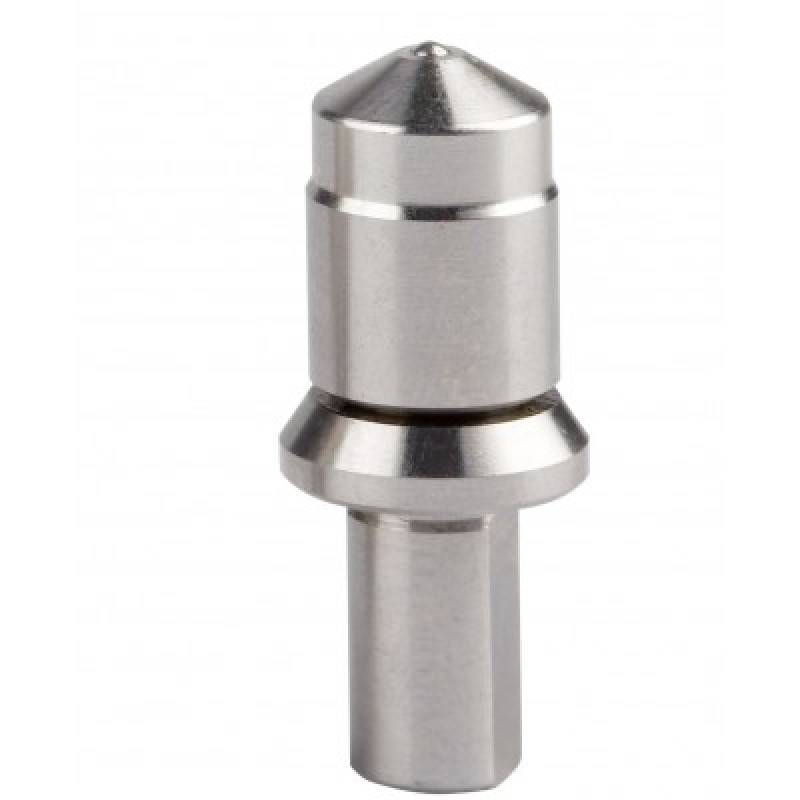

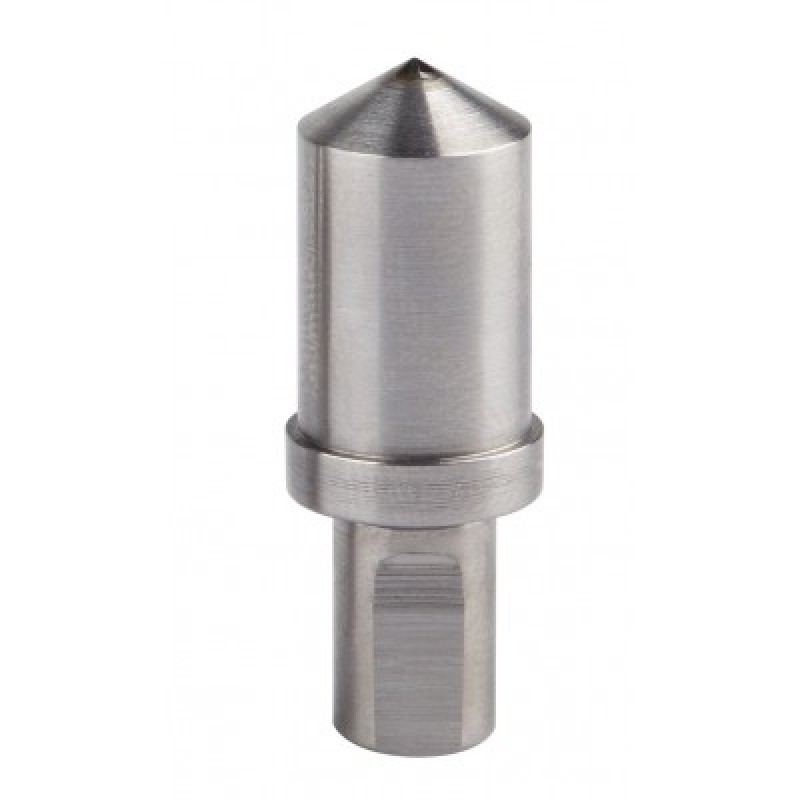

Standard Accessories Indenter*2, Hardness Block*3, Testinoplatform*3, Weights*3, Power Cable *1, RS232 Cable *1 Paper of printer* 1, Manual, CertificateTGuaranty card
