Presses from 10 up to 225 T

  • Product Code: Ceramic_Presses
Presses from 10 up to 225 T
Presses from 10 up to 225 T Presses from 10 up to 225 T Presses from 10 up to 225 T

DESCRIPTION

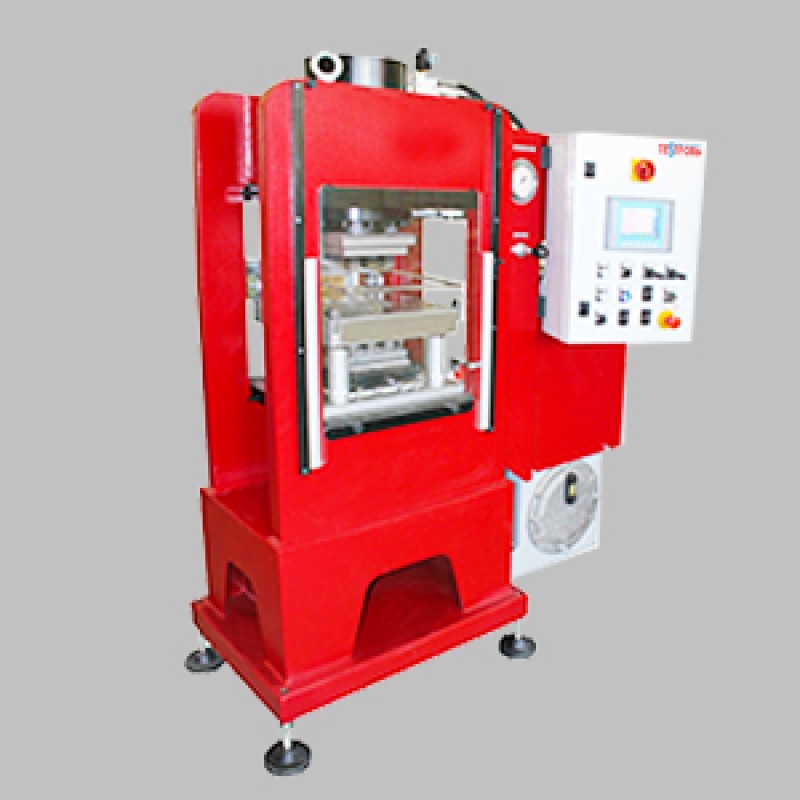

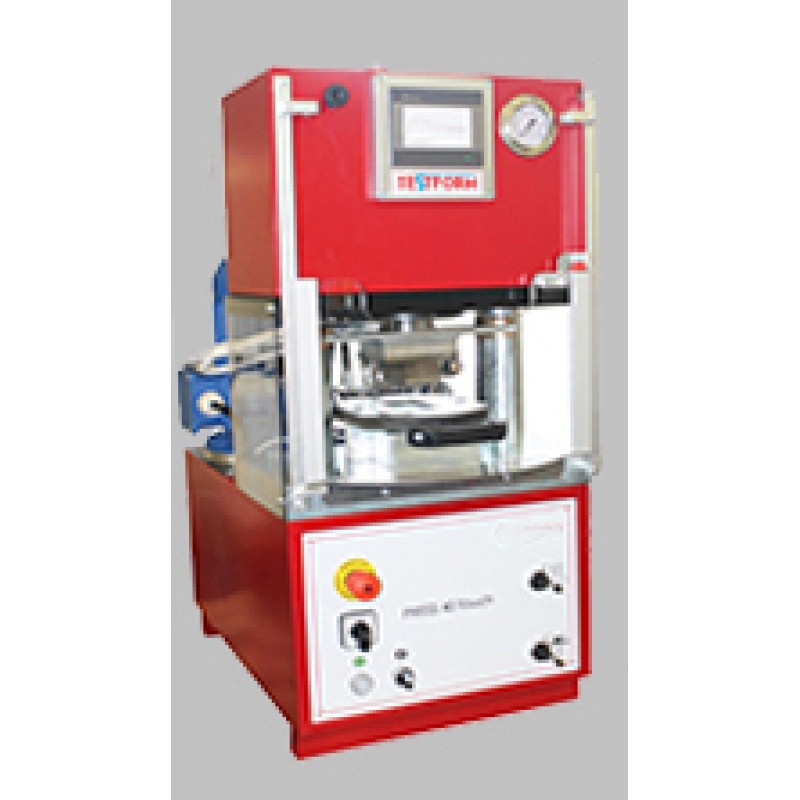

Hydraulic press for laboratory tests or small special production quantity.

Manufactured in five different version 10, 30, 70, 110, 225 t maximum load designed to pressure mould ceramic object, tiles, test specimens, refractories, bricks etc.

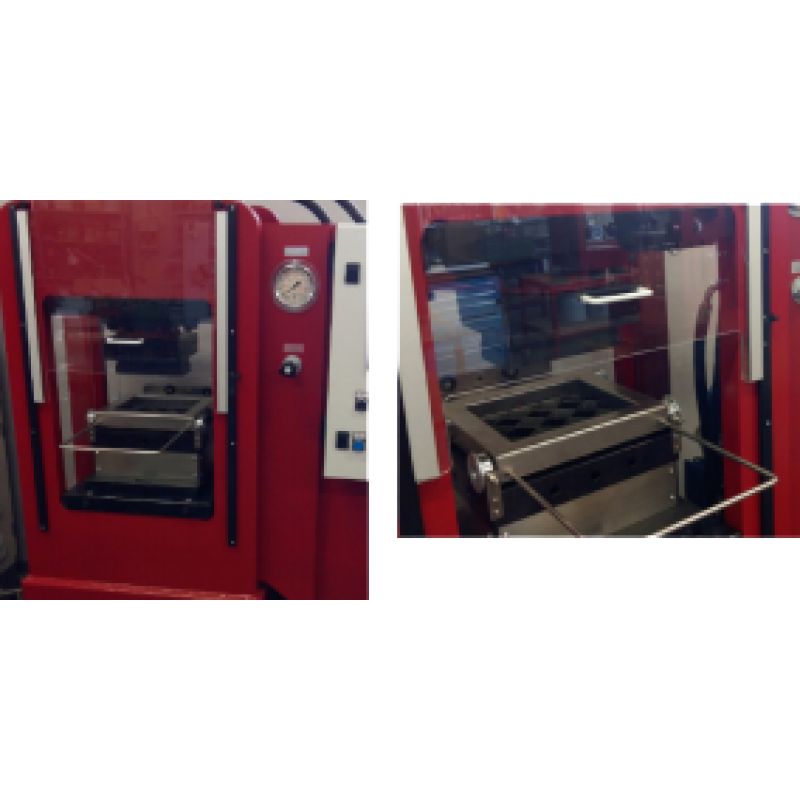

The mould is interchangeable and can be our standard or on customer’s request according to the dimensions indicated below.

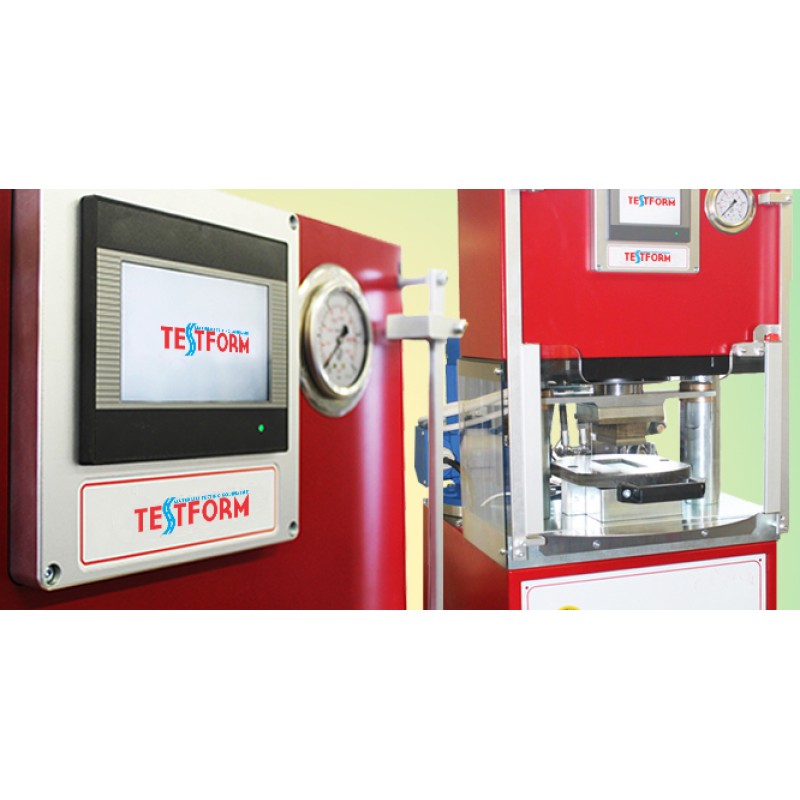

Pressure can be adjusted automatic via microprocessor electronic control to do pressing cycles with two pre-pressing stages and a final pressing stage.

MODELS

CODE MAX FORCE CYLINDER MAX PRESSURE OVERALL DIMENSIONS POWER WEIGHT
CER0780 30 T 0 220 mm 210 Bar 450x310x985 mm 4 kW 170 kg
CER2074 40 T 0 220 mm 210 Bar 510x710x900 4 kW 235 kg
CER1732 80 T 0 220 mm 210 Bar 1471x717x1786 mm 4 kW 1050 kg
CER1734 120 T 0 220 mm 318 Bar 1471x717x1786 mm 4 Kw 1100 kg
CER0787 225 T 0 300 mm 318 Bar 1550x800x1900 mm 5,5 kW 2300 kg


ACCESSORIES AND SPARE PARTS FO 30 T
CODE MODEL
CER0762 Steel mould 0 30 mm
CER0763 Steel mould 0 40 mm
CER0764 Steel mould 0 50 mm
CER0765 Steel mould 40x80 mm
CER0766 Steel mould 50x100 mm
CER0781 Steel mould 55x110 mm

ACCESSORIES AND SPARE PARTS FO 40 T
CODE MODEL
CER0763 Steel mould 0 40 mm
CER0764 Steel mould 0 50 mm
CER0765 Steel mould 40x80 mm
CER0766 Steel mould 50x100 mm
CER0781 Steel mould 0 55x110 mm
CER1730 Steel mould 0 30x100 mm
CER1335 Steel mould 0 50 mm 2 cavities

ACCESSORIES AND SPARE PARTS 80 T - 225 T
CODE MODEL
CER0789 Mould 100x100 with two cavities
CER0790 Mould 100x200 mm one cavity
CER0791 Mould 200x200 mm one cavity
CER0793 Semi-automatic powder feeder system
CER0794 Automatic powder feeder system
CER2035 Manual powder feeder
