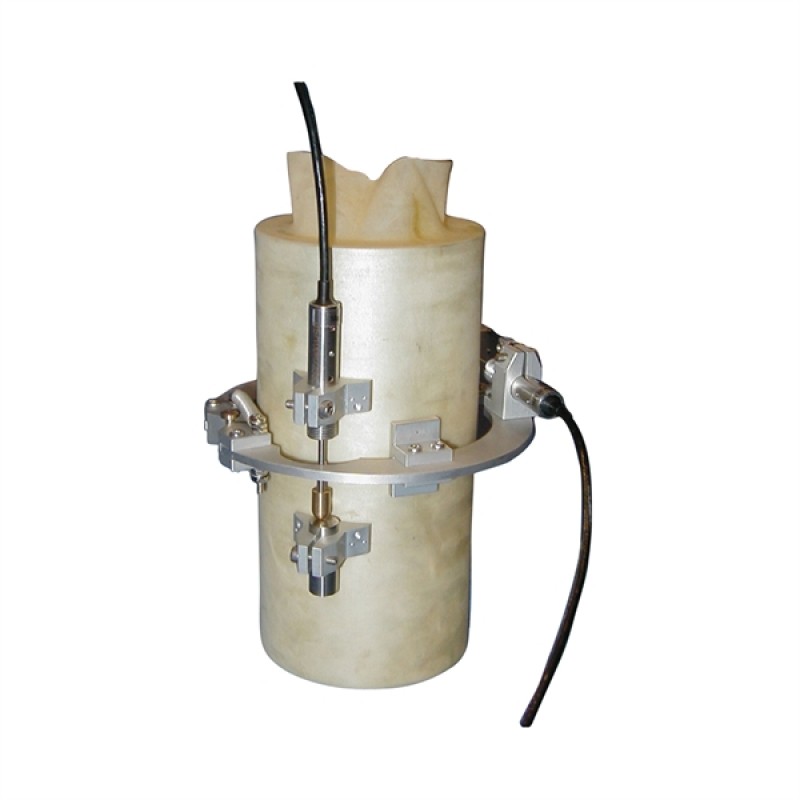

LVDT Local Strain Transducers

The GDS LVDT Local Strain Transducers provide on-sample small strain measurements of axial and radial strain.

Accurate determination of soil stiffness is difficult to achieve in routine laboratory testing.

Conventionally, stiffness of a triaxial test specimen is based on external measurements of displacement which include a number of extraneous movements.

True soil strains can be masked by deflections which originate in the compliances of the loading system and load measuring system.

Such equipment compliance errors add to a variety of sample bedding effects to give a poor definition of the stress-strain behavior of the material under test, particularly over the small strain range.

Most triaxial tests, therefore, tend to give apparent soil stiffnesses far lower than those inferred from field behavior (Jardine, Symes & Burland, 1984).
