Load Cells - External, S-Beam

  • Product Code: S-Beam
Load Cells - External, S-Beam

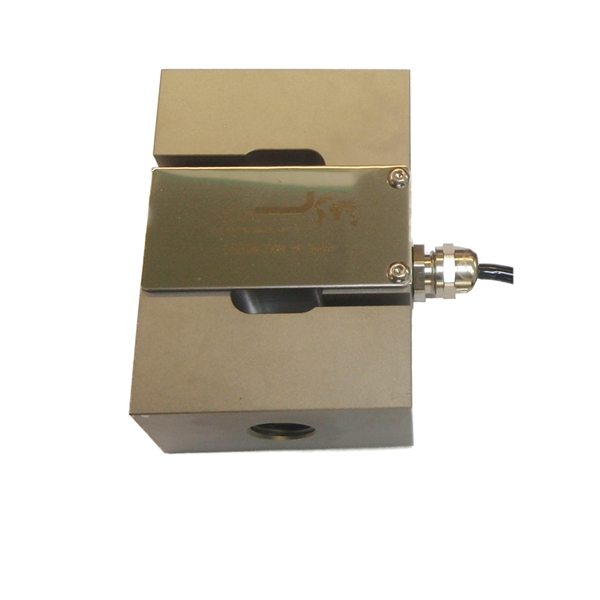

The S-Beam load cells are designed for force measurement and weighing applications alike. Non-submersible, these load cells are used outside of the triaxial cell between the top of the triaxial cell and the reaction bar of the load frame.

Technical Specification
Axial Force Accuracy <0.15% FSO
Load Range (kN) 0.1 kN to 1000kN (typical sizes 1kN, 2kN, 5kN, 10kN, 25kN, 50kN, 100kN, 250kN).


Rated Capacity  Length(L)  Width (W)  Wl  Height (H)  Weight  Deflection  Rated Output  Material Thread (T)
(kN) (mm) (mm) (mm) (mm) (kg) (mm) (mV/V)
0.01 48 12.7 20 60 0.085 0.55 2.7 nominal Aluminium M8x 1.25
0.02 48 12.7 20 60 0.085 0.58 2.7 nominal Aluminium M8x 1.25
0.05 48 12.7 20 60 0.085 0.51 2.7 nominal Aluminium M8x 1.25
0.10 48 12.7 20 60 0.085 0.41 2.7 nominal Aluminium M8x 1.25
0.25 48 12.7 20 60 0.085 0.36 2.7 nominal Aluminium M8x 1.25
0.50 48 18 25 70 0.14 0.41 2.7 nominal Aluminium M8x 1.25
1 48 18 25 70 0.14 0.41 2.7 nominal Aluminium M8x 1.25
2.5 48 18 25 70 0.33 0.41 2.7 nominal Stainless Steel M8x 1.25
5 48 30 37 75 0.56 0.41 2.7 nominal Stainless Steel M8x 1.75
10 48 30 37 75 0.58 0.56 2.7 nominal Stainless Steel M8x 1.75
25 63 38 38 90 1.33 0.33 2.7 nominal Stainless Steel M8 X 2.00
50 63 38 38 90 1.35 0.43 2.7 nominal Stainless Steel M8 X 2.00
100 145 55 N/A 145 6 0.16 2.7 nominal Stainless Steel M8 X 2.00
200 190 75 N/A 190 25 0.16 2.0 nominal Stainless Steel M45 X 3.0
300 190 75 N/A 190 25 0.16 2.0 nominal Stainless Steel M45 X 3.0
