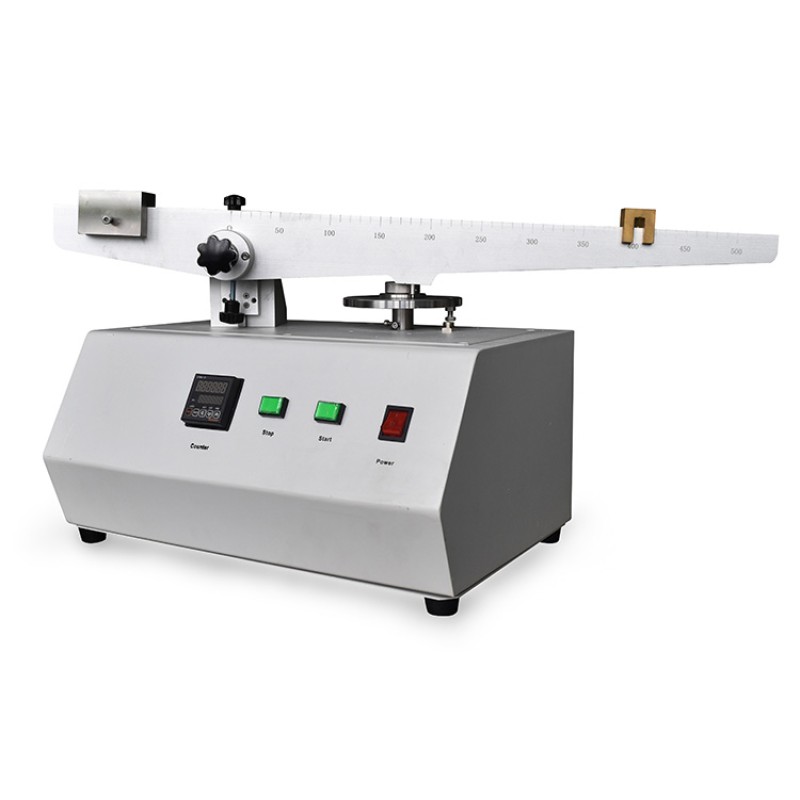

Scratch/Shear Tester
- Product Code: Scratch_Shear_Tester
Introduction:
The Taber scratch/hardness testers for plastic and the textile scratch test is
suitable for the scratch-resistant test of the decorative wood-based panels,
with the rotation of the specimen under a certain load of the diamond needle,
the test piece surface finishing layer scratch ability.
Application:
Scratch tester used for a
variety of automotive interior materials, such as plastics, rubber, leather,
fabric, coating materials, coating materials and other non-composite materials
such as scratch resistance detection.
Standards:
ASTM C217, L-T-751, EN 438,
EN 13310, ISO 4586-2, and TERRAZZO 90322-9E-1
Operation process:
Before loading For the
sample, you need to adjust the Weighing bar to the appropriate height firstly
according to the sample thickness. The precision cutting tool is installed on
the Weighing bar and placed on the sample. After the start of the instrument,
the turntable was rotated at a constant speed to ensure accurate measurement
results. By changing the load on the cutting tool, you can evaluate the
shear-resistant or scratch-resistant performance of the material.

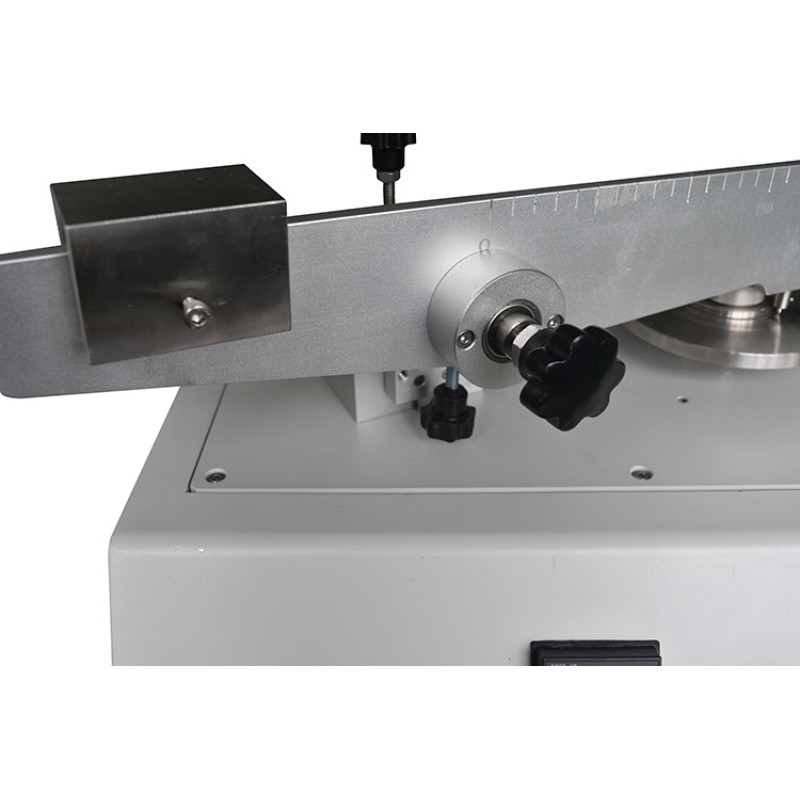

The instrument's Weighing
pole design allows it to level with the sample and turntable and can be raised
or lowered according to the actual needs. In addition, the Weighing pole can
also be lifted in the air to facilitate the operator to remove the sample. By
changing the position of the sliding balancing weight, the total load on the
sample can be adjusted in the range of 0-1000 g. Cutting tools can be chosen
using tungsten carbide tools or a circle conical diamond head. Visually judging
the test results with the randomly-equipped 10 times magnifier, the user can
also use a high-precision optical microscope to observe.
Specifications:
1.
The
travel range: 10-200mm;
2.
Speed
range: 10-200mm / s;
3.
Speed
Buffer: 10 ± 1mm;
4.
The
metal scraper head diameter: 0.5mm, 0.75mm, 1mm (Erichsen318), 3mm, 5mm, 7mm;
5.
The
metal scraper head material: tungsten carbide;
6.
Pressurized
weight and scraping components total weight: 2N, 3N, 5N, 7N, 8N, 10N, 12N, 15N,
20N (optionally with option) mass error does not exceed 1%;
7.
Plastic
scraper means polymethyl methacrylate (PMMA);
a.
Diameter
16mm thickness of 1mm;
b.
Scraping
means is an edge radius of 0.5mm;
c.
Hardness
shore D85.
d.
Power:
AC220V ± 10%, 50Hz.
Technical Parameters: | |
Items | Parameters |
Loads | 10±0.1N |
Speed | 0.5-1 r / min, test bench 360 ° can be transferred |
Maximum the thickness of the sample | 20mm |
Sample dish diameter | 122mm |
Scratch diameter | Maximum 120mm (adjustable) |
Scratch test head | ¢2.15mm |
Counter LCD liquid crystal display | 0~999,999 |
Power supply | AC220V 50Hz 2A |
