Ageing cabinet

Description

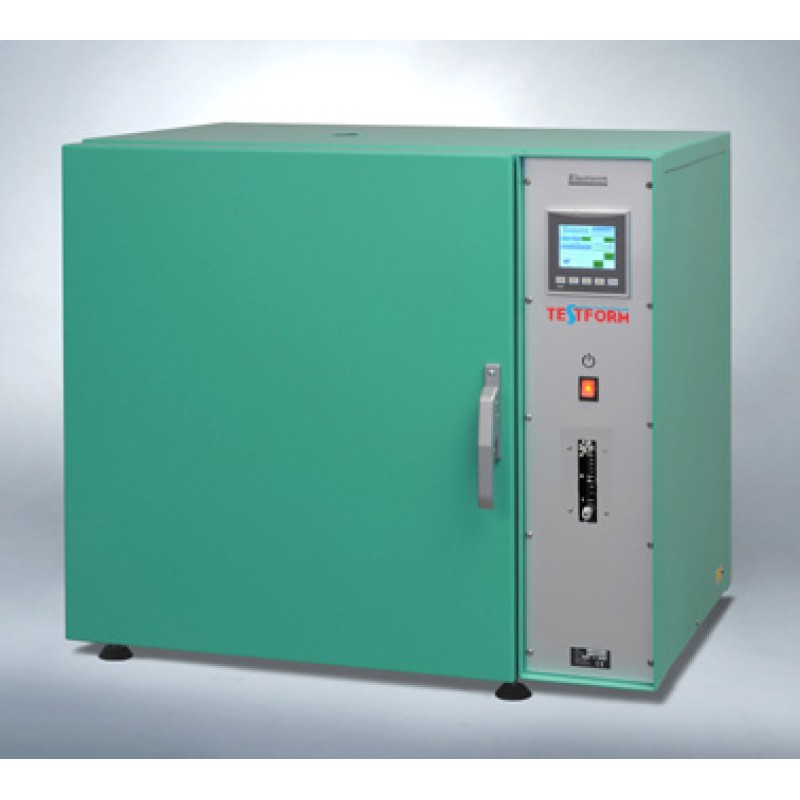

EB 04-II is a cabinet oven for precision ageing of rubber and plastic materials under controlled conditions. This cabinet oven has excellent temperature stability and distribution, achieved by using an inner chamber with a controlled air flow.

These ovens are ideal for ageing finished products and large test pieces which are unsuitable for cell ovens. Both shelves and rods are supplied with these ovens for accommodating most types of samples. The settings are done on the colour touch PLC screen.

EB 04-II requires external air and has a flow meter, which can be set between 3 to 20 changes per hour. We can also offer a silent air compressor, EA 01, as an accessory.

The cabinet can also be equipped with a four pane glass window and lamp illuminating the inner chamber, as well as an individual system with alarm, for controlling the temperature.

Improvements

Micro PLC control

Improved insulation for lower energy consumption, which means lower environment stress and costs

Improved door sealing

Option with window is now 4 glass window

Lower surface temperature

Settings are done on the colour touch screen

Alarm history

Countdown timer

Test name can be given

Easier shelf installation and removal

Standards

Comply to standards: ISO 188, ISO 3383, IEC 811 and other technically equivalent standards.

Temperature range

 + 40 °C to + 200 °C (EB 04-II)
 + 40 °C to + 300 °C (EB 04-IIHT)

Sizes

2 sizes are availble, 60 liter and 120 liter (inner volume)

Features

Temperature variation in time ± 0,25 °C

Temperature variation in space ± 0,5 %

Controlled air exchange rate and low air speed

The oven is controlled from a PLC (with a colour touch screen)

Temperature indicator in the inner chamber

Temperature controller with 0,1 °C set point

Adjustable over and under temperature limits with alarm (PLC)

Alarm for low air pressure (PLC)

Indication of power failure (PLC)

Run-time meter (PLC)

Count down timer (PLC)

Cooling channels in the casing for low surface temperature

Optional accessories

EB 04-IIW – four pane glass window and lamp illuminating the inner chamber (for EB 04-II, EB 10-II and EB 12-II).

EB 04-IIDS – door sensor that turns off fan and heating when the door is opened (for EB 04-II, EB 10-II and EB 12-II).
EB 04IIHP – Extra heating element for size 120 l only of both EB 04-II and EB 10-II
EB 04IIHTSE – Extra Pt 100 for EB 04-II and EB 10-II
EA 01 – Silent air compressor, 115 l/min
EB 04.02-60 and EB 04.02-120 Extra shelves for 60 l and 120 l oven, both for EB 04-II and EB 10-II
EB 04-AP – Access Port.
EB-P – ramp function for temperature setting in the PLC.
EC 11 – monitoring software.
ED 04 – computer, PC.
ED 06 – UPS 1000 VA double converter.
