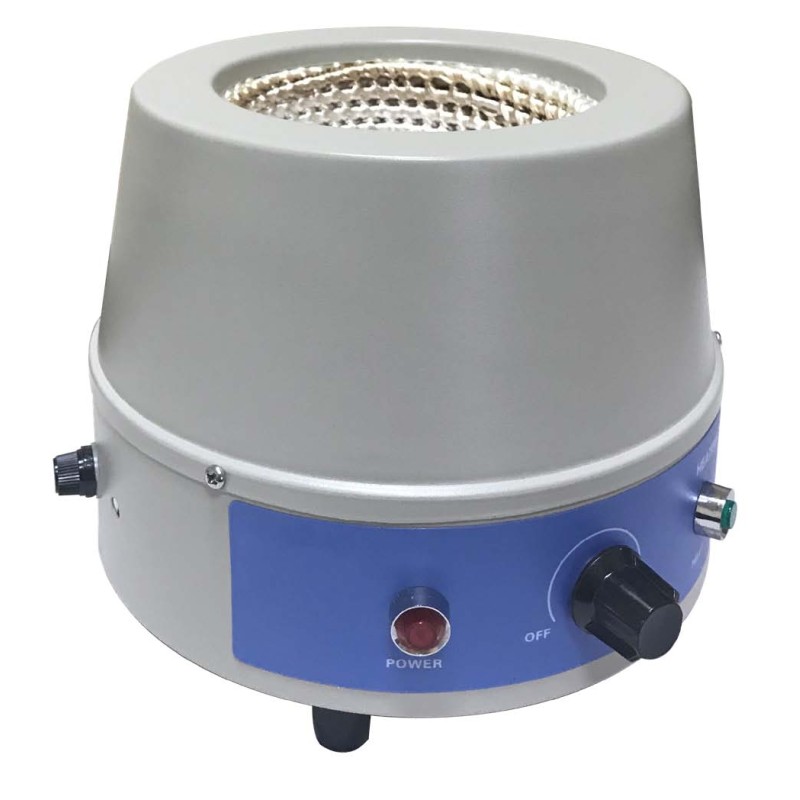

Heating Mantle - Analog Control

  • Product Code: Heating_Mantle _Analog_Control
Heating Mantle - Analog Control
Heating Mantle - Analog Control
Analog temperature regulation mode with characteristics of step-less speed adjustable.

Main Technical Parameters:
Model 98-I-B-100 98-I-B-250 98-I-B-500 98-I-B-1000 98-I-B-2000 98-I-B-3000 98-I-B-5000 98-I-B-10000 98-I-B-20000
Capacity(ml) 100 250 500 1000 2000 3000 5000 10000 20000
Heating Mode Surface heat-conduction
Surface Max. Temp.( t) 450⁰C
Heating element Nichrome wire
Shell Cold rolling sheet stretching and spraying exterior
Heat power (kW) 0.1 0.015 0.25 0.35 0.45 0.6 0.8 1.2 2.5
Working Mode Continuous
Exterior Size (mm) Ø 220 x 165 Ø 220 x 165 Ø 220 x 165 Ø 280 x 220 Ø 330 x 230 Ø 340 x 245 Ø 350 x 250 Ø 425 x 320 Ø 470 x 340
Packing Size (mm) 230 x 230 x 195 230 x 230 x 195 230 x 230 x 195 290 x 290 x 300 340 x 340 x 350 360 x 360 x 300 390 x 390 x 310 380 x 380 x 330 510x510x 380
Voltage(V) 200 - 240V
N.W.(Kg) 2.5 2.5 2.5 5.5 6.5 7.5 8 9.8 16
G.W. (Kg) 2.8 2.8 2.8 6 7 8 9.2 12 20
