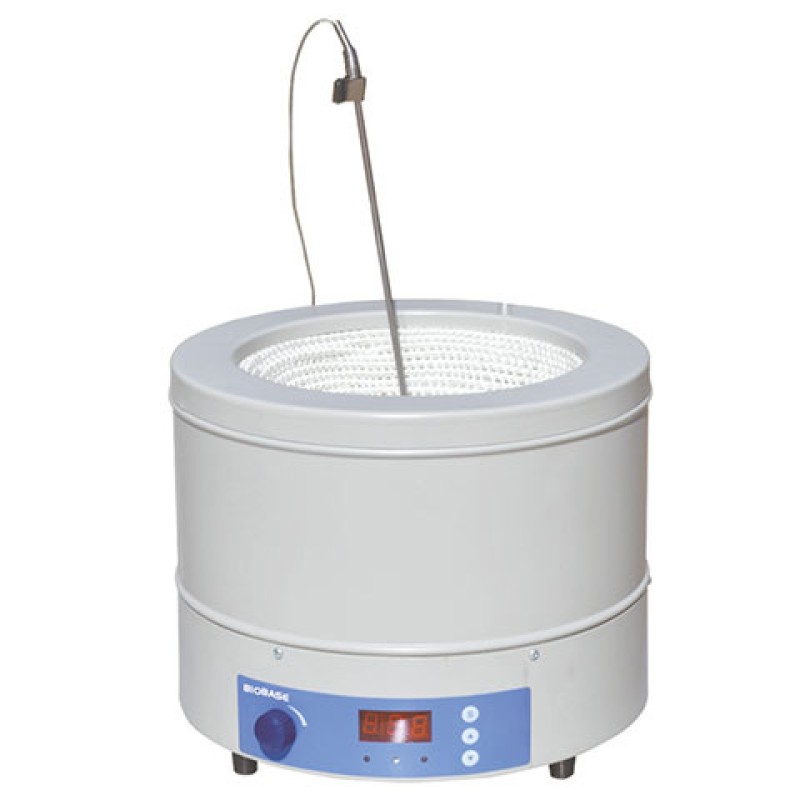

Heating Mantle, Balloon Heating - Digital Control, Magnetic Stirrer

  • Product Code: Heating_Mantle _Digital_Control_Magnetic_Stirrer
Heating Mantle, Balloon Heating - Digital Control, Magnetic Stirrer
Required for colleges, petrochemical industries, pharmaceutical and environmental protection institutions for liquid heating..
  • The internal heater is in the form of a hemisphere with high efficiency.
  • The outer material is cold rolled steel with anti-bacterial powder coating.
  • Easy to use with step-less speed regulation, uniform temperature, effective use.
  • It adopts high temperature resistant, alkaline-free glass fiber with good insulation performance.
  • Proper mixing to the liquid solution is within a wider speed range, especially in experiments with small volume samples

Technical Parameters:
Model HMD-ll-100 HMD-ll-250 HMD-ll-500 HMD-ll-1000 HMD-ll-2000
Capacity(ml) 100 250 500 1000 2000
Max Use Temp. 380°C
Speed 0~1200rpm
Working Time Continuous
Max Use Temp. 380°C
Consumption 100W 180W 250W 300W 500W
Power Supply AC220/110V±10%, 50/60Hz
Internal Size(mm) 070*50 090*60 0105*65 0135*80 0175*95
External Size(W*D*H) 220*195*165mm 220*195*165mm 220*195*165mm 280*260*205mm 320*300*215mm
Packing Size(W*D*H) 295*290*255mm 290*285*250mm 295*290*255mm 350*345*305mm 385*380*340mm
Net Weight 3 kg 3kg 4kg 4kg 5kg
Gross Weight 4 kg 4 kg 5 kg 6kg 7kg
