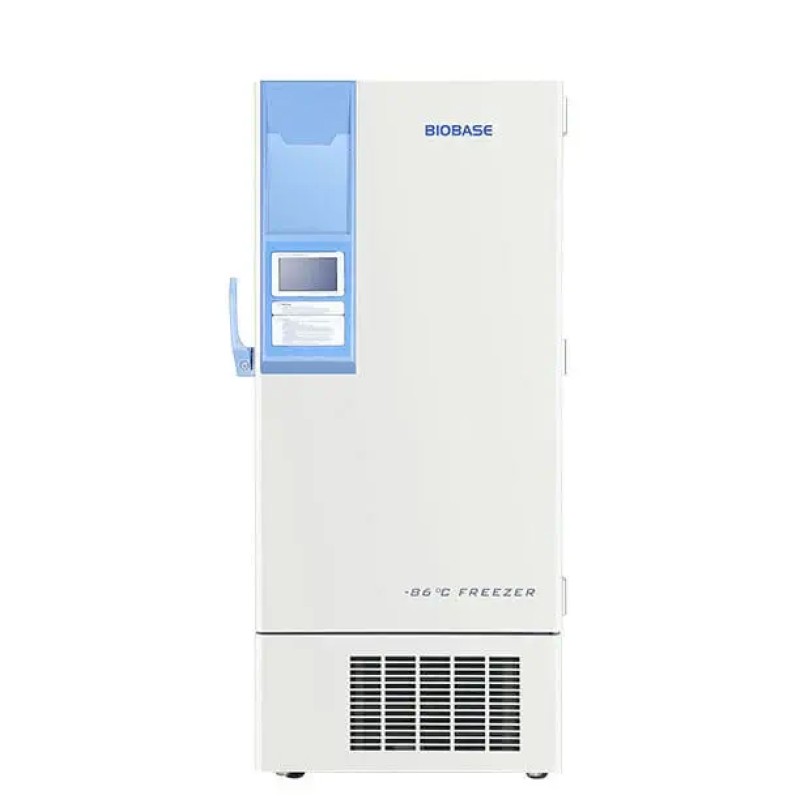

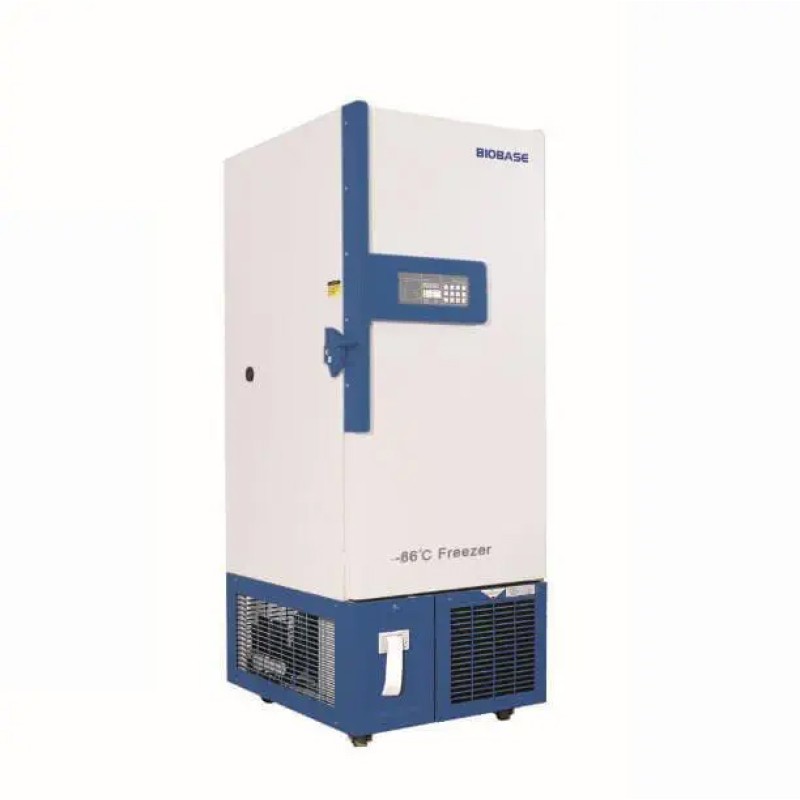

Freezers - Vertical Type, -86 °C
- Product Code: -86°C
Vertical Type
Suitable for blood banks, hospitals, sanitation and anti-epidemic stations, electronics industries, university laboratories, military industry and pelagic fishing companies.
Model | BDF-86V100 | BDF-86V398 | BDF-86V540 |
Outer Dimensions (mm) | 1000 x 720 x 793 | 785 x 1064 x 1985 | 840 x 918 x 1984 |
Inner Dimensions (mm) | 450 x 450 x 500 | 440 x 696 x 1266 | Üst - Alt: 695 x 600 x 588 mm |
Capacity | 100 Litre | 398 Litre | 540 Libre |
Medicine | Dikey Tip | ||
Temperature Car | -10-86 °C | ||
Temperature Accuracy | 01 °C | ||
Control System | Microprocessor Control and Wide LED Display | Microprocessor K. LCD Touch Screen | |
Alarm | High and low temperature. System failure. The door is ajar. Sensor malfunction. Low voltage. Filter blocking: Power cut (only for BDF-86V100 and BDF-86V540) | ||
Cooling Type | Direct Cooling | ||
Cooler | Mixing Coolant | ||
Compressor | 1 Set | ||
Condenser and Evaporator | Copper Material | ||
Structure | Unibody design, double foaming technology. 100 - 155mm foam insulation. VIP + | ||
Inner Material | SS304 | ||
Outer Material | Cold rolled steel. antibacterial gray coated | ||
Door | Lockable Door | ||
Wheels | 4 Wheels | ||
Interior Door Rooms | 2 Pcs | 4 Pcs | |
Temperature Test Port | 1.04Omm | 2.025mm | |
Power | 800W | 1000W | 1800W |
Power source | AC220V ±% 10. 50Hz | ||
Standard Accessory | Temperature printer. Record 7 days of data. 72-hour battery backup for printer and controller display | USB PORT | |
Optional Storage Racks and Boxes | 3 raf: 4 x 3 3 raf: 3 x 3 63 kutu | 12 raf: 5 x 5 300 kutu | 8 raf: 5 x 5 8 raf: 5 x 4 360 kutu |
Package Size (mm) | 1220 x 890 x 1010 | 850 x 1122 x 2062 | 990 x H00 x 2230 |
Gross Weight (kg) | 140 | 360 | 360 |
