Freezers - Vertical Type, -86 °C, Single Door
- Product Code: -86_Vertical_Type_Single_Door

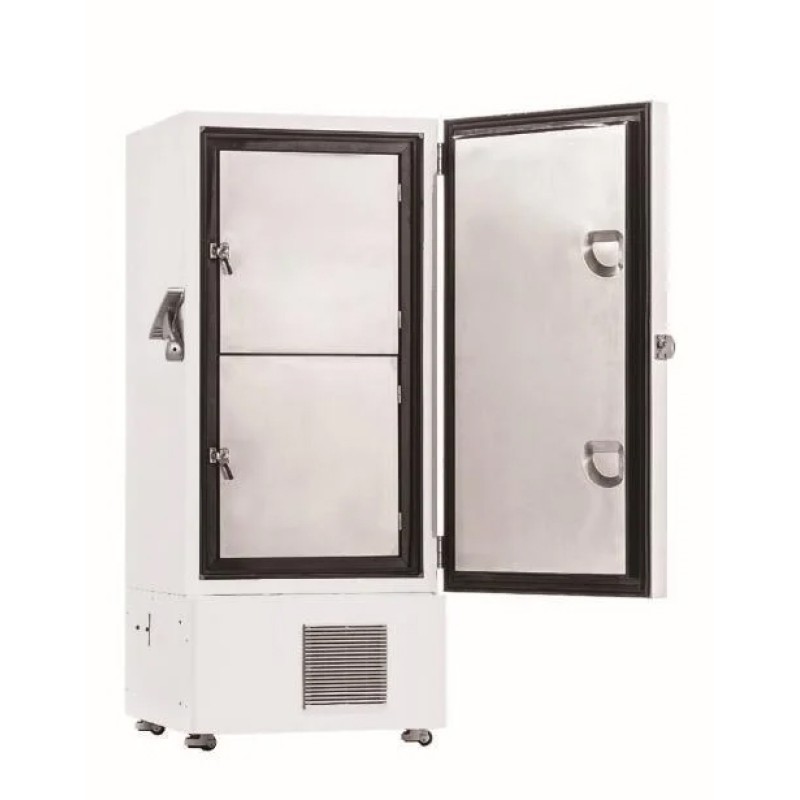

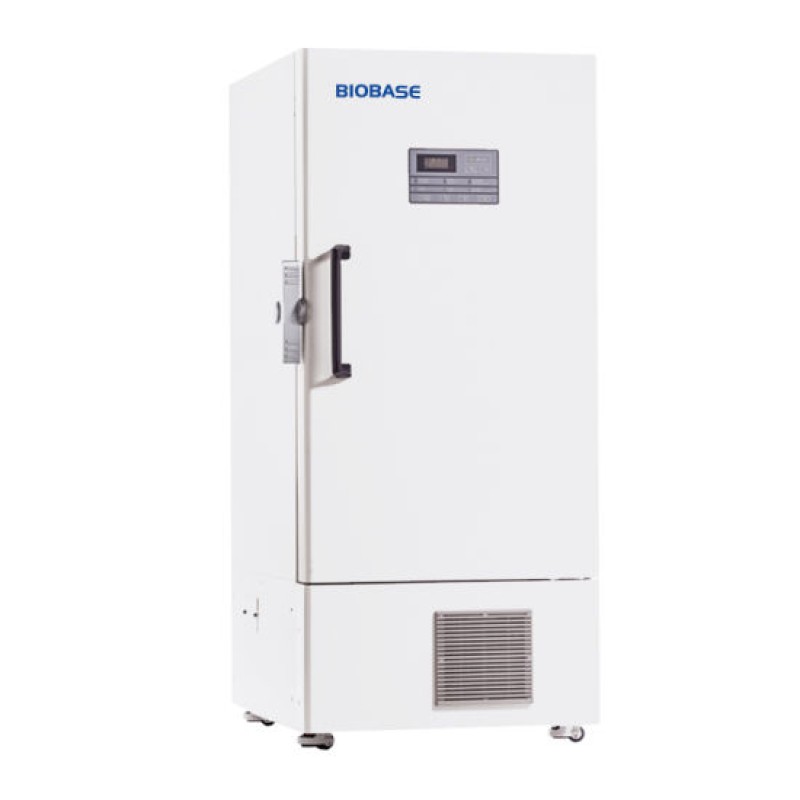

Vertical Type Single Door
Blood banks, hospitals, sanitation, and anti-epidemic stations, electronics industries, university laboratories,
Suitable for the military industry and pelagic fishing companies.
Model | BDF-86V158 | BDF-86V340 | BDF-86V936 |
Outer Dimensions (mm) | 700 x 700 x 1580 | 855 x 1006 x 1917 | 1240 x 1000 x 2000 |
Inner Dimensions (mm) | 460 x 455 x 800 | 490 x 607 x 1140 | 1000 x 700 x 1335 |
Capacity | 158 Litre | 340 Litre | 936 Litre |
Medicine | Vertical Type Single Door | ||
Temperature Range | -40 °C - -86 °C | -60 °C - -86 °C -40 °C - -86 °C | |
Temperature Accuracy | 0.1 °C | ||
Control System | Microprocessor Control and Led Display | ||
Alarm | High or low temperature alarm. Temperature sensor error alarm | High and low temperature. Sensor failure. Doorway. Power failure. Voltage is abnormal. Ambient temperature is abnormal. My low back. Filter blocking | |
Cooling Type | Direct Cooling | HFC | |
Cooler | Mix Cooler | ||
Compressor | 1 Set | 2 Set | |
Condenser and Evaporator | Copper Material | ||
Structure | Unibody Design and Mono-assembly foaming (Rigid polyurethane insulation material) | ||
Inner Material | SS304 | ||
Outer Material | Cold rolled steel with anti-bacterial powder coating | ||
Door | Lockable | ||
Wheels | 4 Pcs | ||
Internal Door Rooms | 3 Adet | 4 Adet | |
Shelves | 2 Adet | 3 Adet | |
Temperature Test Port | 1030mm | 2025mm | 1018mm |
Power | 650W | 1200W | 1600W | |
Power source | AC220V ±% m 50 / 60Hz | ||
Standard Accessory | - | 72-hour backup pi for power failure alarm | |
Optional Storage Racks and Boxes | - | 12 raf 4 * 4.192 box | 24 raf 5 * 5. 600 box |
Package Size (mm) | 780 x 800 x 1710 | 935 x 1070 x 2128 | 1350 x 1080 x 2150 |
Gross Weight (kg) | 155 | 220 | 330 |
