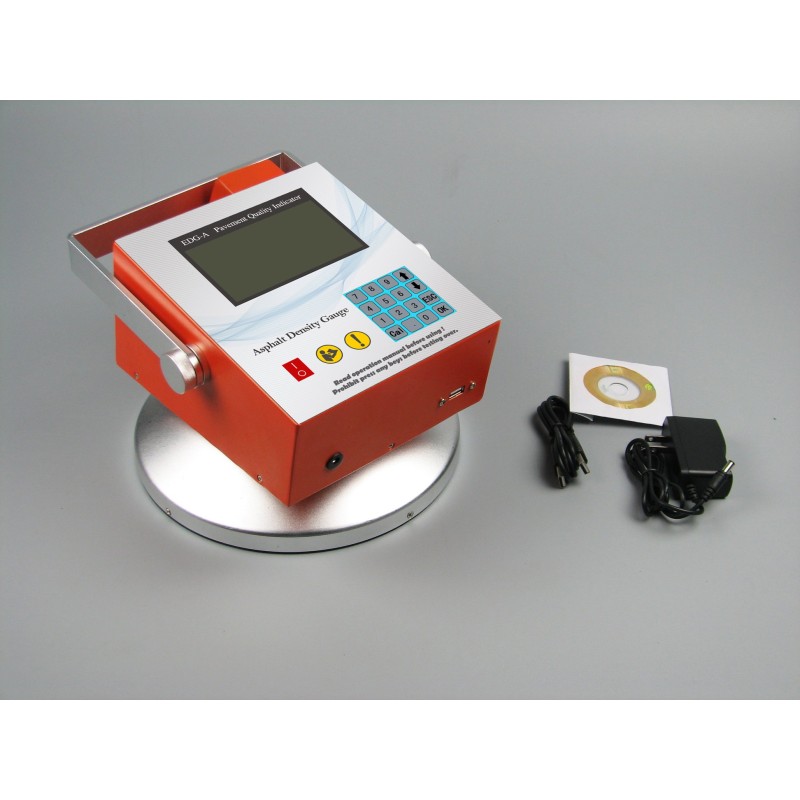

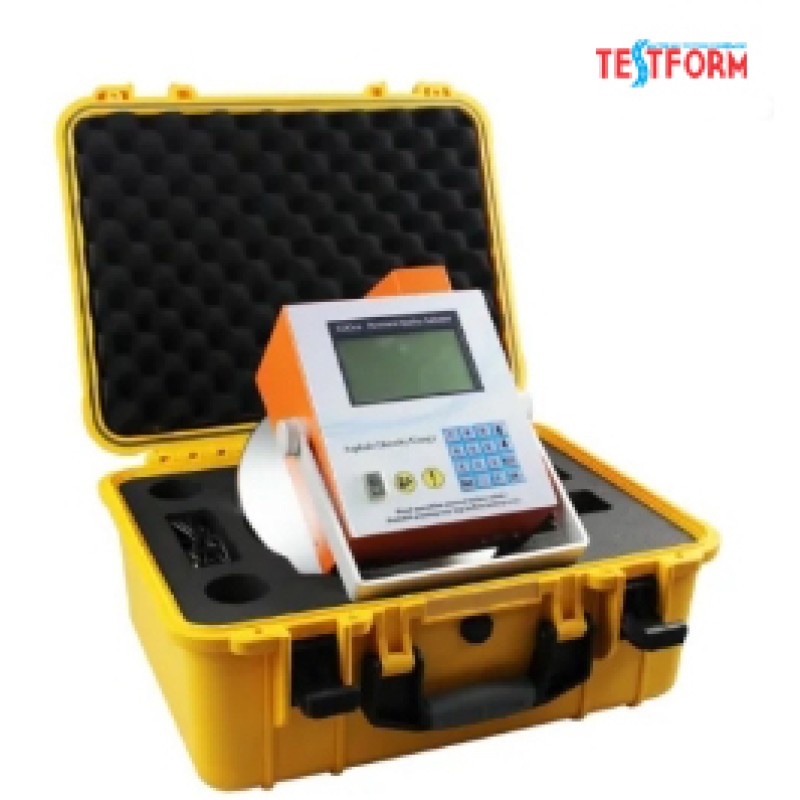

Non Nuclear Asphalt Density Gauge
- Product Code: EDG-A
The gauge can quickly measure the density, temperature and also the relative moisture of the surface layer of asphalt pavement.
Using electromagnetic method on measuring uniformity and relative density of asphalt pavement, and it will automatically calculates the average density, degree of compaction and porosity.
It’s easy to find asphalt pavement unevenness, segregation and low-density areas by this measurement.
This detector facilitates problems immediately to be solved before the completion of the road construction.
|
W310 Specifications |
|
|
Detection
Area |
Range
diameter 27cm, fine and coarse material
can be measured |
|
Operating Temperature |
Ambient
temperature of minus 7 °C to 43 °C, the surface temperature of 175 °C, the
storage temperature of minus IS °C to 66 °C |
|
Units |
Inches
or mm ; lb/cu-ft or kg/cum |
|
Measurements |
270mmx270nmix2S0mm |
|
Power
Supply |
Battery |
|
Sensor temperature range |
0
—350°C |
|
Detection
Depth |
25mm —
100mm |
|
Results
displayed |
density,
% degree of compaction, % k variable porosity and segregation |
|
Display |
5.0
inches |
|
Storage
Space |
Maximum
10,000 testing subjects |
|
Working
time |
> 24hours |
