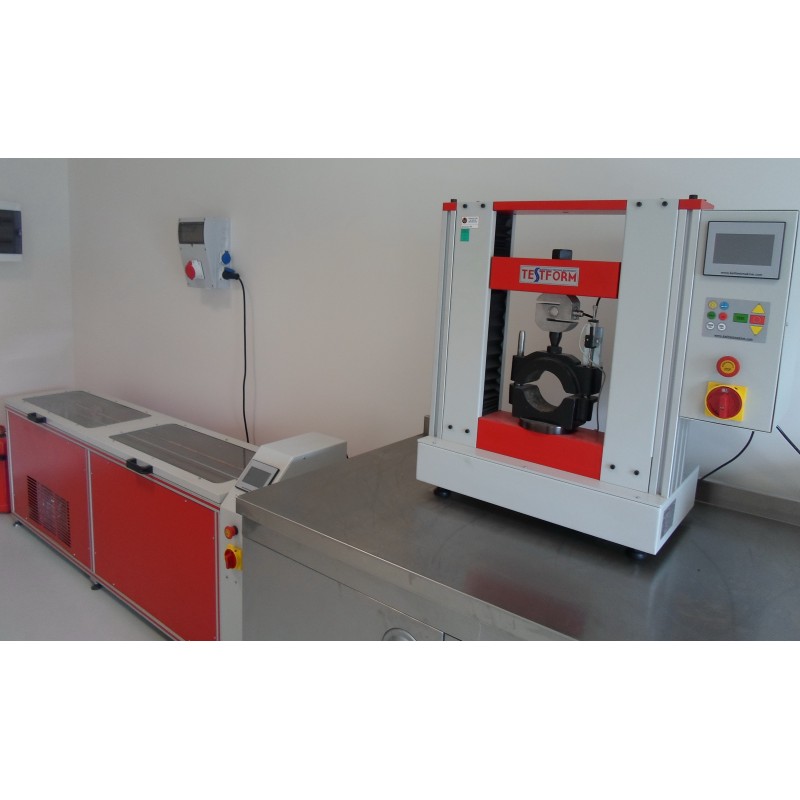

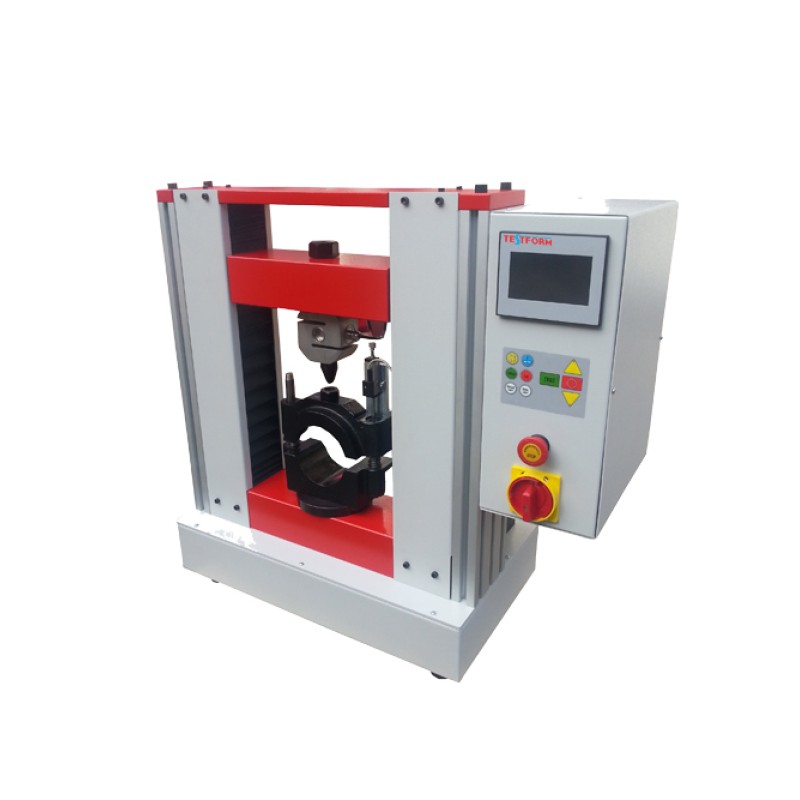

Marshall Testing Machine 50 kN - Automatic

  • Product Code: AB054-KIT
Marshall Testing Machine 50 kN - Automatic
Marshall Testing Machine 50 kN - Automatic Marshall Testing Machine 50 kN - Automatic

Standard: TS 1900-2, ASTM D1883, D3668 - BS 1377: 4, 1924 - AASHTO T193

STANDARD FEATURES

  • Max. capacity: 50 kN. (5000 kgf.)
  • Adjustable testing speed from 0.1 to 500 mm/minute
  • Easy and long life with 7 "touch screen
  • A.C.Servo engine controlled system
  • 0.001 mm. Motion sensitivity
  • Force sensitivity ± 0.1%
  • Stainless movement system without maintenance
  • Computer and printer connection
  • Emergency stop button
  • Automatic fast reverse
  • Kgf. - N. - kN. select feature
  • Auto stop feature
  • Calibration class: 0.5 class

TECHNICIAL SPECIFICATIONS

  • Height: 65 cm.
  • Width: 70 cm.
  • Depth: 40 cm.
  • Weight: 125 kg.
  • Operating voltage: 220VAC. - 1 KW
