Indentation test apparatus

  • Product Code: AB035

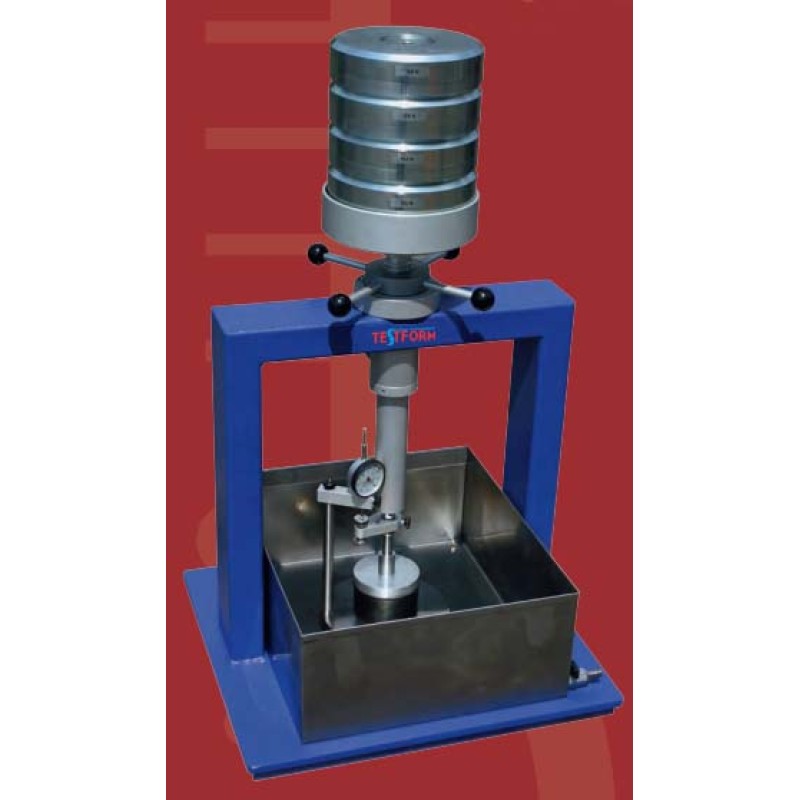

Indentation test apparatus

EN 12697-20

Penetrometer to determine the penetration depth of asphalt cube samples.

Basic device consists of a robust steel frame, stainless steel inserts with base plate for sampling, as well as loading mechanism.

In order to ensure the lowest possible friction and the exact placement of the inspection stamp on the sample, the guide rod is hardened and guided into the spherical liner.

Loading via easy-running screw spindle with four operating levers.

Complete with load weights for 500N, with thermostat heating, exchangeable test stamps 1cm and 5cm as well as precision dial gauge 30mm, display 0.01mm.

 Molds are not included and have to be ordered separately
