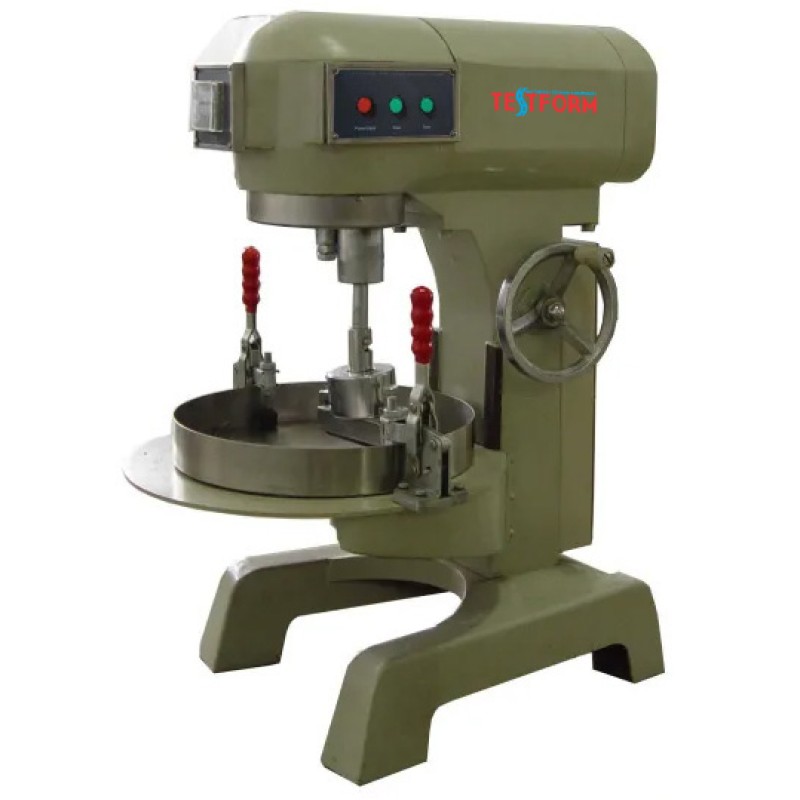

Wet Rubber Wheel Abrasion Tester ( Planetary Mechanical Stirrer)

  • Product Code: AB065
Wet Rubber Wheel Abrasion Tester ( Planetary Mechanical Stirrer)
Wet Rubber Wheel Abrasion Tester ( Planetary Mechanical Stirrer)

Standard : EN 12274-5, ASTM D3910


For determining the resistance to abrasion of slurry mixtures.

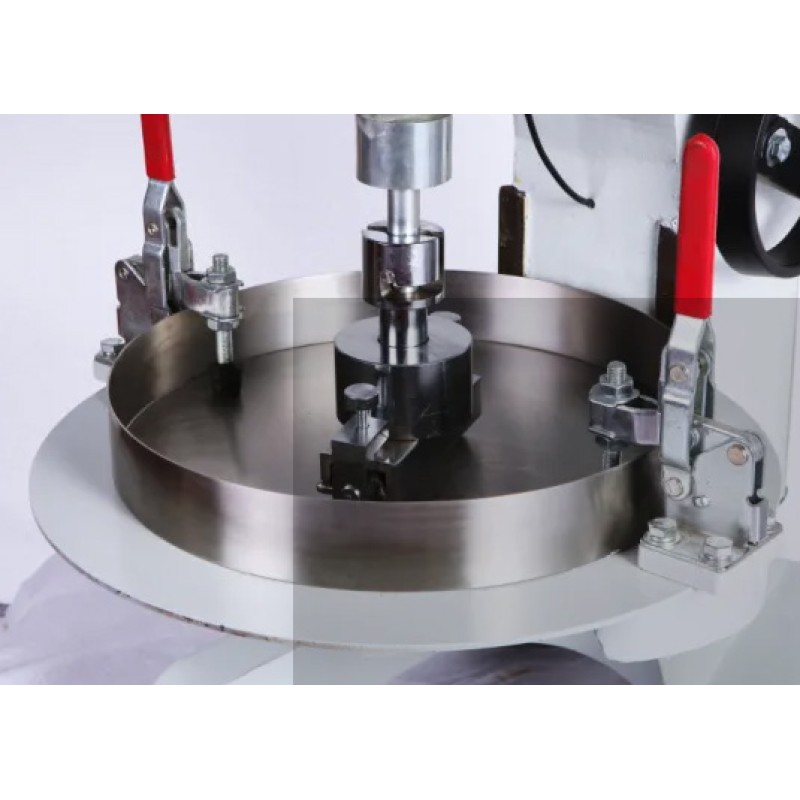

The apparatus consists of a planetary mechanical stirrer equipped with a weighted rubber hose abrasion head.



Technical Features


Motor rotating speed

1400r.p.m.

Abrasion head rotating speed

140r.p.m.

Abrasion head revolution speed

61r.p.m.

Abrasion head weight

2.27kg

Rubber tube

127mm long

Timing function

5 minutes

Power supply

200V, 50Hz, 1ph.

Overall dimensions

600x480x485mm

Weight approx

60kg
