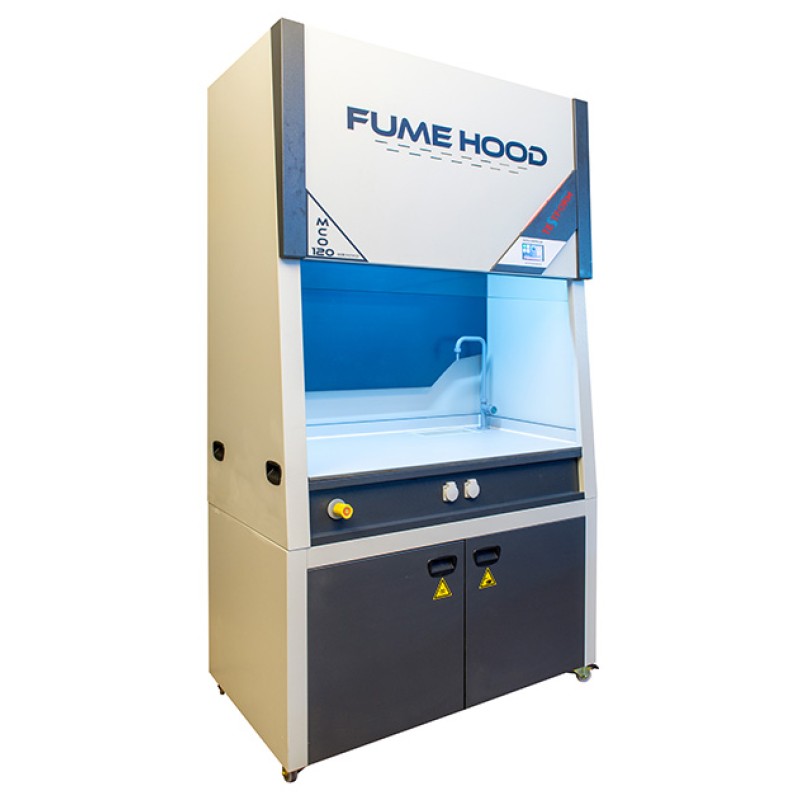

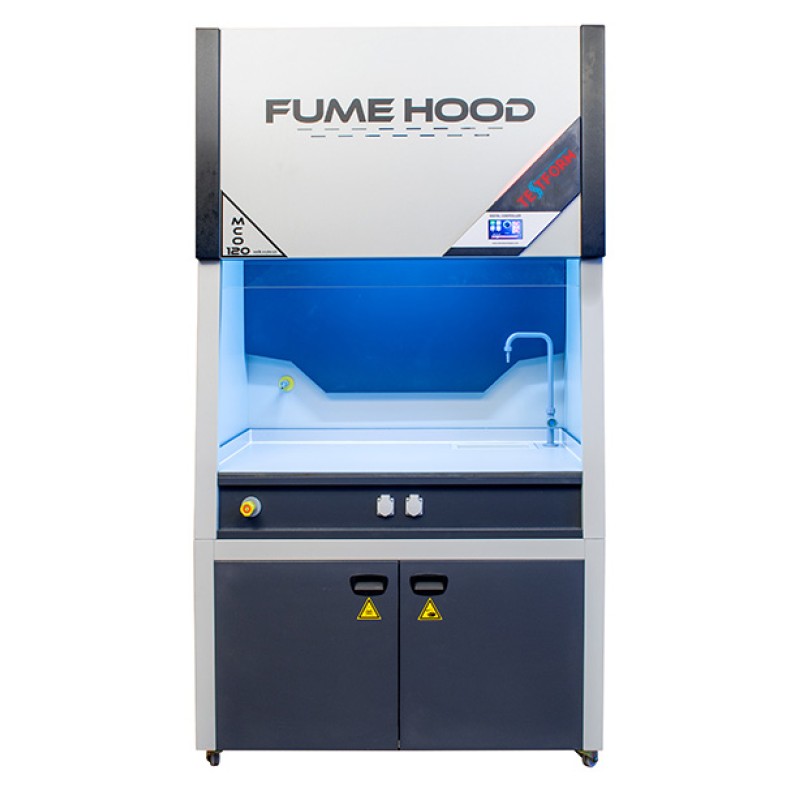

Fume Hood
- Product Code: MCO
The best technology, security and more high sensitivity to the environment,
Modern laboratory furnace pulls underlying the formation but used for performing precise test can be used to remove potentially dangerous aesol. harmful gases and vapors formed in the laboratory environment is based on the proper operation of the fume hood with suction and conditions of the work area.
Hood that acid mist generated during operation, the heater, with a discharge system which can remove gas such as process flavors are devices connected to the system assigns to the external environment by hazardous weather systems in the workplace.
- Electro epoxy electrostatic paint on galvanized sheet,
- a window made of tempered glass that can be opened vertically,
- Cabins, steam acid may occur during the work on the machine, and the heat absorbing structure and capacity to remove contaminants such as process immediately aroma,
- Is the air intake of the engine. 1250 m 3 / hour capacity,
- Cabin lighting is provided by fluorescent lamps. Truck affected by the quarry into the mechanism established to create a chemical vapor should be buried so that no surge in cabin space.
- During the study it does not create noise pollution,
- Possible protected against flooding water,
- Camping windscreen frame guillotine type,
- optionally water tap in the cabin,
- According to the air suction flow physics,
Aspiration CABIN
Acid-resistant, KOPMAKT or PP (Polypropylene) are made of material. Optionally presented PP sink, allows comfortable use with water fitting and gas fitting. Through the control panel from water and gas fittings are user-friendly.
ENGINE
Air suction motor acid and acid vapor resistant PP (Polypropylene) are made of material. 2650 rpm motor power used, 1300m³ / h, 0.8 is 180w't. Motor speed can be gradually opened and the speed control unit on / off switch is located on the front panel of the device.
SPECIAL REQUESTS
- Custom sizes and in different production characteristics
- Panels for use in controlled aspiration gas cabinet may be placed according to user's request combustible gas and water fittings.
- Aspiration PP sink into the cabin.
- Automatic windscreen can be switched on and off.
- material that can be used with the instrument cabinet
| MODEL | Cabin dimension (cm) (wxdxh) | EXTERIOR DIMENSIONS (cm) (WxDxH) |
| MCO-120 | 116x65x80 | 120x75x200 |
| MCO-150 | 146x65x80 | 150x75x200 |
| MCO-180 | 176x65x80 | 180x75x200 |
| TECHNICIAL SPECIFICATIONS | |||
| MCO-120 | MCO-150 | MCO-180 | |
| Working Cabinet | Epoxy powder coated base cupboard may be the mobile space, or metal cap fixed system ended tube within the cabinet gas and water outlet nozzles, the heavy and light gas setting panel, cab fluorescent lighting hood portion correspond to the air outlet Pshyics 5 cm antacids like compact laminate plinth, stainless front border, inside the cabin CrNi sink 15x15x15 | ||
| Working Floor | Compact Laminate, stainless steel front border, a) Ceramic epoxy seam, b) Antacid epoxy grouting of ceramic, c) antacids compact laminate, d) Granite, e) monolithic ceramic | ||
| Fan | 1000,1250,1750m³ Standard EN 60034-1 Protection class IP44 steel body | ||
| Lighting | Low power high-intensity 800 lux (fluorescent lamp) | ||
| Noise level | a 55dB | ||
| Front controls Wall | One frame automatic protection fuse, light motor on-off switch, the motor speed control switch, two special grounded outlet gas control flywheel, water control flywheel | ||
| Cabin Window | Balance aluminum framed guillotine type and is capped in the glass are such that it can move on the rail system to be kept at the desired level, the main cable are not visible from outside. | ||
| Options | Stainless steel inner cabinet work floor anti acid gas and water valve in particular the compact laminate, sink, hour meter, prefilter stand cupboard | ||
| Paint | Metal parts are cleaned with solvent after special coated with epoxy powder paint 200 ° C it is also prepared | ||
| Power Rating | 220v50hz | ||
| standard Accessories | Leg support stand, the speed-regulated dimmer switch 2 electrical outlet (20a) | ||
| Measures Study | Optional | ||
