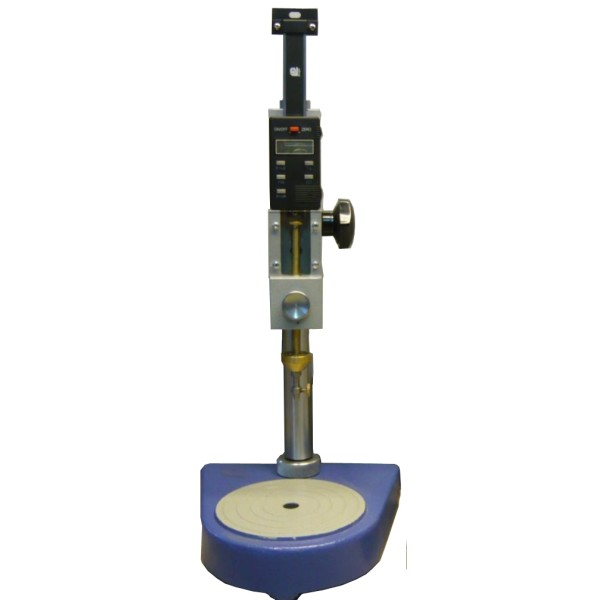

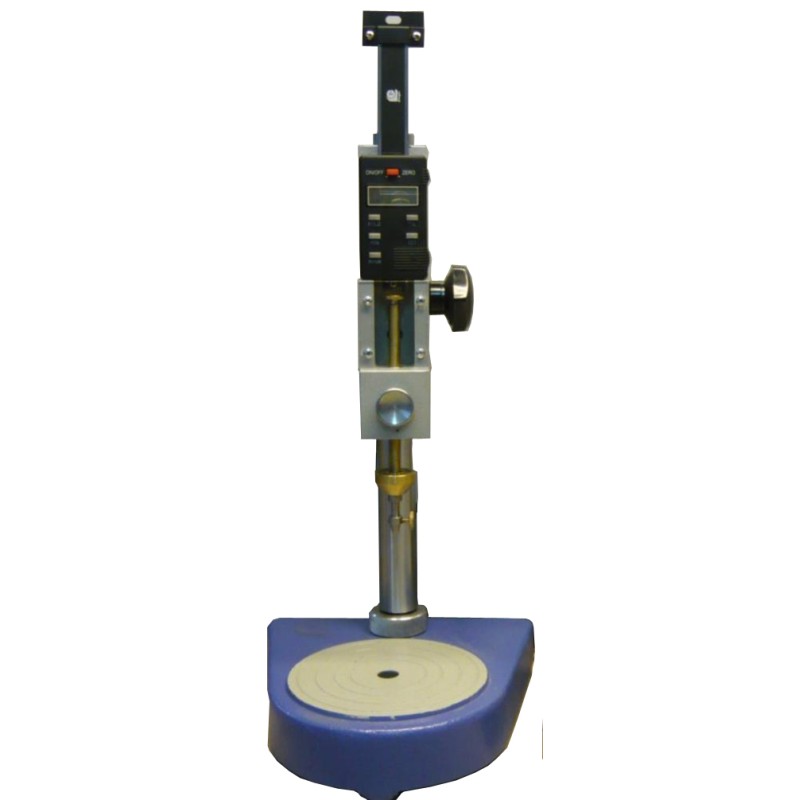

Penetrometer - Digital, Standard
- Product Code: BT005
EN 1426, ASTM D5, AASHTO T49, ASTM D1321
Light-alloy base with leveling screws.
Stainless steel calibrated spindle (weight 47.5 g) with friction-free movement.
Stop and release button.
The digital readout of the penetration values has readings in mm and inch, with 0.01 mm resolution, LCD 5 digits display, with zero set in any position.
Automatic zeroing and relevant micrometric screw.
The instrument is secured to a cast light-alloy base and slides on the base’s upright.
Complete with blocking device and device for the micrometric adjustment of displacements.
Suitable for bitumen (needle) and grease (cone).
220-240 V, 50 Hz, single phase.
Dimensions: 290 x 270 x 530 (h) mm.
Weight: 5.5 kg
Accessories supplied as standard:
The apparatus is supplied complete with standard penetration needle (for bitumen), 50 and 100 g weights and sample containers:
- Diameter 55 x 35 mm (up to 20 mm penetration)
- Diameter 70 x 45 mm (20-35 mm penetration)
| Accessories and spare parts: | |

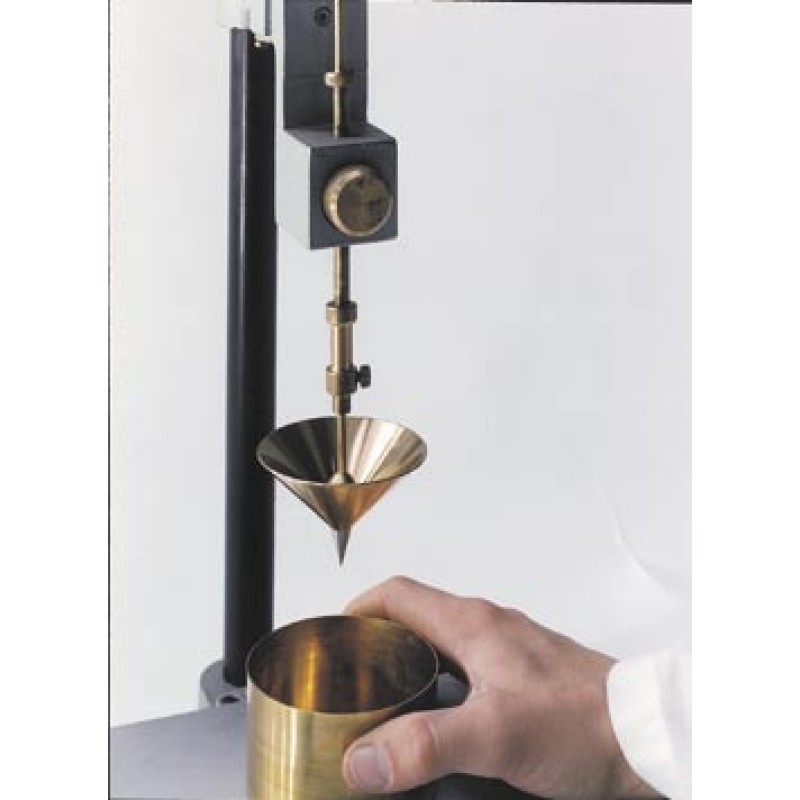

| BT005-01 | Penetration cone (ASTM D 217) Made of brass with stainless steel point Weight: 102.5 g |
| BT005-02 | Container diameter 3” x 2.5” (brass) |
| BT005-03 | Container diameter 70 x 45 mm (brass) |
| BT005-04 | Container diameter 55 x 35 mm (brass) |
| BT005-05 | Kit of 10 containers dia. 55 x 35 mm (aluminum) |
| BT005-06 | Standard needle for penetrometer |
| BT005-07 | Verified needle |
| BT005-08 | Thermometer (23°-27°C) |
| BT005-09 | Tapered needle, 2.5 g, ASTM D 1321 |
| BT005-10 | Wax Test Cylinder, Ø 25 x 32 mm, with base plate, ASTM D 1321 |
