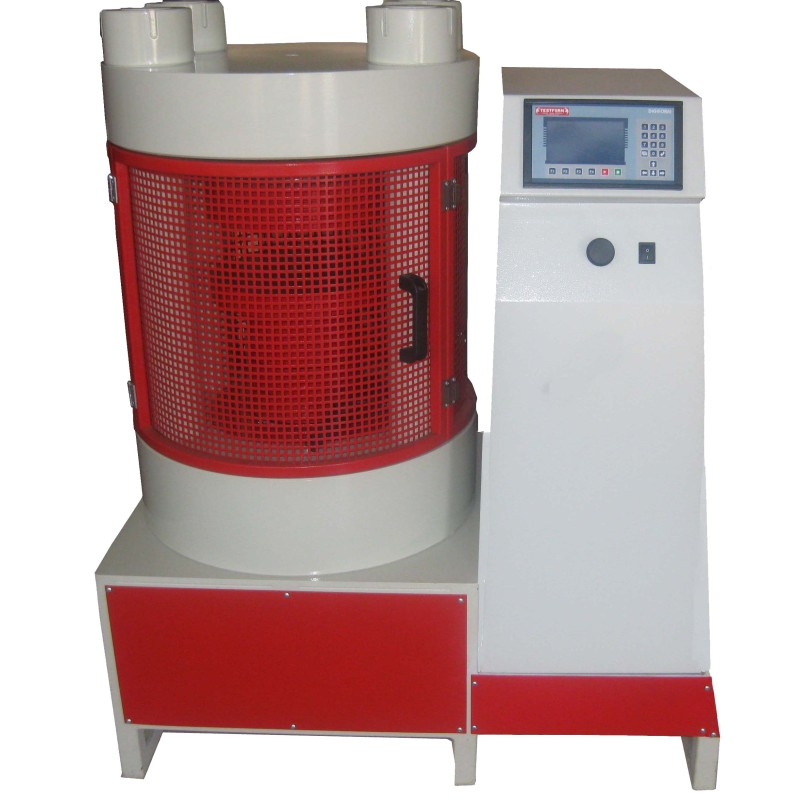

Concrete Compression Testing Machine 5000 kN

  • Product Code: CN009
Concrete Compression Testing Machine 5000 kN
Concrete Compression Testing Machine 5000 kN Concrete Compression Testing Machine 5000 kN Concrete Compression Testing Machine 5000 kN

Introduction

Our compression testing machine is used to determine the characteristic compressive strength and assignment of the compressive strength classes of concrete.

Compression tests are carried out on test specimens. Specimens in cube form with an edge length of max. 200mm, or as cylinders with a height of max. 320mm and a diameter of max. 150mm can be inserted into our machines.

In this test the concrete sample is placed on a hardened pressure plate and loaded manually or automatically until it breaks.

Standards

  • EN 12390-4, EN 772-1, BS 1881:115, BS 6073, DIN 51220, NF P18-411, ASTM C39, AASHTO T22, ASTM C140, ASTM C1314,

Main Function and Usage

  • It is mainly used in the testing of compression strength of the concrete.
  • Control Method of Testing Rate: Electro-hydraulic closed-loop control.
  • High Stability
  • Calibration accuracy: class 1
  • High stiffness and heavy weight 4 columns frame
  • Power supply: 230V 1ph 50Hz 750W
MODELS CN005 CN008 CN009
Capacity 2000kN 3000kN 5000kN

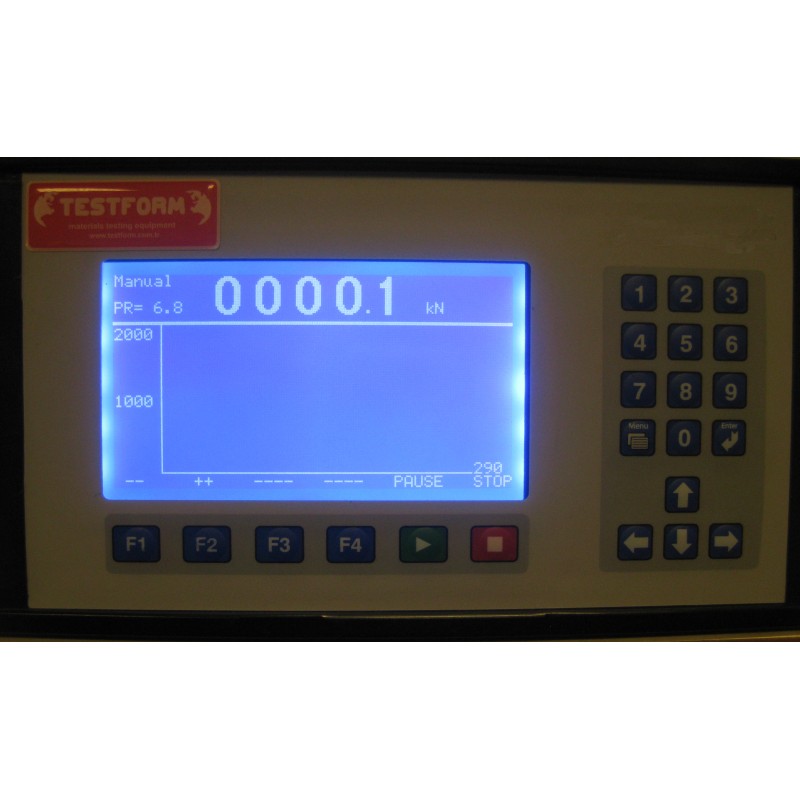

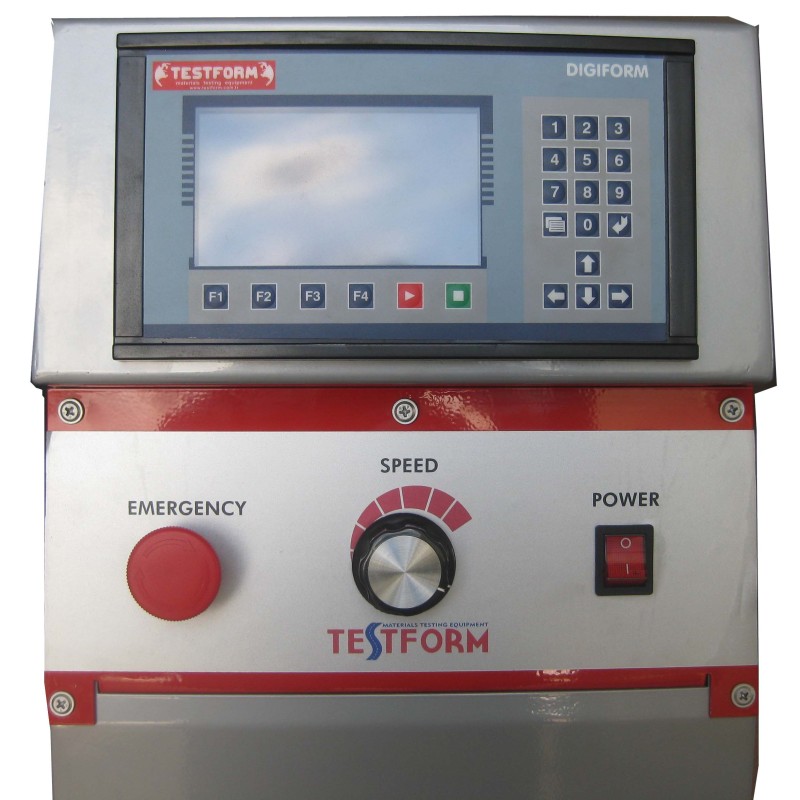

Controller PCM305 LCD Display 2 Channel controller
Loading Control Speed Range 0.05 kN/s - 20kN/s
Measure Range of Testing Force 2% ~ 100%FS
Relative Accuracy of Value Display of Testing Force ≤±1%/±0.5%
Top and Bottom Pressure Plate Dimension (mm) 370x370 400x500 500x600
Max.Space of Top and Bottom Pressure Plate(mm) 360 360 500
Max.Piston Stroke(mm) 50
Piston Diameter(mm) Ø330
Rated Pressure of the Hydraulic Pump(MPa) 40
Load Frame Size (L*WxH) (mm) 900x600x1150 1050x900x1260 950x1450x1650
Weight (kg) 800 1500 4000
