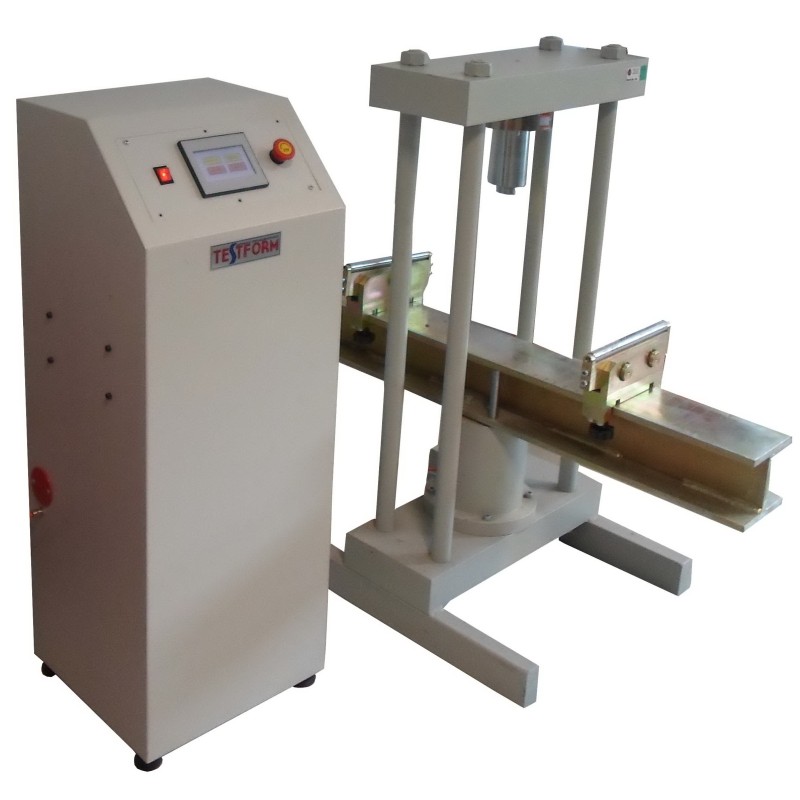

Flexural Testing Machine, 200 kN capacity - Touch Screen

  • Product Code: CN023
Flexural Testing Machine, 200 kN capacity - Touch Screen
Flexural Testing Machine, 200 kN capacity - Touch Screen

TS EN 12390/5, BS 1881:118, ASTM C78, DIN 51302

To perform flexural tests on concrete beam specimens having max. dimensions of 20x20x80 cm.

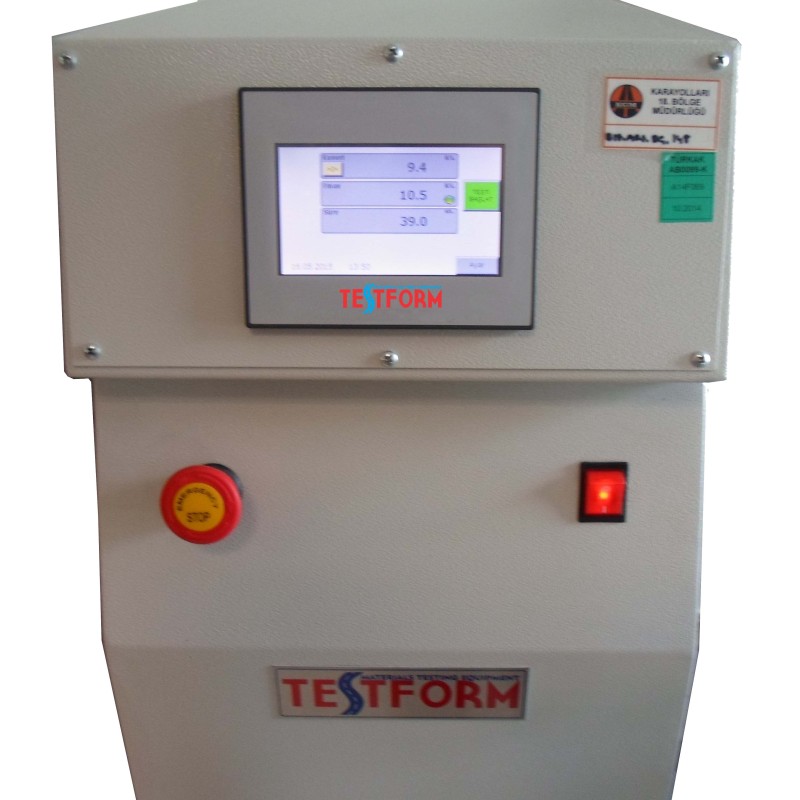

Control Unit : Touch Screen and/or Computer, Full Automatic

Speed Rate Control: Motor Speed Control Unit

Load Measure Flexure: 200 Bar PressureTransducer

Oil Flow Control : 24 V Selenoid Valve

Max vertical daylight : 160 mm

Distance between upper rollers: 400 mm

Distance between lower rollers: 1000 mm

Rollers dia: 20 mm

Rollers Hardened : 40 HRC

Power : 220-240 V 1 ph 50 Hz

Dimension: 1000 x 1000 x 1600 mm



Weight : 350 kg
