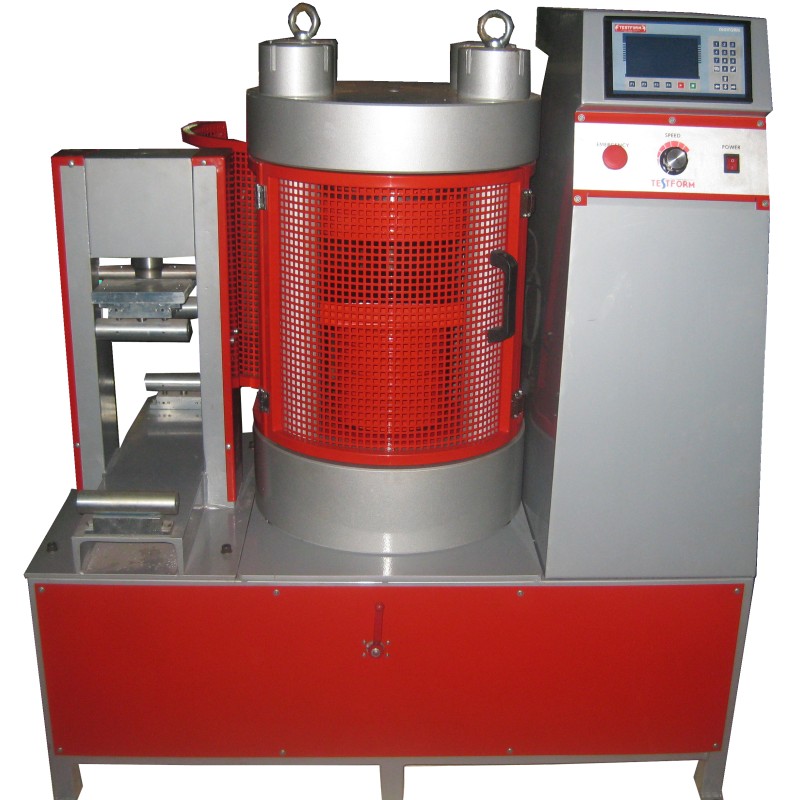

Concrete Compression & Flexion Testing Machine 2000 kN - 50 kN
- Product Code: CN030

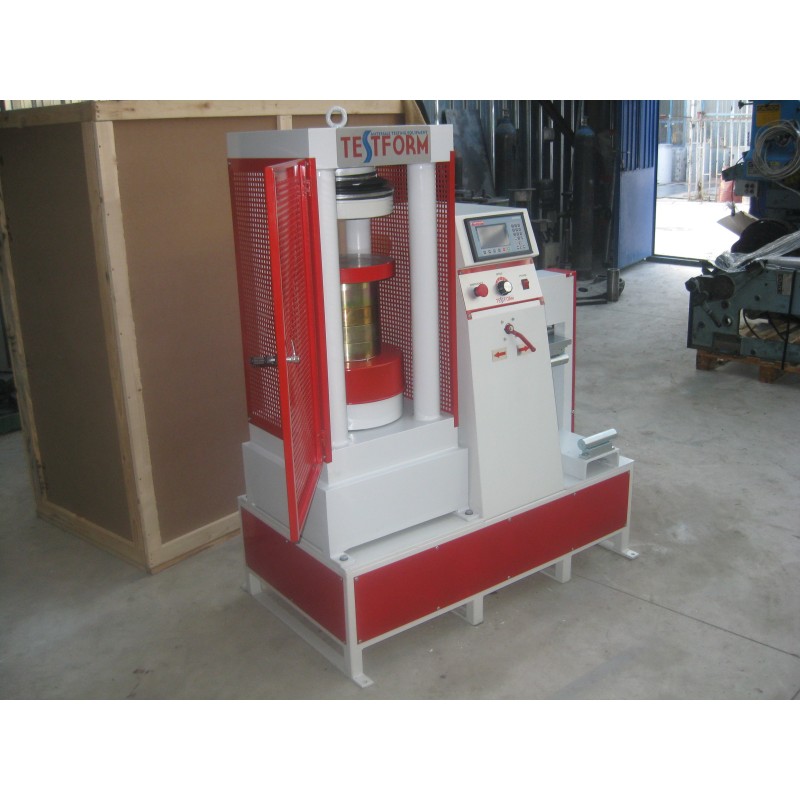

Compression Test Frame :
Standards : EN
12390-4, BS 1881, ASTM C78, DIN 51302

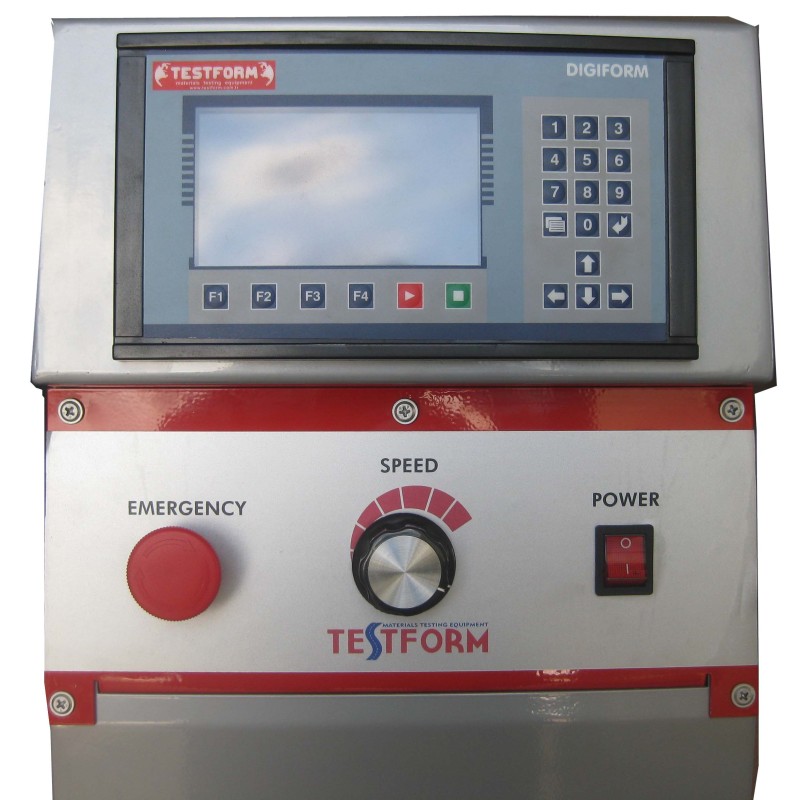

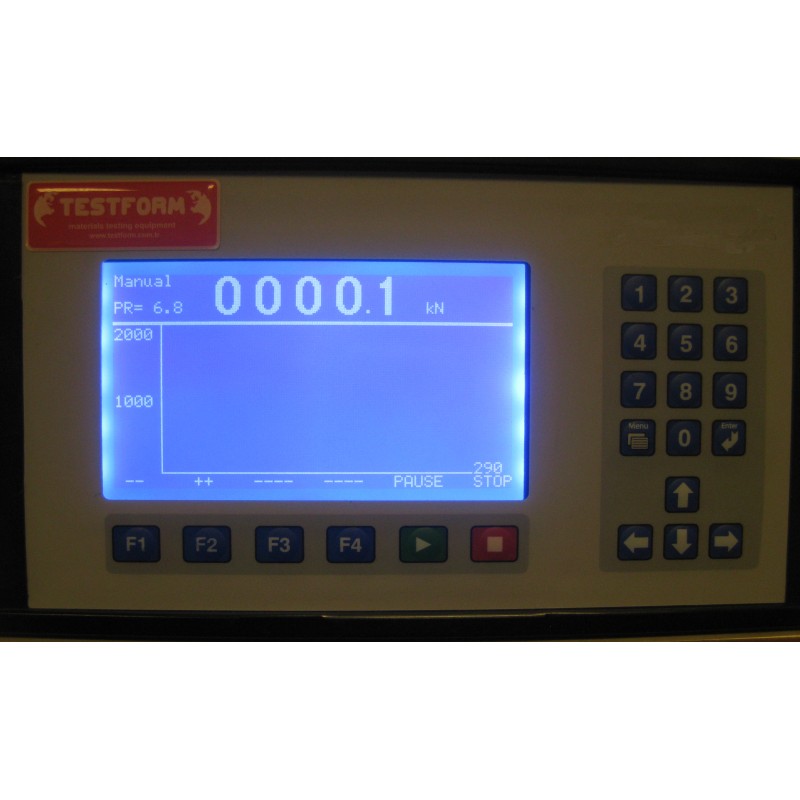

Control Unit : Dijital
and/or Computer, Full Automatic
Speed Rate Control:
Motor Speed Control Unit
Load Measure : 400 Bar
Pressure Transducer
Oil Flow Control : 24
V Selenoid Valve
Max vertical
daylight : 310 mm
Compression planets
dia: 300 mm
Compress. Plate
Hardened : 60 HRC
Max ram travel : 50 mm
Power :
220-240 V 1 ph 50 Hz
Dimension: 600 x 1000
x 1185 mm
Weight : 900 kg
Flexural Test Frame :
Standards : EN 12390/5, BS 1881:118, ASTM C78, DIN 51302
To perform flexural tests on concrete beam specimens having max. dimensions of 20x20x80 cm.
Control Unit : Dijital and/or Computer, Full Automatic
Speed Rate Control: Motor Speed Control Unit
Load Measure Flexure: 200 Bar PressureTransducer
Oil Flow Control : 24 V Selenoid Valve
Max vertical daylight : 160 mm
Distance between upper rollers: 400 mm
Distance between lower rollers: 1000 mm
Rollers dia: 20 mm
Rollers Hardened : 40 HRC
Power : 220-240 V 1 ph 50 Hz
Dimension: 1000 x 1000 x 1185 mm
Weight : 275 kg
