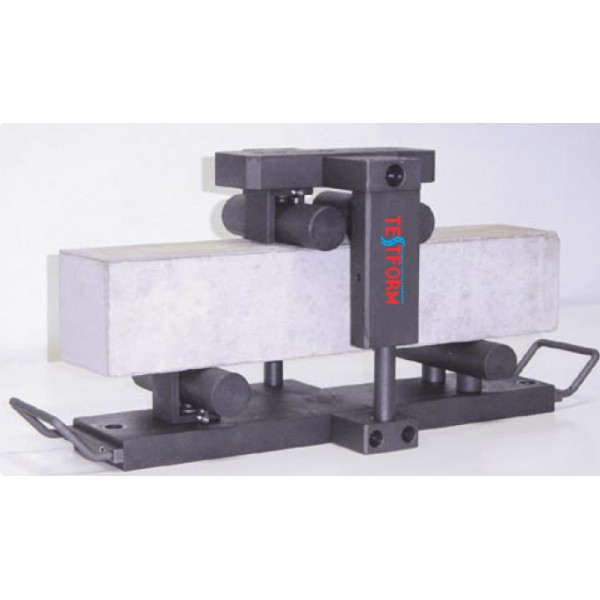

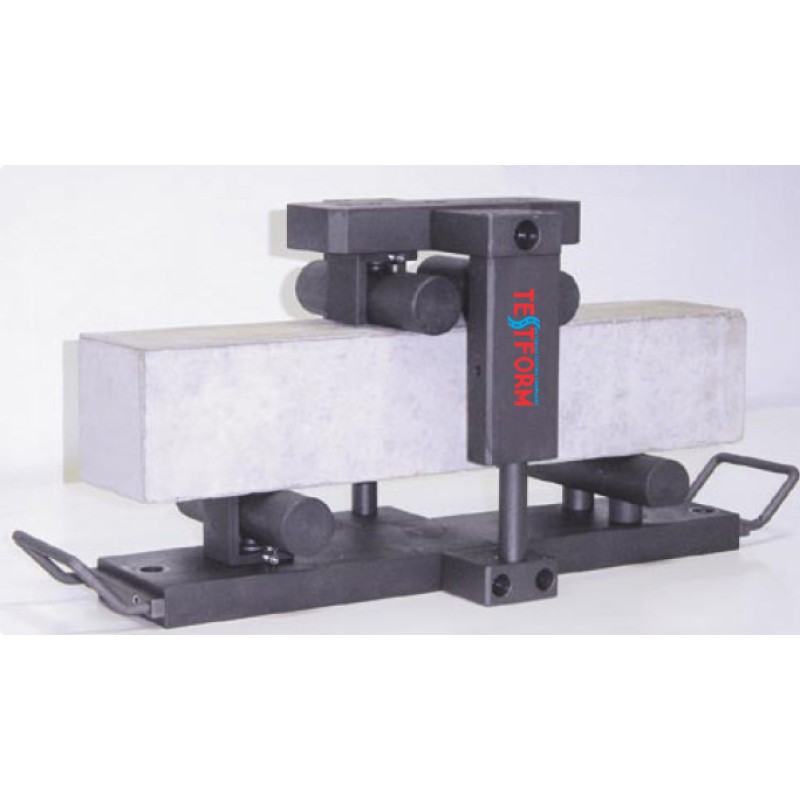

Flexural device for two point and centre point tests

  • Product Code: CN035
Flexural device for two point and centre point tests

Standard : EN 12390-5 / ASTM C78, C293 / AASHTO T97

Equipped with two lower rollers, one of them articulated and two upper rollers for third point tests. It is possible to place in the centre only one upper roller for centre point tests. To perform the flexural test, this device has to be used with a concrete compression machine foreseen of low capacity measuring range

For concrete beams 100x100x400/500 and 150x150x600/750 mm.

Dimensions 610x200xh320 mm

Weight 27 kg
