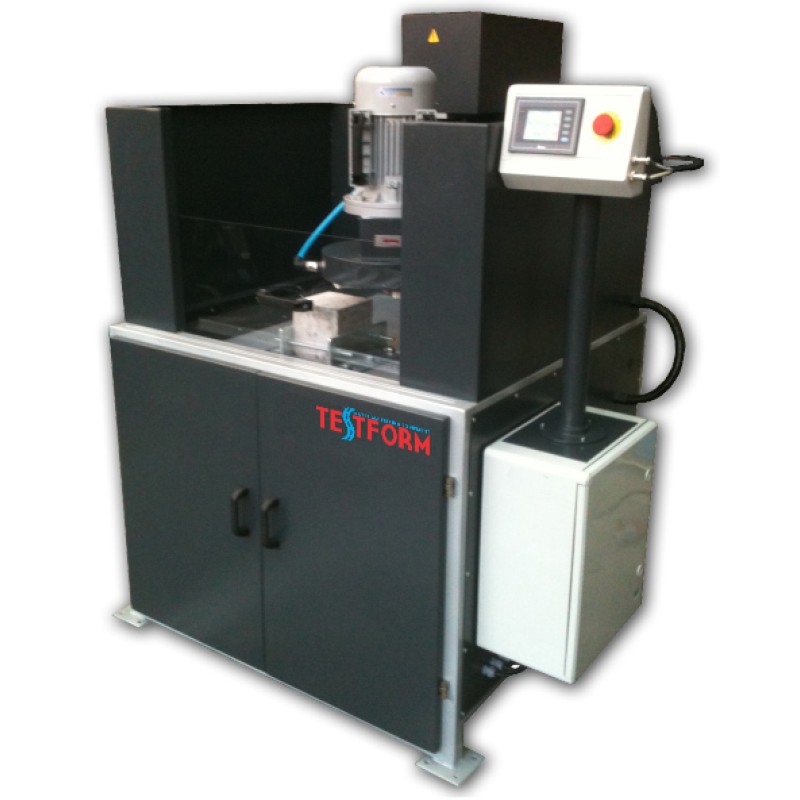

Automatic Specimen grinding machine

  • Product Code: CN298
Automatic Specimen grinding machine

Standard : EN 12390-1, EN 12390-2, 12504-1; ASTM C 31, C39, C42, C192, C617

  • To grind concrete specimens, natural stones, tiles, block pavers, ceramic materials etc.
  • Large base table for grinding contemporaneously up to three 100 mm cubes, or three 150 mm cubes, or two 200 mm cubes and concrete/tile blocks of various sizes.
  • For cubes up to 200 mm and cylinders up to dia. 160x320 mm
  • Full automatic
  • Safety guard with door locking switch conforming to CE
  • Complete with clamping elements for cubes
  • Ideal for surface preparation of concrete specimens, natural stones, tiles, block pavers, ceramic materials, rock samples using the accessory
