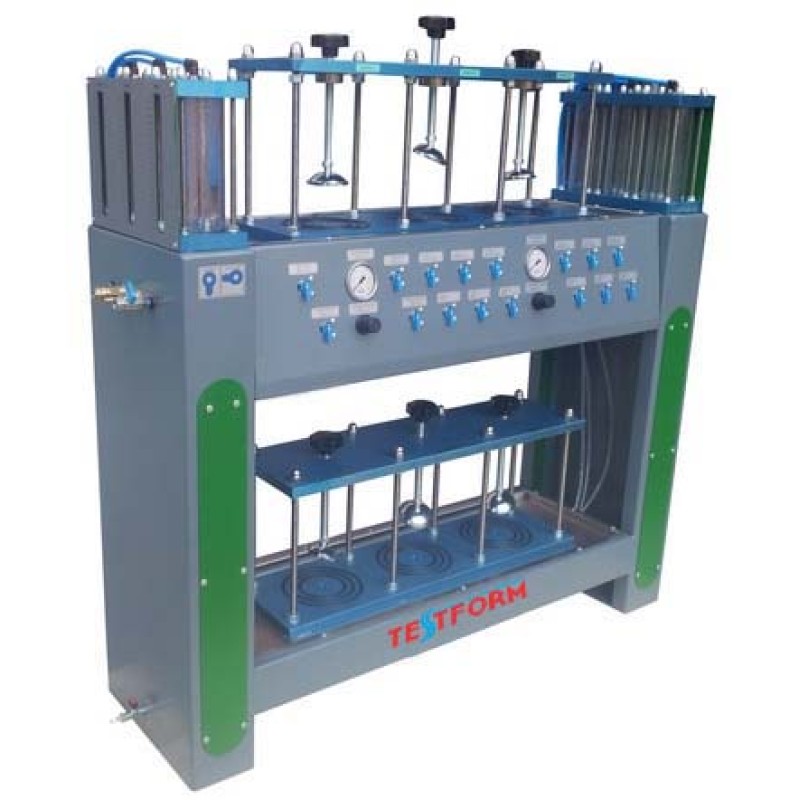

Concrete water impermeability tester - six places
- Product Code: CN435-05
Standards: EN 12364, EN 12390/8 - ISO 7031
Apparatus at 6 points to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure
The unit accepts up to 6 concrete cubic, cylindrical or prismatic specimens having max. dimensions of 200x200x200 mm
The specimen is put into the test chamber, clamped with suitable flanges and gaskets, and then a known water pressure is applied on the specimen’s surface for a time as requested by Standard, by using a suitable air compressor (accessory) having at least 5 bar pressure capacity
The water penetrated is measured by breaking the specimen, or by reading the water permeated through the graduated burette fixed on the front panel
Dimension : 1390 x 500 x1380 mm
Weight :150 kg
