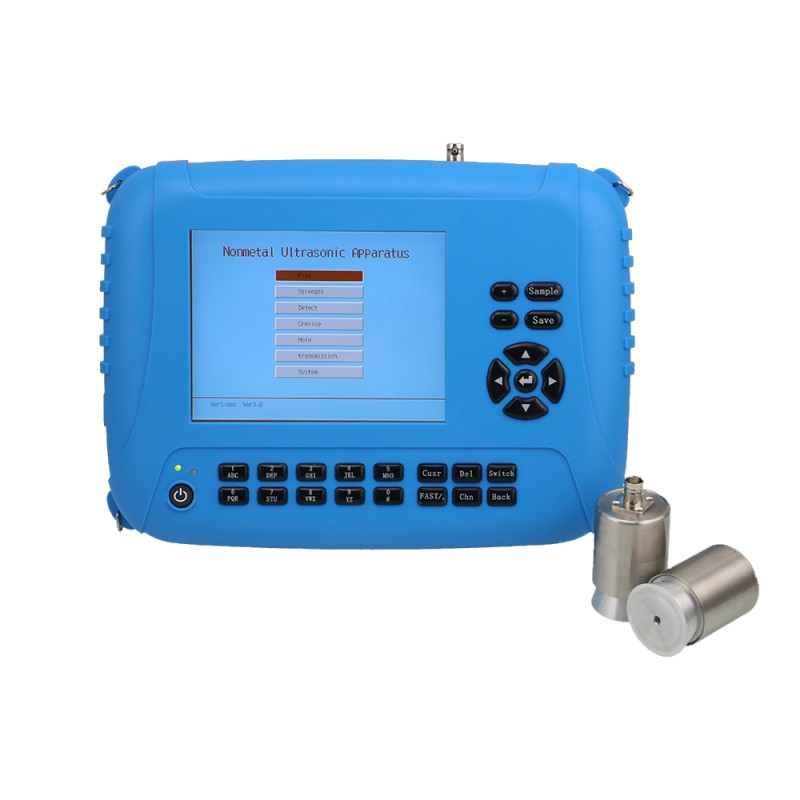

Ultrasonic Tester

  • Product Code: CN368
Ultrasonic Tester
Ultrasonic Tester Ultrasonic Tester Ultrasonic Tester

Uygulama:

Ultrasonic pulse velocity tester is used to determine the presence of faults, voids, cracks etc. within in-situ or pre-cast concrete.

The device gives data concerning the homogeneity of the concrete, by generating pulses of sound into the concrete and measuring the time the sound takes to travel from the transmitter probe to the receiver probe through the material.

  • Assessment of concrete quality
  • Uniformity of concrete
  • Compressive strength of concrete
  • Determination of crack depth and defects in concrete structures
  • Testing of concrete foundation pies,continuity,integrity,weathering assessment,etc.

Standard:

  • EN 12504 section 4, ASTM C597, BS 1881:203, NF P18-418

Feature:

  • High sensitivity, accurate detection
  • Interface USB for PC connection and data transmission
  • Touch screen & easy operation
  • Voice broadcast in real time
  • Connected with additional rebound hammer via wireless Bluetooth
Technical Features CN368
Display True color TFT display
Channel Double channel
Amplifier bandwidth (Hr) 5-500000
Sound timing accuracy (ps) 0.05
Max sampling length (KB) ≤64
Memory 1G (Built-in) + 1G (U disk)
Receive sensitivity(µv) ≤ 30pv
Amplifier pin 82 dB
Sampling Period(ps) 0.05-6.4,8 levels adjustable
Emission voltage (V) 65,125,250,500,1000 optional
Trigger mode Continuous Trigger, External Trigger
Amplitude resolution 0.39%
External connect with rebound hammer Yes
Power supply Built-in high-performance lithium battery, continuous working for 6 hours External high-performance lithium battery, continuous working for 6 hours (optional) DC 12V AC 100V-240V, 50/60HZ
Operating Temperature -10 - +40°C
