Ultrasonic Tester (High Performance)

  • Product Code: CN372
Ultrasonic Tester (High Performance)
Ultrasonic Tester (High Performance) Ultrasonic Tester (High Performance)

Standards: EN 12504: part 4, BS 1881:203, ASTM C597, NF P18-418

Main Features

- Touch screen LCD display 800x480 pixel.

- Windows operating system like a standard PC.

- Flash memory 128Mb, expandable with SD card to
illimited memory.

- Time measuring from 0 to 9999,9 μS resolution.

- Possibility to combine the ultrasonic measurement with rebound index (SonRed method).

The standard appliance includes:
Instrument in the basic configuration (ARM Cortex-AS 400MHz, 128 MB Flash Memory, 128 MB Ram) in a practical and elegant palmer container.
Two 55 kHz probes with connecting cables.

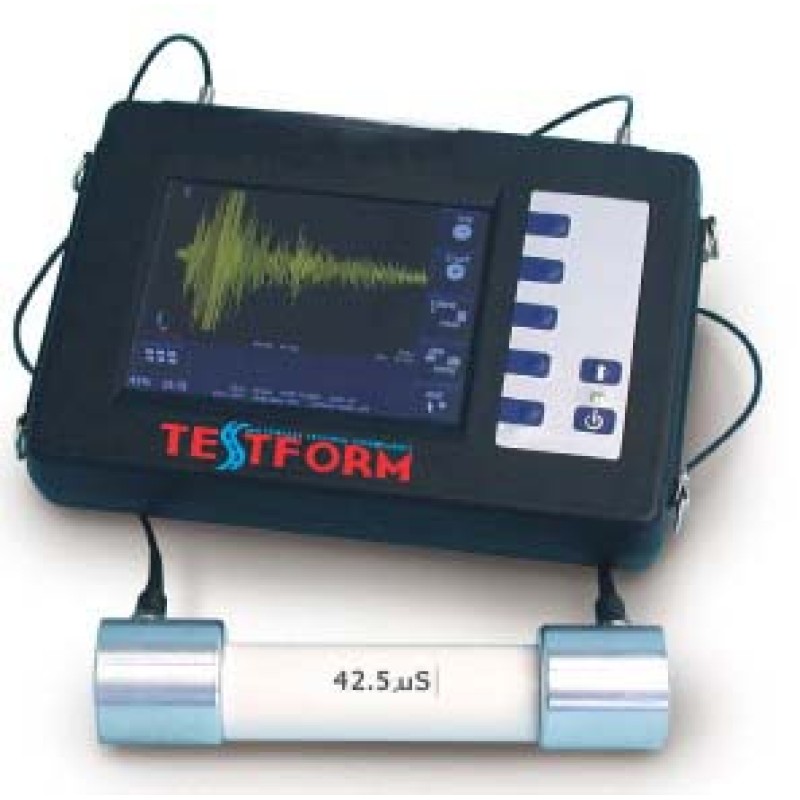

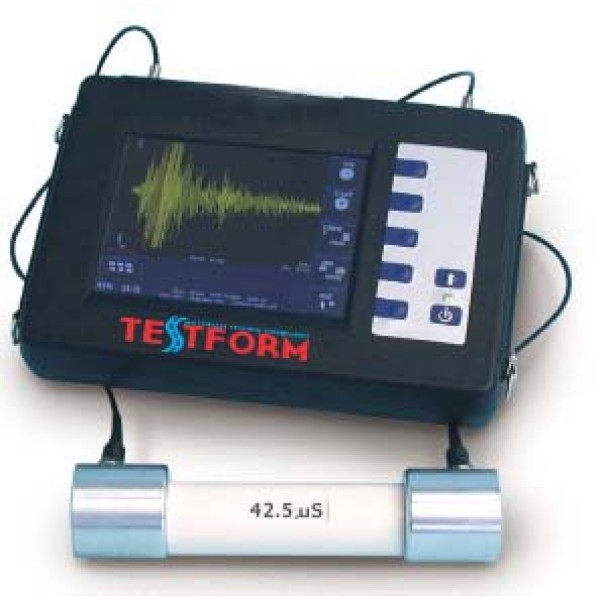

Calibrating cylinder and contact paste
Strong anti shock case holding the instrument and the accessories.
Battery pack Li-Ion 11.1V 3000mA.h
External feeder 230V/24V and battery charger
Dimensions: 400x300x180 mm
Weight: 3 kg approx.
