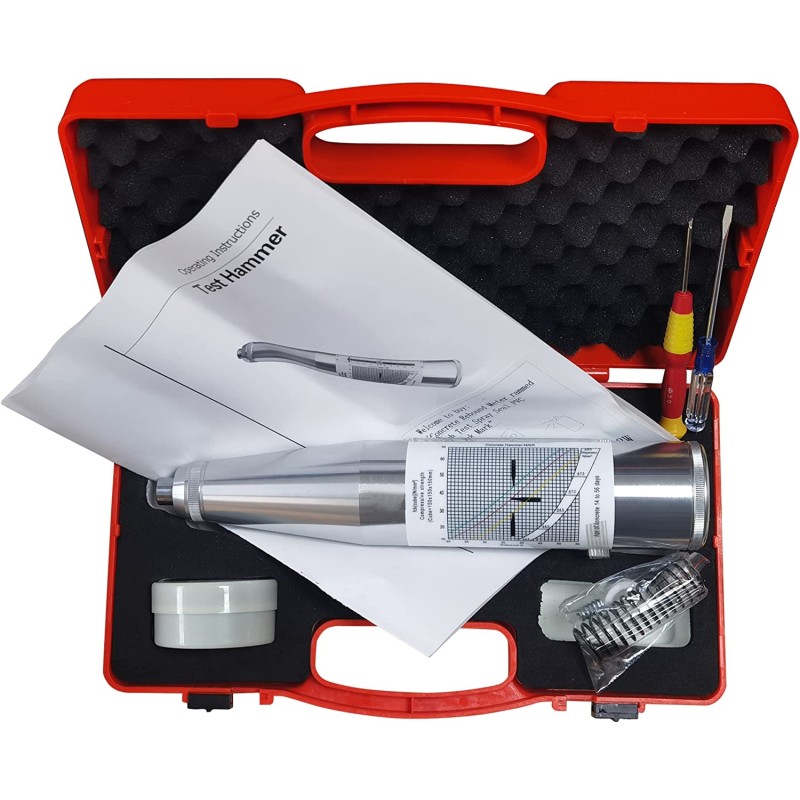

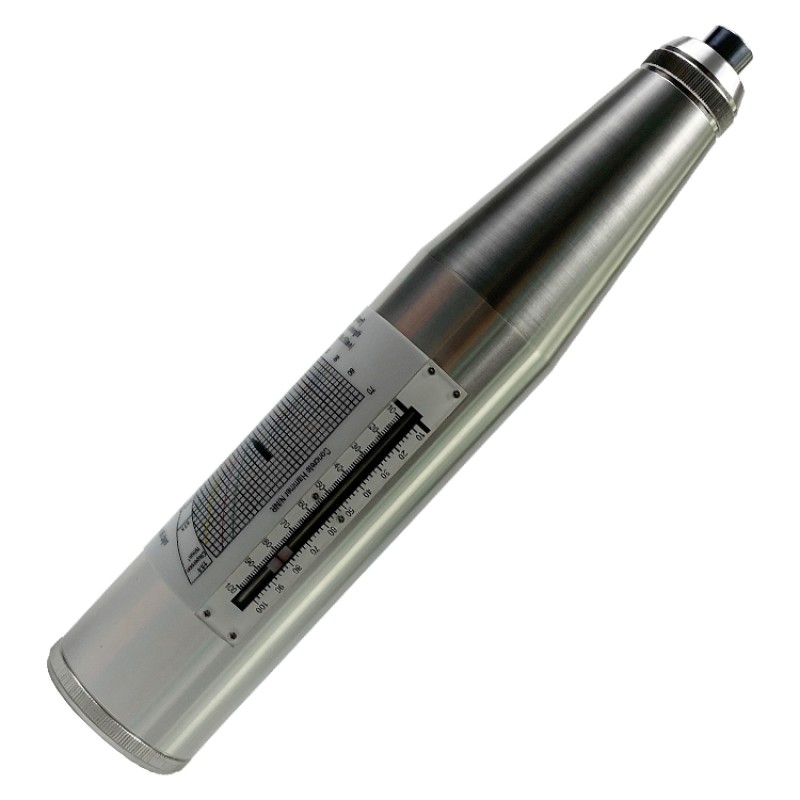

Concrete Test Hammer - Mechanic Type, Schmidt, Type N, Portable Mechanical Concrete Rebound Hammer Tester, Concrete Compressive Strength Tester, NDT Resiliometer Schmidt Hammer

Standard: EN 12504-2, BS 1881:202, ASTM C805

Application:

CN500 Concrete rebound hammer is a classic measuring method .non-destructive test of the compressive strength of concrete construction.

A concrete test hammer is applied to test the compressive strength of building concrete components, bridges, and so on

Advantage:

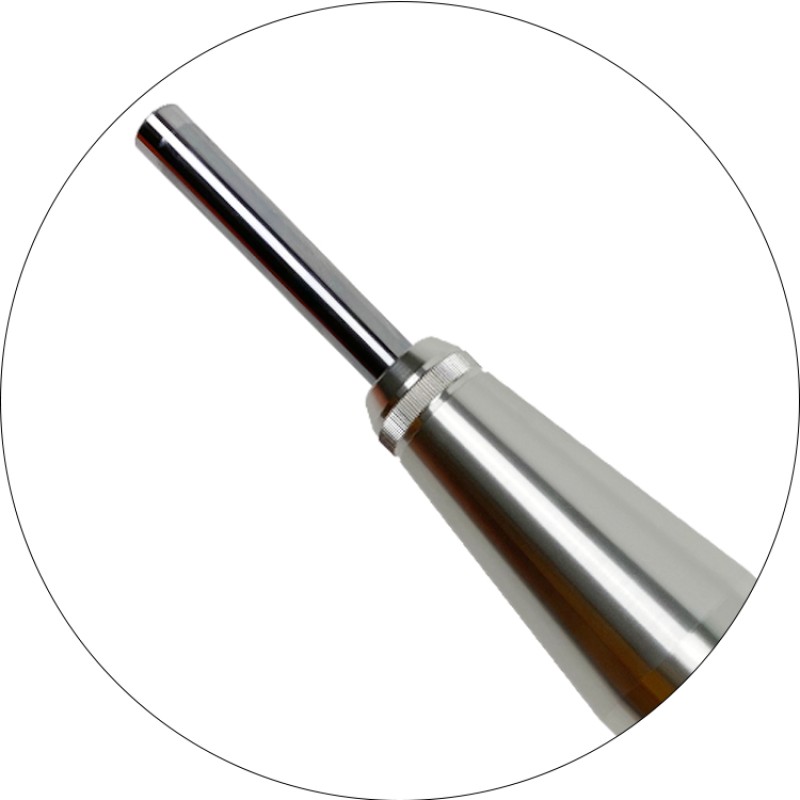

The center rod is made from a high-accuracy and durable resistance materials
The shell is made from high Aluminum or high polymer material in order to perfectly protect the instrument from damage and extend its useful life.

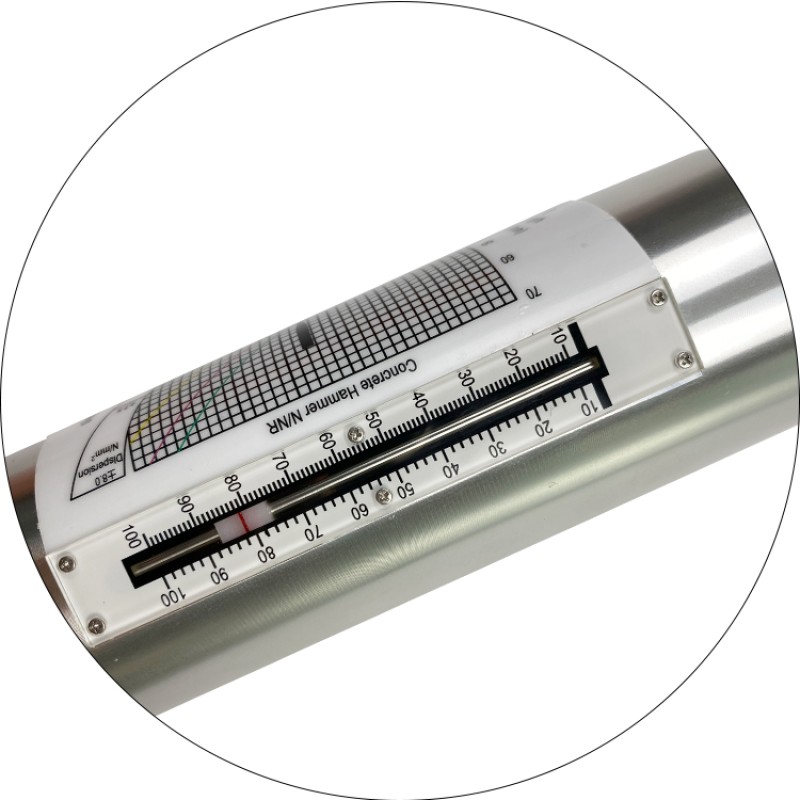

The pointer slider is an outside structure, its friction can be balanced well and easy to be adjusted so that we can make sure that the instrument is accurate.

Specification
Measuring Range	10~60Mpa
Impact energy	2.207±0.1J(0.225Kg.m)
Length of pointer	20.0± 0.2(mm)
Friction force of pointer	0.65± 0.15(N)
Spherical radius of bounce rod end	25± 1.0(mm)
Stiffness of bounce tension spring	785,0± 40.0(N/m)
Impact length of bounce hammer	75± 0.3
Fixed value of steel anvil	80± 2
Working length of bounce tension spring	61.5.0± 0.3(mm)
