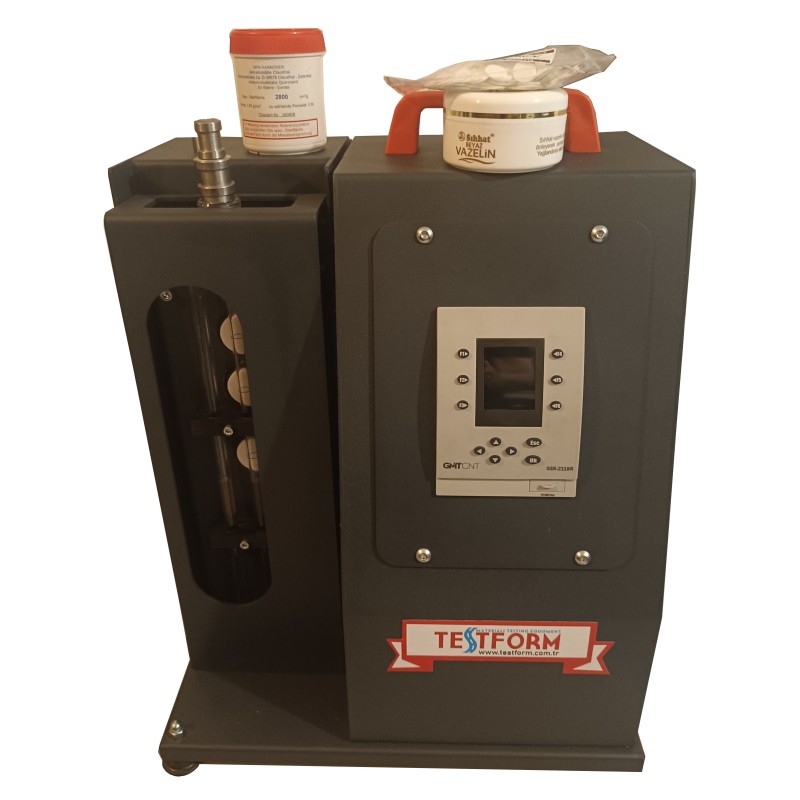

Blaine air permeability (fineness) apparatus - Automatic

  • Product Code: CM011-01
Blaine air permeability (fineness) apparatus - Automatic

Standard :  EN 196/6 - ASTM C204 - AASHTO T153

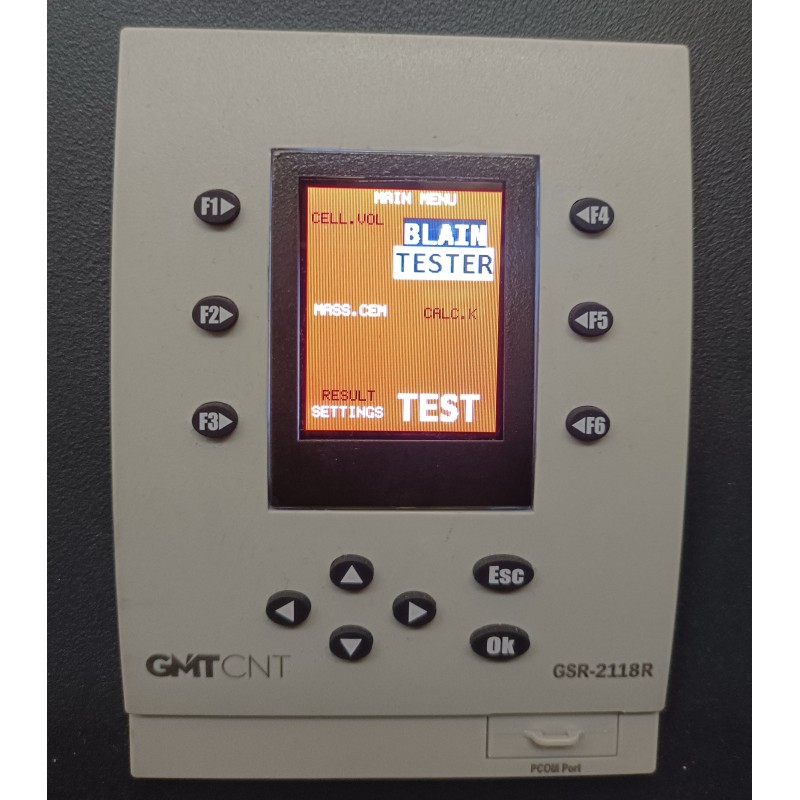

An automatic, microprocessor-controlled analyzer for measurement of the specific surface (Blaine value) of powders.
This device operates with 1 or 2 measuring cells. After entry of test-specific sample data into the controller, the test is completely automatically carried out and evaluated. The device has an interface for a generally commercially available printer. Scope of equipment delivered: automatic air permeability tester, 1 bottle of fill oil,
500 ea. round filters (diam. 41 mm),
100 ea. dust filters (diam. 13 mm),
1 ea. Tamper





Dimensions: 200x160x400 mm





Weight: 12 Kg
