Climatic Test Chamber - Capacity : 1000 Liter

  • Product Code: CL-1000
Climatic Test Chamber - Capacity : 1000 Liter
Climatic Test Chamber - Capacity : 1000 Liter

CL Test Cabinets are designed to stimulate real climate conditions by controlling temperature, humidity, day and night light cycles. The temperature and humidity control range of the CL Test Cabinets allows a number of tests to be performed in different sectors. However, stability, artificial aging, storage and shelf life tests can also be done easily. The excellent design of the device allows CL series devices to be used in many sectors;



  • Electronics Industry, Automotive Industry,
  • Automotive Supply Industry,
  • Chemical Industry,
  • Plastic Industry,
  • Textile Industry,
  • Pharmaceutical Industry,
  • Food industry,
  • Communication Industry,
  • Aircraft and Aviation Industry,
  • Building Materials Industry,
  • Military Equipment and Weapon Industry,


In order to ensure maximum durability and reliability, the most appropriate materials for internal and external construction are used. The cell is made of Stainless Steel and the outer body is made of epoxy-painted galvanized steel to be unaffected by high humidity.



Inside the door, there are enough power lamps protected by heat and refractory glass, providing Daylight to the specimens. Glass Metal The door allows observation of samples without affecting the humidity and temperature values ​​in the cell. When cold and hot test temperatures are considered, insulation is of great importance for product efficiency. The isolation of CL Test Cabinets is provided by high density polyurethane injected.



Humidity is provided by a humidity generator and is measured by the humidity sensor inside the cell. Nude on this

most precisely measured. The temperature is controlled by PID, humidification and cooling proportional control system.



In addition to the diagnostic system, there is an adjustable safety thermostat for heating.

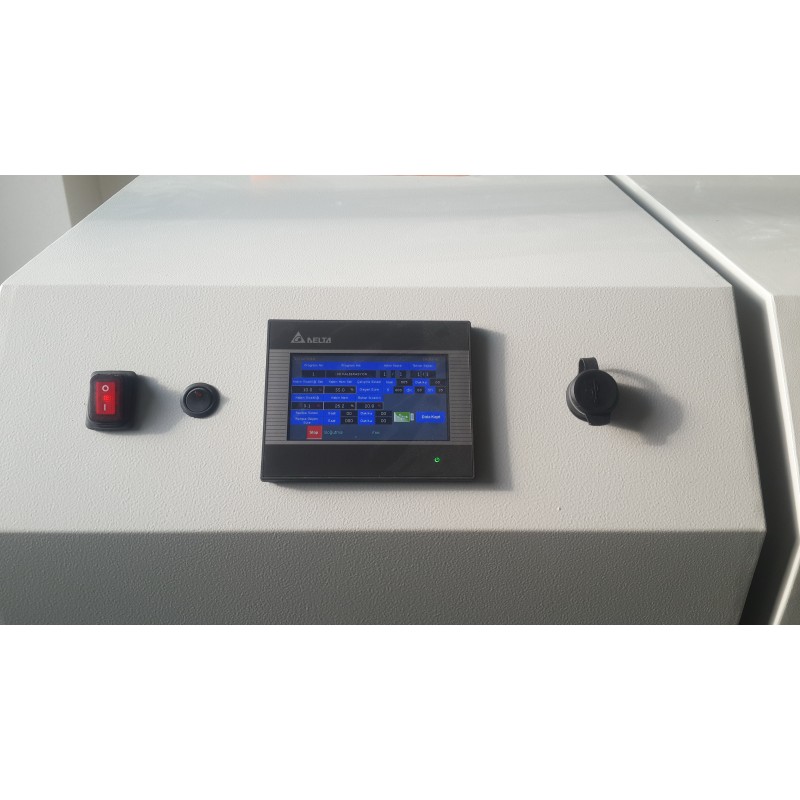

There is a 128 × 64 pixel touch screen on the user panel of the device. Strong air circulation provides stability with very good temperature and humidity distribution, even at low temperatures. After the door is opened and closed, there is a rapid recovery period.



CL Test Cabinets are equipped with an advanced microprocessor control system.



Program memory: There are ten program memories in the device.

The CL series Test Cabinets can be connected to a computer via RS 232 connection, which is available on request.

In addition, the coolant gas and insulation material used in the CL Test Cabinets is environmentally friendly and free of CFCs.

Model CL-1000
Temperature Working Range -30 °C / + 60 °C
Temperature Setting and Read Sensitivity 0.1 °C  %1 Rh
Humidity Operating Sensitivity %5 Rh
Maximum Light Intensity 12,000 lux
Lighting Timer 0 - 999 hours 59 minutes + indefinite operation
Program Repeat Number 1-99
Available Volume, Liters 882 lt.
Number of Shelves (Standard / Maximum) 4/12
Inner Surface Structure Stainless steel
External Surface Structure Outer Surface Structure Epoxy painted Galvanized Steel
Internal Dimension (WxLxH) cm 70x180x80
Outside Dimension (WxLxH) cm 85x270x97
Installed Power 3800 V
Power Ratings 380 V 50Hz
