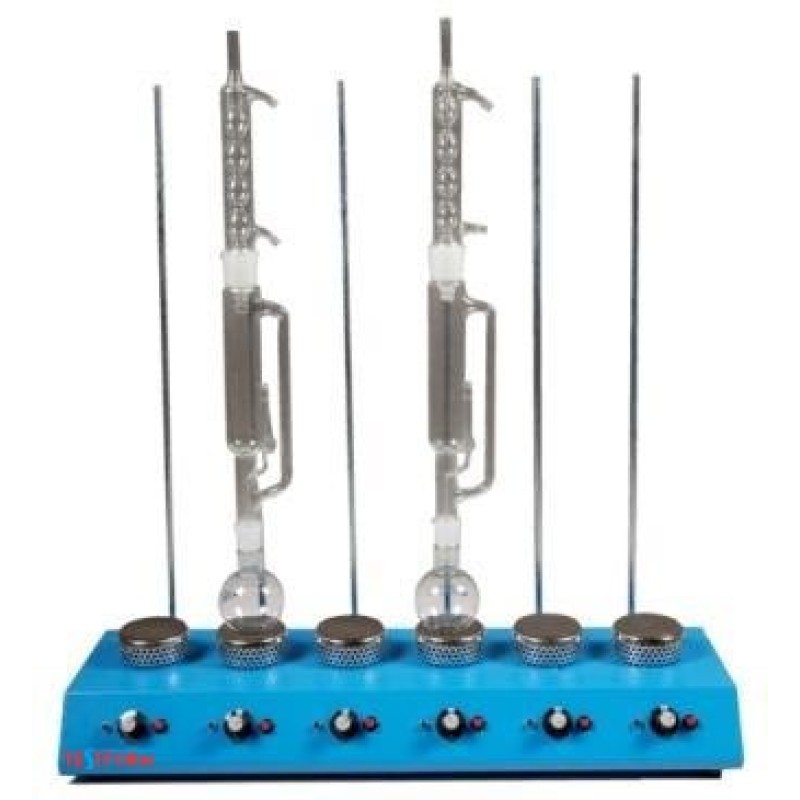

Soxhlet Extraction Apparatus with 6 Place, Heating Mantle Type

The control panel of each heating system is located on the front panel of the device separately.

On each control panel of the device; There are illuminated on / off switch, electronic position heat switch and heat signal lamp.

The maximum working temperature of the device is about 300 ° C.

The heaters of the device are 90 mm and 140 mm.

The device has a complete monoblock body and the heater systems are gathered on one surface.

There is a perforated insulation sheet that prevents the passage of temperature between the heaters of the device and the body.

Behind the heater systems of the device; The soxhlet balloon extractor cooler system has a specially designed, staggered rod assembly that ensures proper attachment.

There are carrier rubber feet on the bottom of the device.

The body of the device is made of DKP sheet metal and is painted with an electrostatic furnace against mold and rust.

With the device, the soxhlet group consisting of 250 ml and 500 ml balloon excavator coolant, fasteners consisting of clamps and nivo and the coolant hose are provided to attach the assembly to the stative, stand.

The device is 220 volts 50hz. It works with city current
