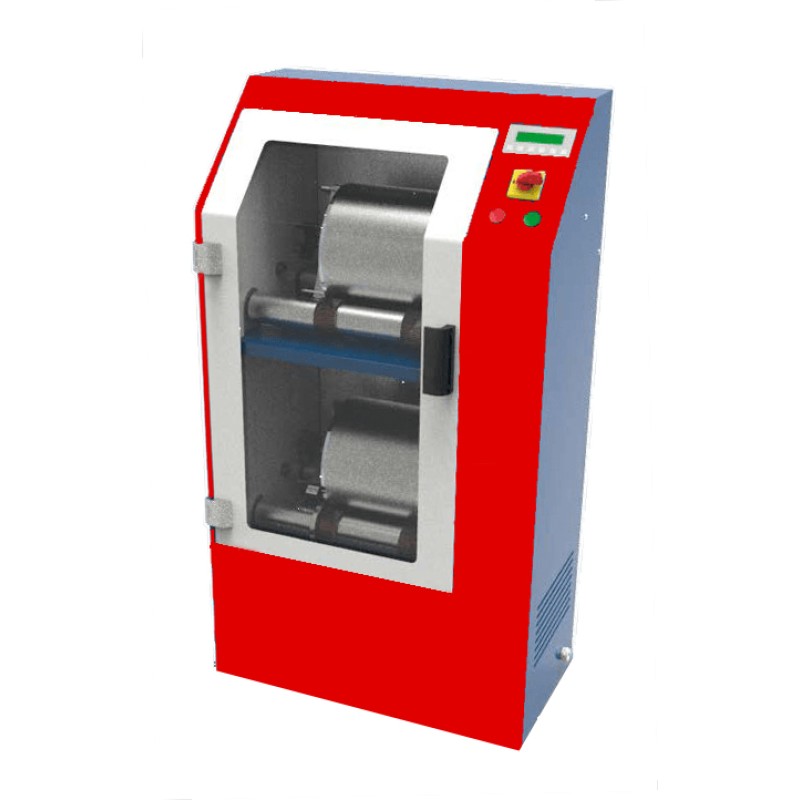

Micro-Deval Testing Machine - 2 Cylinders, ASTM

ASTM D6928, D7428, AASHTO T237, TEXAS 845-49-40, ONTARIO LS-618

MAIN FEATURES:

Used to determine the abrasion resistance and durability of mineral aggregates.

The machine is equipped with an electronic controller with dedicated sensors to accurately track the test time, the total number of revolutions, and the number of revolutions per minute.

The Micro-Deval is made up of a robust steel frame that can receive 2 stainless steel jars.

The jars are made of stainless steel with diameter and height in accordance with standards (diameter between 194 and 202 mm and height between 170 and 177 mm) and are supplied with a cover and locking devices.

Power supply: 230V 1ph 50Hz 750W

Dimensions: 570 x 340 x 1000 mm

Weight: 110 kg approx.
