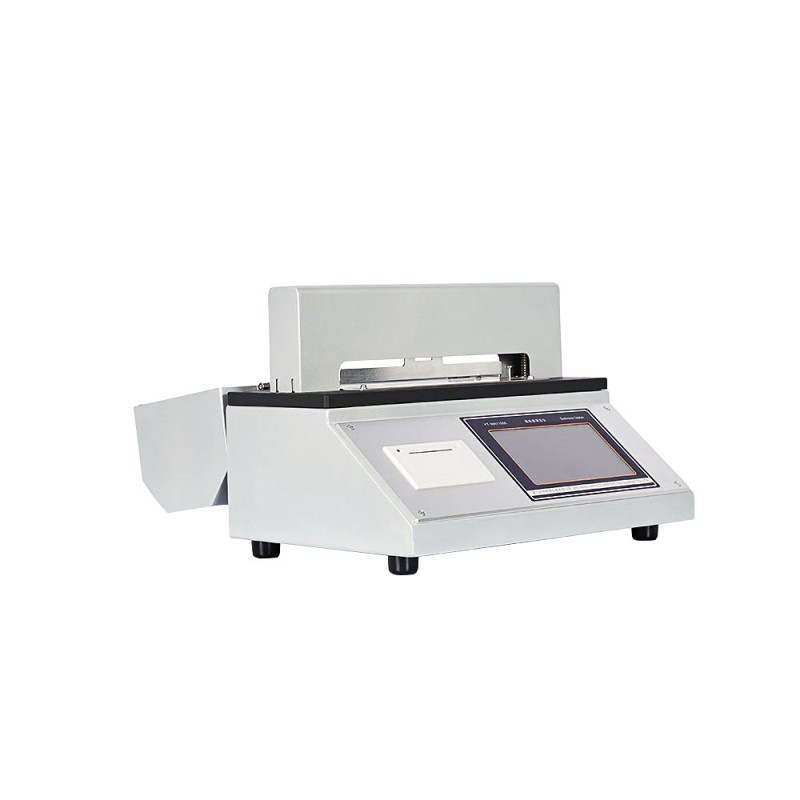

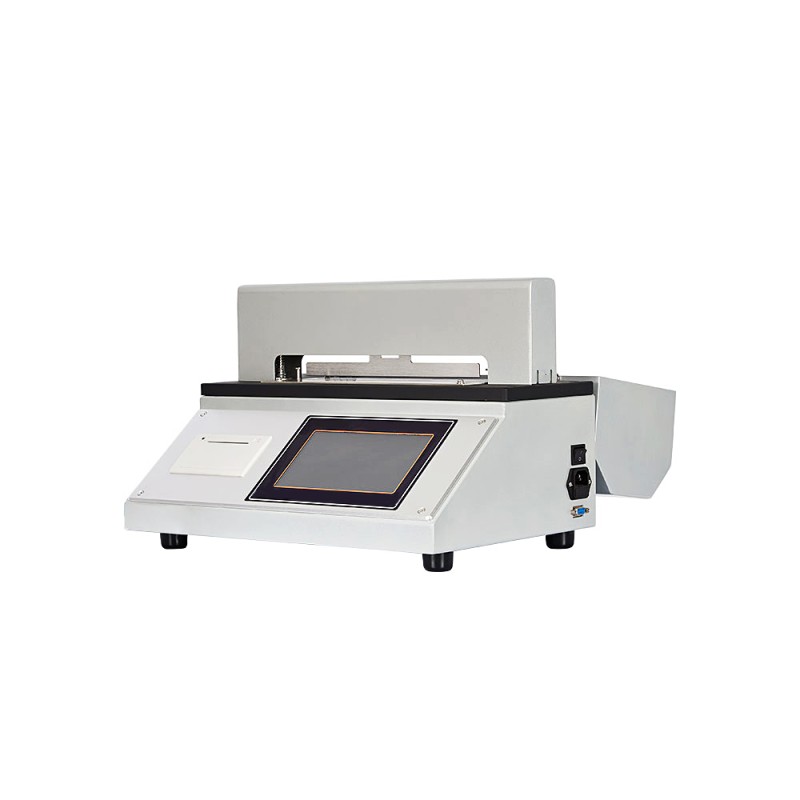

Softness Tester

Product Code: RRY1000

Description

Application Function:

Measuring softness

RRY1000 softness tester is a new type of high-precision intelligent tester carefully and rationally designed with modern mechanical design concepts and microcomputer processing technology. It is an ideal experimental equipment for industries and departments such as papermaking, scientific research and quality inspection.

Application Range:

Toilet paper,tobacco sheets
Fabrics,non-woven fabrics
Fabrics, films, etc.

Standards:

ASTM D2923, ASTM D6828-02, TAPPI T498, INDA IST 90.3, NWSP 090.3.R0 (15)

Product Features:

One-click test, easy to understand
ARM processor improves the response speed of the instrument, and calculates data accurately and quickly
Real-time display of pressure curve
Sudden power failure data saving function, the data before the power failure is retained after the power is turned on and the test can be continued
Software and hardware over-range to ensure the safety of the sensor
Communication with computer software (purchase separately)

Technical Parameters
Power Supply	AC(100 ~240)V, (50/60)Hz 50W
Working Environment	Temperature(10~35)°C, Humidity≤ 85%
Display	7 inch color touch screen
Measuring range	(10~ 1000)mN
Indication Resolution	0.1mN
Indication error	±1 %(Range 5% ~ 100%)
Total probe stroke	(12±0.5) mm (Process adjustable)
Probe indentation depth	8mm
test speed	1.2±0.012mm/s (72±0.72 mm/min) (1-250 mm/min adjustable)
Specimen table gap width	5/6.35/10/20mm (Four gears adjustable)
Slit parallelism error	≤0.05mm
Probe centering error	≤0.05mm
Print	Built-in thermal printer
Communication Interface	RS232(Default) (USB, WIFI optional)
Dimension	425x290x300 mm
Net Weight	20kg
