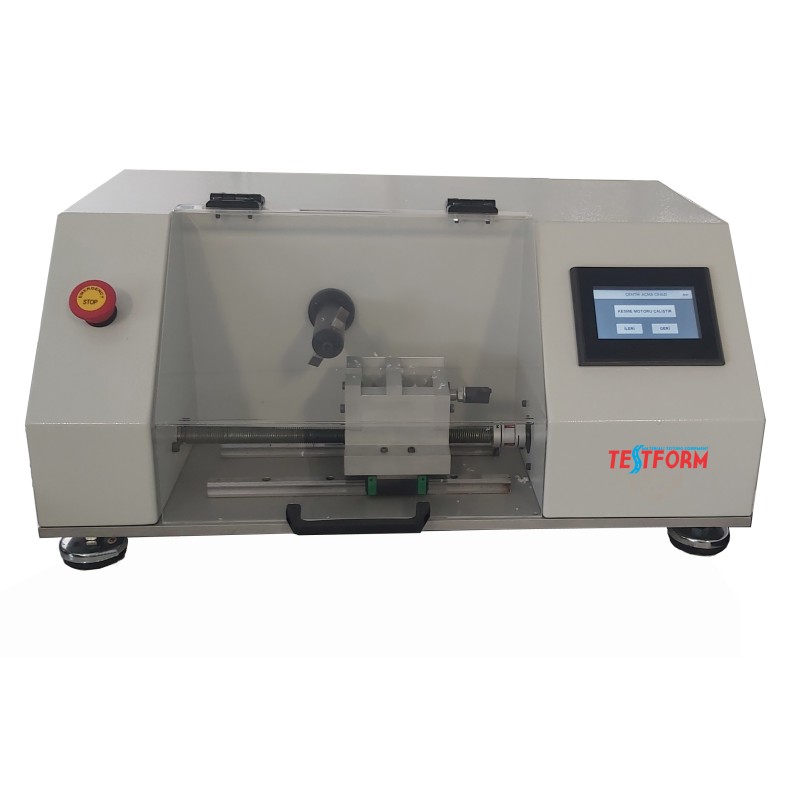

Notch Making Machine for Charpy and Izod impact test

Introduction:

This machine is designed to notch a plastic specimen for Charpy and Izod impact test. It is suitable for notched specimen preparation in laboratories of research institutes and academy, and nonmetallic material manufacturer.

Features:

Application：
To notch a plastic specimen for Charpy or Izod impact test.

Standard:
ISO179, ISO180, ASTM D 256

Technical Specifications:

1. Specimen type: Type1, Type2, Type3, Type4
2. Notch type: A, B, C
3. Tool specifications:
    Type A: 45O + 30' r= 0.25
    Type B: 45O + 30' r= 1
    Type CI: thickness: 2+0.2
    Type CII: thickness: 0.8+0.1
4. Motor speed: n=300r/min
5. Overall dimension(LxWxH): 316x366x450 (mm
