U100 Sampling
Product Code: U100_Sampling_System
Categories:
This equipment is designed for taking samples in clay and other soft formations. Each sample tube is 18" in length and is pushed into the ground using a sliding hammer with a U100 drive head (grip cap) attached.
The drive head contains a globe valve to allow air to be expelled from the top of the sample tube as it is pushed into the ground.
The complete sampling system consists of:

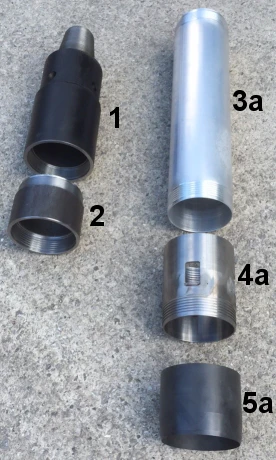

- Drive Head / Grip Head
- Driver Head Adapter (UT100 only)
- Sample Tube (UT100)

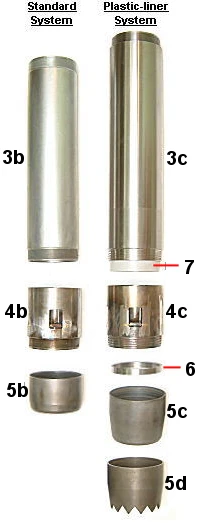

- Sample Tube (U100 Standard system)
- Body Tube (U100 Plastic liner system)
- Core catcher (UT100)
- Core catcher (U100 Standard system)

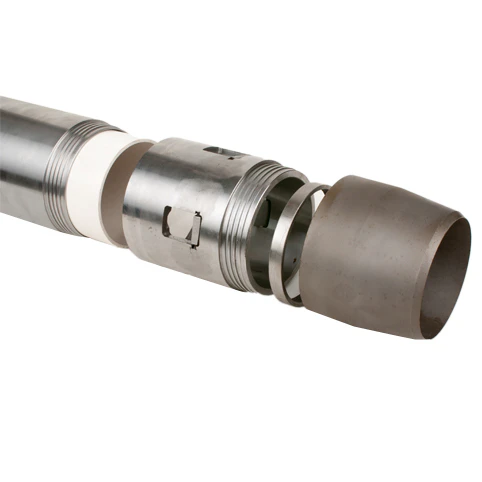

- Core catcher (U100 Plastic liner system)
- Cutting Shoe (UT100)
- Cutting Shoe (U100 Standard system)
- Cutting Shoe (U100 Plastic liner system)
- Cutting Shoe - Notched type (U100 Plastic liner system)
- Spacing Ring (U100 Plastic liner system)
- Plastic liner (U100 Plastic liner system)
| Type | Max Outer Diameter | Min Inner Diameter | Area Ratio |
|---|---|---|---|
| Standard System | 118.6 | 104.40 | 29% |
| Plastic liner System | 123.8 | 101.60 | 48% |
