Water Quality Measurement Set - PH, EC, Salinity, TDS, DO and Temperature, IP67, Handheld

Application

The 86031 combo water quality measurement set device is a water quality measurement set with 3 probes and 3 different inputs. With these probes attached to the device, you can accurately measure pH, conductivity, TDS, salinity, dissolved oxygen and temperature values. You can see all the results of these 3 different probes simultaneously on the device's LCD screen. The TF 86031 water quality measurement device has an IP67 protection class against dust and water splashes.

Features

• The 86031 measurement set is used for measuring in liquids through the probes it contains.
• With the combo water quality measurement set device, you can accurately measure pH, conductivity, salinity, TDS, dissolved oxygen and temperature values.

The biggest feature of this water quality measurement device is that it has 3 probe inputs. The measurement results of 3 different probes are displayed simultaneously on the device's LCD screen.

• The 86031 water quality meter device is an excellent measurement device suitable for use in fish farms, water treatment plants, swimming pools, fresh and seawater, and laboratories.
• As soon as the appropriate probe is attached to the inputs on the top of the device, the device immediately starts the measurement process.

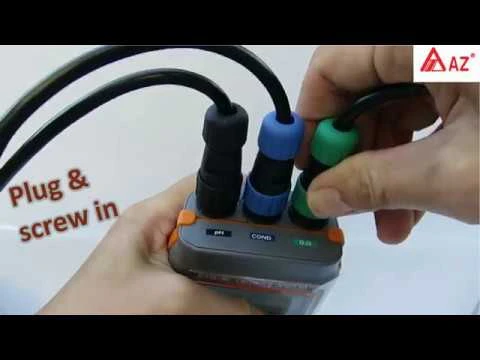

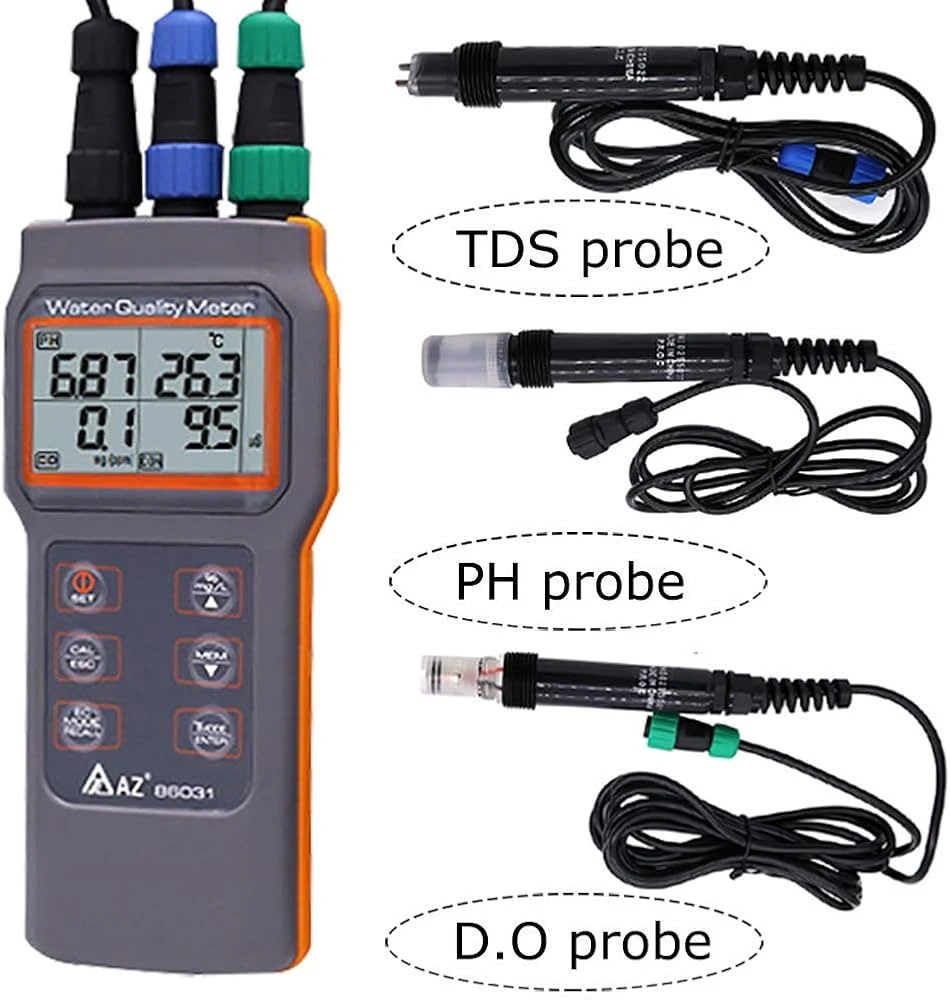

• For easy insertion of probes into appropriate slots, the input slot has both labels (pH, COND, D.O) and colors. These colors are the same as the colors on the probe cables.

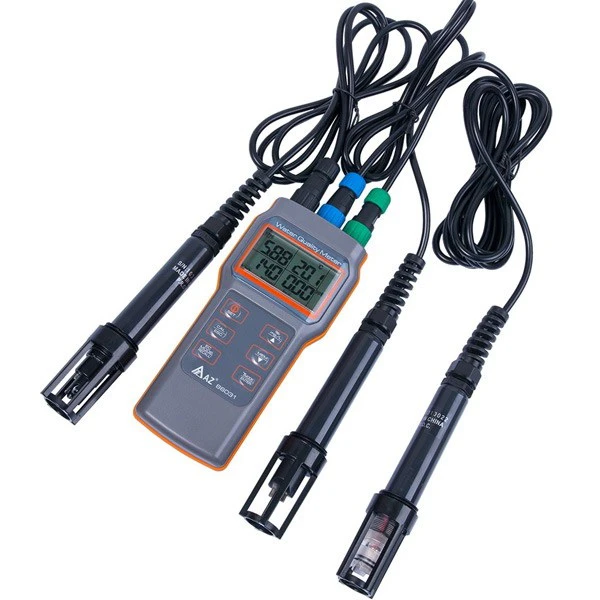

• The length of all probes is 15 cm. The diameter of the oxygen probe is 17 mm, the pH probe is 17 mm, and the conductivity probe is 19.60 mm. The diameter of the protection caps is 23 mm.
• The cable lengths of the probes are; dissolved oxygen probe cable length 280 cm, conductivity probe cable length 135 cm, pH probe cable length 135 cm.
• The device has automatic temperature compensation (ATC) according to the sample being measured.
• This water quality test device has an IP67 protection class against water and dust splashes.
• It has multi-point calibration feature. pH calibration from 3 points, dissolved oxygen from 1 point, and conductivity calibration from 4 points are performed.
• The 86031 water quality meter device has a function to store and recall 99 measurements.
• "COND" represents conductivity, "D.O" represents dissolved oxygen, and "pH" represents pH.
• With the "TMODE/ENTER" button, you can see the temperature measurements of the probes. When you press the button, the probe label that blinks on the LCD screen shows which probe's temperature measurement is being taken.
• With the "MEM" button, you can save your measurements to the device's memory.
• With the "EC MODE/RECALL" button, you can switch between conductivity, salinity and TDS measurement units. You can also see the values you have stored in this section. You can switch between records with the up and down arrow keys.
• With the "CAL" button, you can put the device into calibration mode.
• With the "% mg/L" button, you can easily switch between dissolved oxygen measurement units.
• With the "SET" button, you can turn the device on and off. By holding down the button, you can access the device's settings section.
• Temperature measurement units can be changed to °C / °F.
• It has an auto-off function after 1 hour of inactivity.

Technical Specifications
