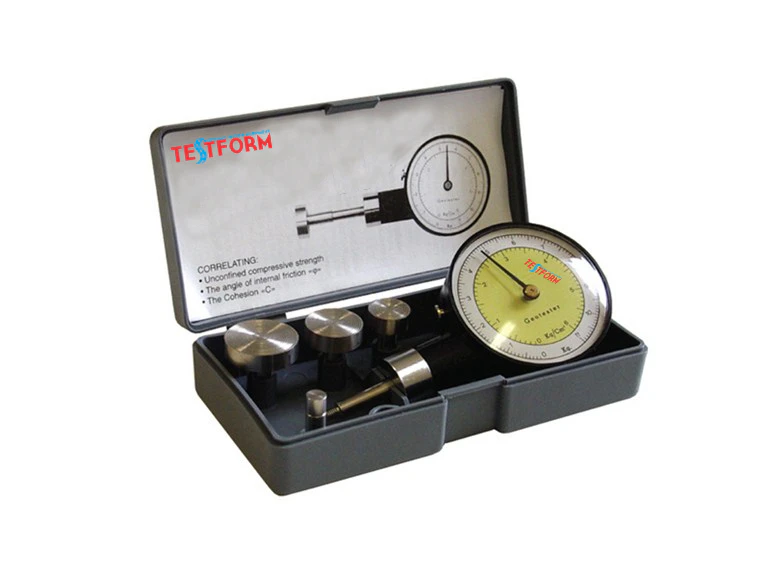

Dial penetrometer, together with 5 loading plates
Product Code: TS068
Categories:
Standard: ASTM D 2573-94
Compression force can be read directly on the dial.
The dial penetrometer is a useful device for the rapid determination of the soil's unconfined compressive strength, expressed in kg/cm².
Graduated scale 0 - 6 kgf/cm².
In addition to the standard type with 6.4 mm diameter, the device comes with 4 load plates (10, 15, 20, 25 mm diameter) for the indirect determination of the friction angle in non-cohesive soils.
Dimensions: 150 x 80 x 45 (h) mm
Weight: 400 g
