Digital Rockwell Hardness Testing Device
Product Code: LHRS-150
Categories:
Main Features
- Traditional weight system
- Digital, multi-functional LCD display
- Electric load. Automatic loading and unloading
- 12 Rockwell Scales, Conversion to Vickers, Brinell
- Meets or exceeds GB/T230.2, ISO 6508-2, ASTM E18 standards
- Optional accessories for plastic Rockwell testing
- Built-in printer for PC connection and data output
Application Areas
Quality control of products in industrial production, machining technology.
Testing the hardness of iron and non-ferrous metals such as hardened steel, tempered steel, carbide materials, aluminum alloy, copper, hearing steel, etc.
Technical Specifications
| Hardness Measurement Range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL50-115 HRM:50-115 HRR:50-115 |
| Preliminary Load Force | 10kgf (98.07N) |
| Test Force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Stability | 0.1 HR |
| Time | 0-60s |
| Data Output | Built-in Printer, RS232 |
| Maximum Sample Height | 165mm |
| Power | AC220V+5%, 50-60HZ |
| External Dimensions | 520*240*700mm |
| Net Weight | About 80Kg |

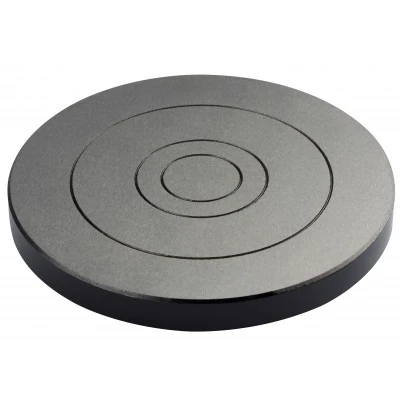

| Standard Accessories | İzaçar*2, Hardness Block*3, Test platform*3, Weight*3, Power Cable *1, RS232 Cable *1 Printer paper* 1, Manual, Warranty Certificate |
