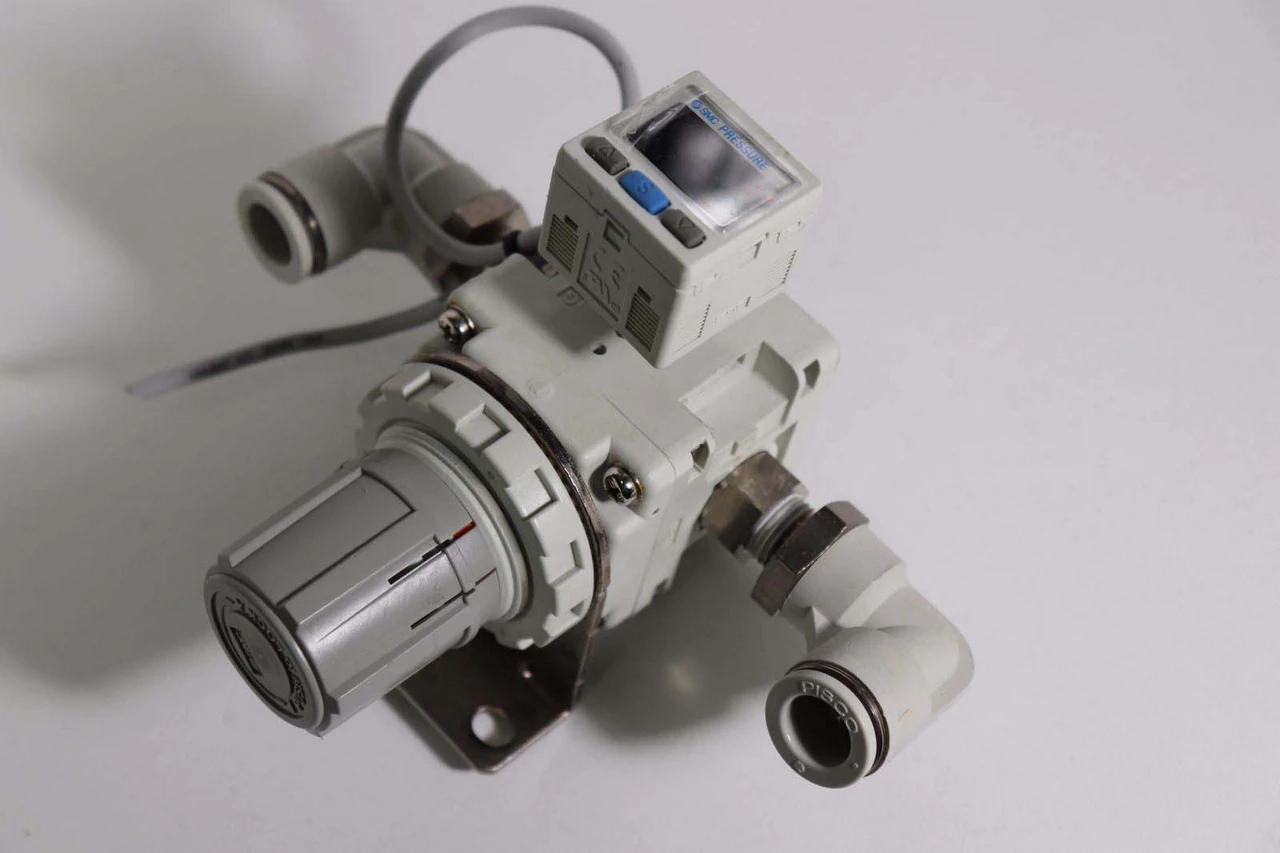

Vacuum Regulator System
Product Code: AB065-12
Categories:
Standard Features for 10/20 Series Vacuum Regulators
| Feature | IRV10 | IRV20 |
|---|---|---|
| Fluid | Air | |
| Adjustable pressure range (Note 1) | -100 to -1.3 kPa | |
| Atmospheric consumption (Note 2) | 0.6 to 140 ℓ/min (ANR) or less | |
| Sensitivity | 0.13 kPa or less | |
| Ambient and fluid temperature | 5 to 60°C | |
| VAC side pipe O.D. | 6.8 | 6.8, 10 |
| SET side pipe fitting O.D. | 1/4, 5/16 | 1/4, 5/16, 3/8 |
| Weight (Without standard connections) | 135 g (IRV10-C08) | 250 g (IRV20-C08) |
| Weight (Single-side connections) | 125 g (IRV10-C08) | 250 g (IRV20A-C08) |
Note 1: May vary depending on the pressure on the vacuum pump side.
Note 2: Continuously drawing air from the atmosphere.
