Bending tensile strength determination (bending breaking load) device - Digital

Standards

EN 100, EN ISO 10545-4, ASTM C473-16, DIN 1030

Definition

It is an electronic device for measuring the breaking flexural strength of unfired ceramic samples according to TS EN ISO 10545-4 standard.

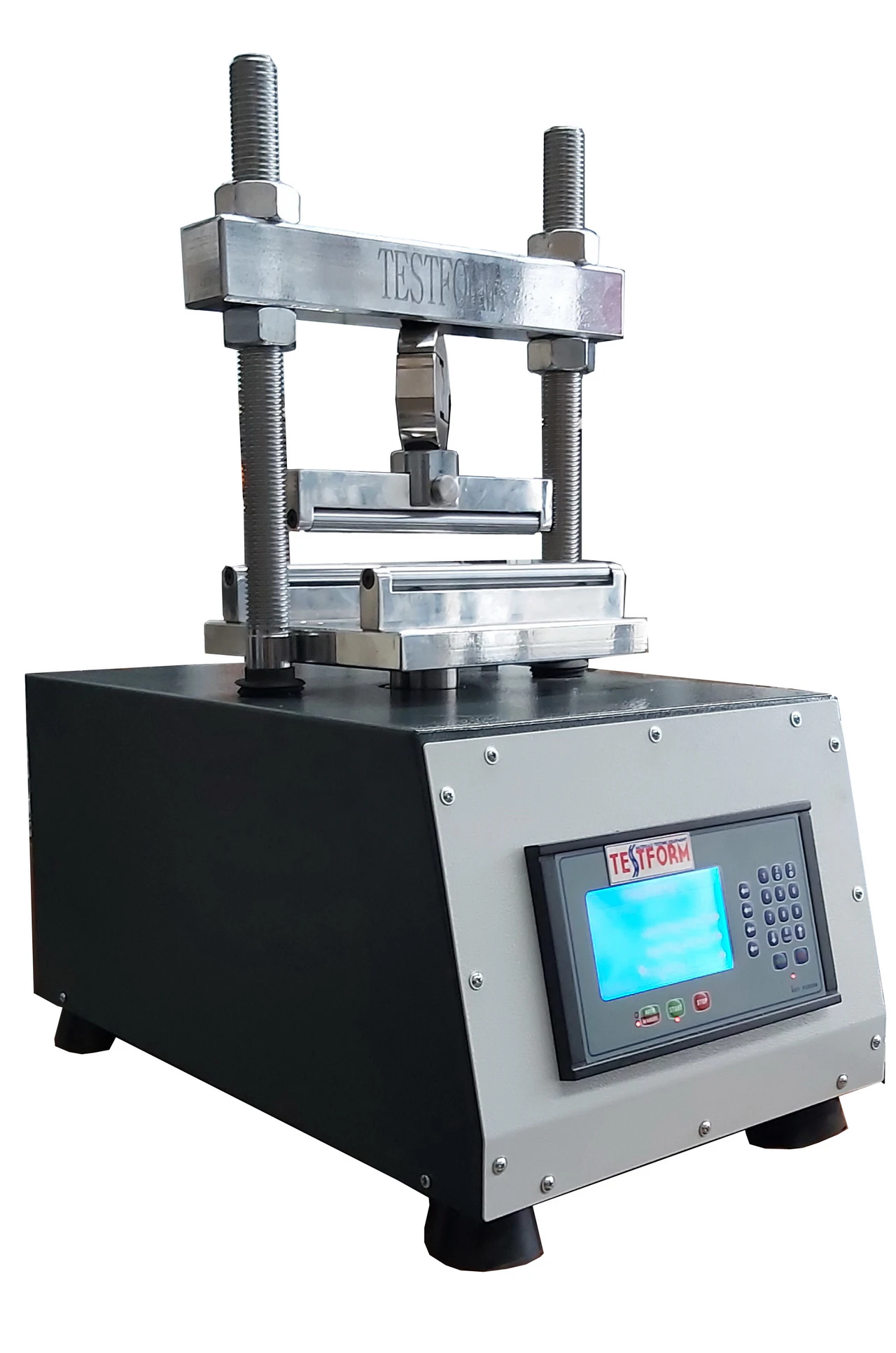

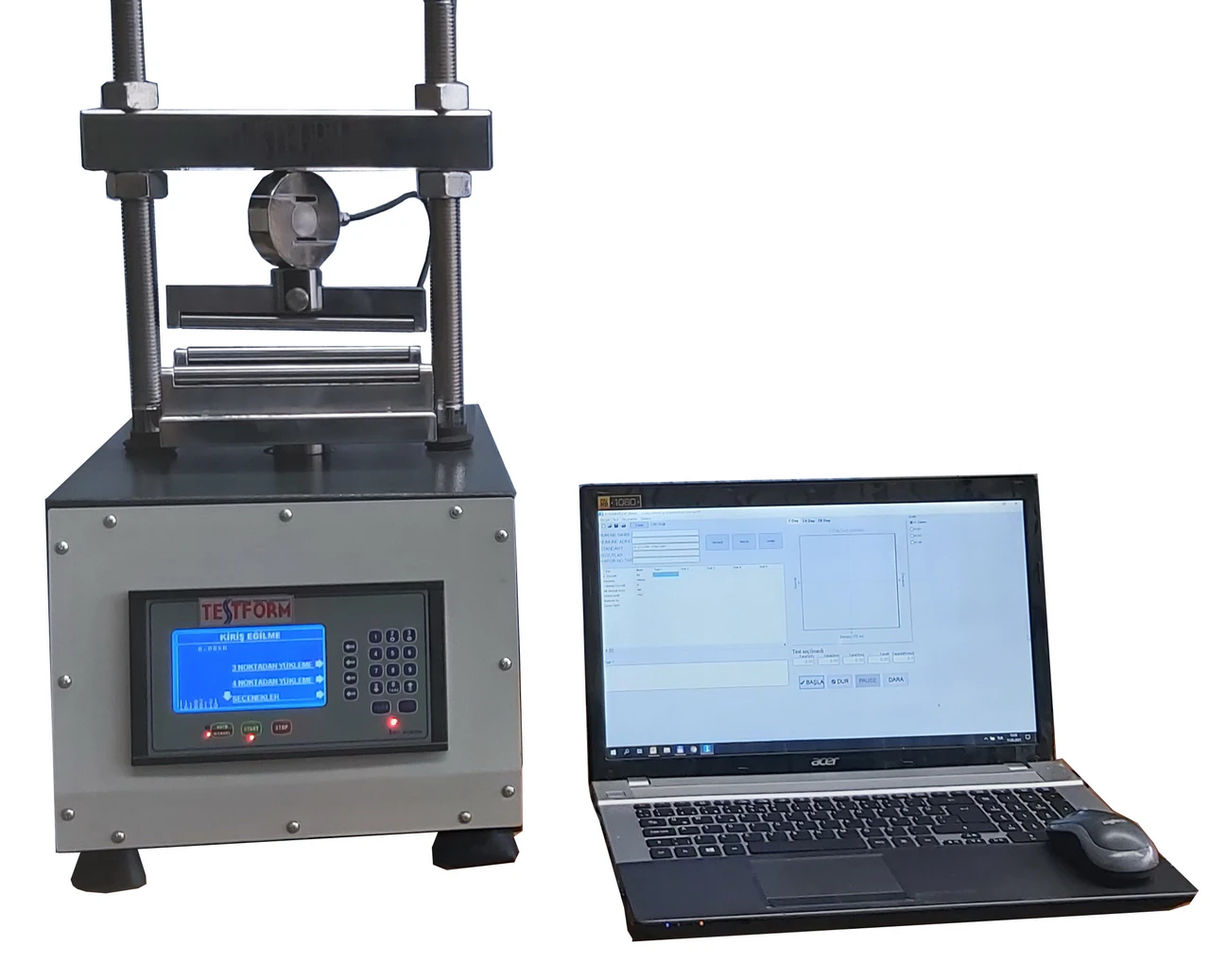

The device consists of a frame fixed to an electronic load cell and consists of lower and upper supports according to the type of sample.

The lower part where the lower supports are located is motorized and applies the load upward during the working movement.

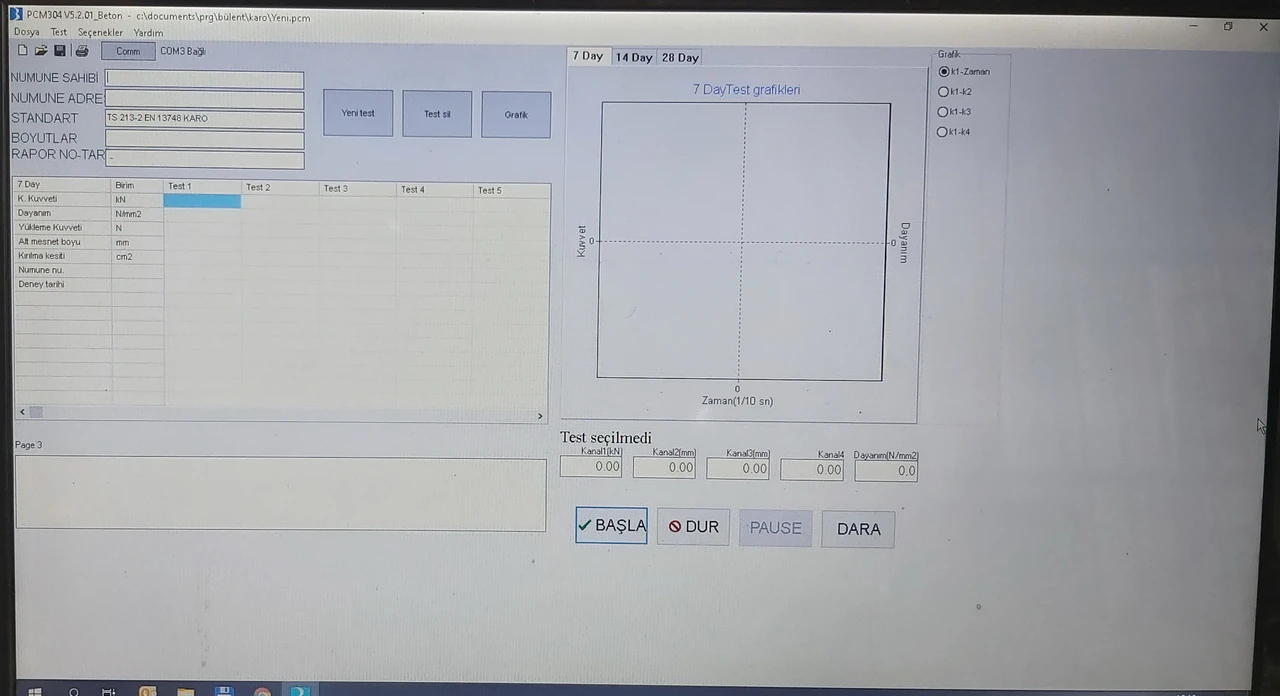

The increase in load is electronically visible.

When the sample breaks, the test automatically ends.

The devices allow tests to be carried out according to other standards depending on the attached accessories.

Technical Specifications

• Test Sample: Min 50x50, Max 200x200 mm
• Load Cell: 1000 kg
• Max Load Application: 1000 Kg
• Sensitivity: 10 g
• Load Reading on Display: Kg
• Electro-mechanical operation
• Adjustable speed
• Electricity: 230 V - 50 Hz
