Cross Hatch Adhesion Test Device

Application:

This device is commonly used to evaluate the adhesion of various coatings. It is mounted on a handle with a high precision machined wheel offering 6 or 11 cutting blades with various spacings. The test is performed by making 2 series of cross-cuts at right angles. The resulting grids are either brushed or cleaned with an adhesive tape. Depending on the coating thickness and relevant spacings, the results can be classified using a standard scale. It is a durable tool with 8 cutting edges and comfortable wooden handles.

When applied to multi-layer systems, the resistance of individual coating layers to separation from each other can be evaluated.

Additionally, all Biuged cross hatch test devices are designed with a rotatable cutter holder; this is very useful for applying equal force when cutting coatings on curved or uneven surfaces and cutting through to the substrate.

Standards:

• BS 3900 E6
• BS/EN ISO 2409
• ASTM D 3359 D 3302

Features:

• Eight working blades: When the blade edge is not sharp enough, users can rotate it to get a new blade by loosening the boat-type nut and top push screw.
• Multi-cut blade spacing: 1mm/2mm/3mm
• Number of squares: 25 squares / 100 squares

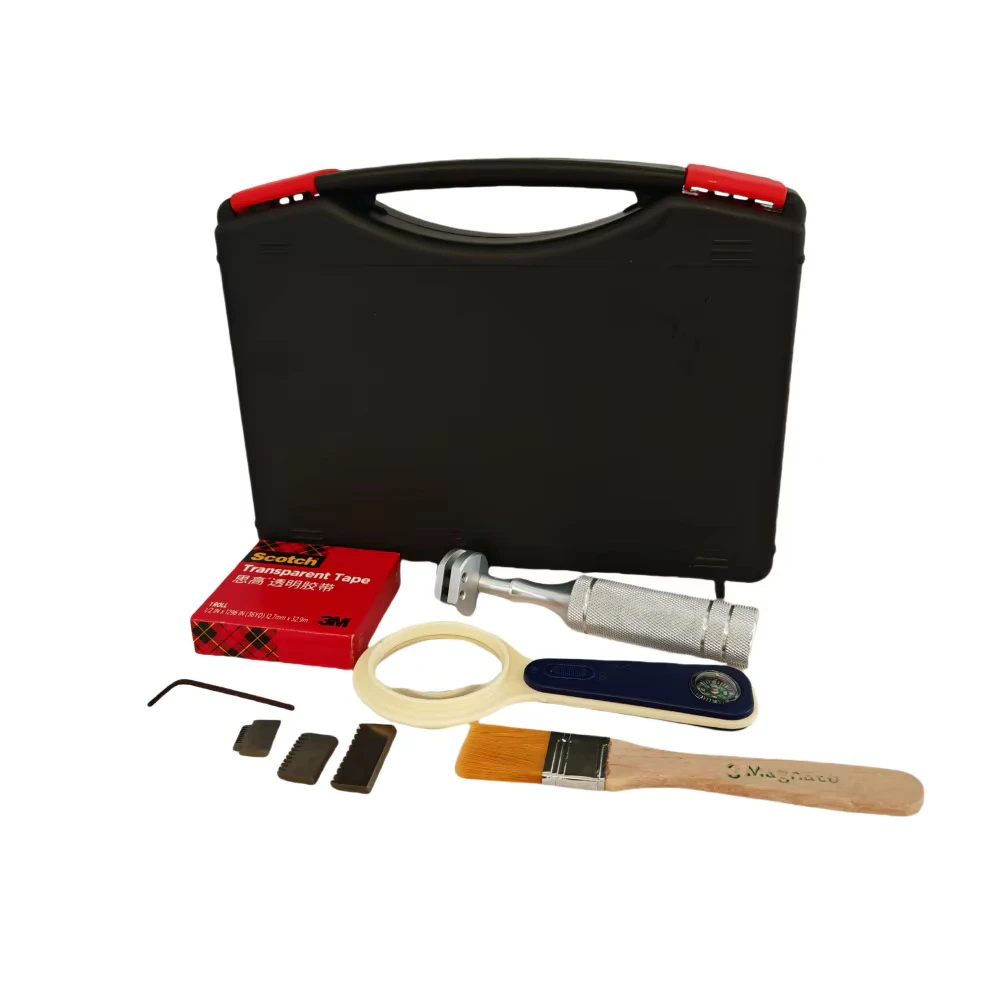

• Standard Packing List
  • Carrying case
  • Cross Hatch Cutter and Handle
  • 1 roll of 3M Scotch transparent tape
  • Brush
  • Magnifier
  • Calibration Certificate
