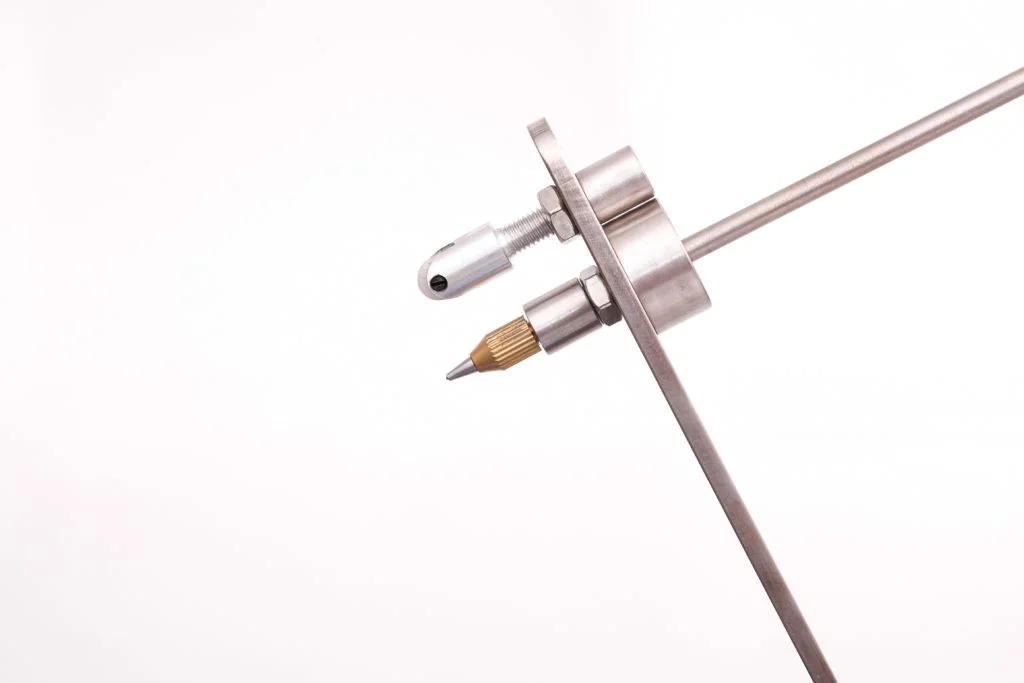

Automatic Drawing Test Device
Product Code: ZL-2302B
Categories:
Application
The scratch test device is used to measure the scratch performance of single-layer insulated color-coated sheets for quality evaluation purposes. The scratch resistance of the coating can be determined by evaluating whether the coating is scratched by tungsten carbide hemispherical contact points of a specific weight or whether the coating is scratched under maximum load. This device is mainly used in surface coatings of products such as roller coating, CAN ink, 3C ink, UV ink, etc.
Standard
- ISO 1518
- BS 3900
- EN 13523-12
- EN 61558
- ASTM D2197-2016
- GB4943, GB4760.1
- IEC 60335
- ASTM D2197-2016
Features
- Touchscreen allows parameters to be adjusted directly on the screen, making it easy to use.
- Can display test results on the screen in real time and directly show the "OK" or "NG" status.
- Adjustable working platform - more convenient
- Displays test results on a conductive surface
- High hardness scribing tool - more durable
- Special sample holder design, easy to use
Technical Parameters
| Scratch speed | 0~40 mm/s (adjustable) |
| Travel distance | 0-65 mm (adjustable) |
| Needle tip pressure | 10 ± 0.5 N |
| Weight | 50 g~2500 g (optional) |
| Scratch pen material | Tungsten carbide hemispherical, radius 0.25 ± 0.02 mm (or custom-made) |
| Metal test plate size | 100 × 150 × 0.2 mm (length * width * height) |
| Machine size | 500 * 400 * 450 mm |
| Machine weight | Approx. 22 kg |
| Power supply | 220 V/50 Hz or 110 V/60 Hz |
